Product: CCS-50-12 (Light Socket Charger) /

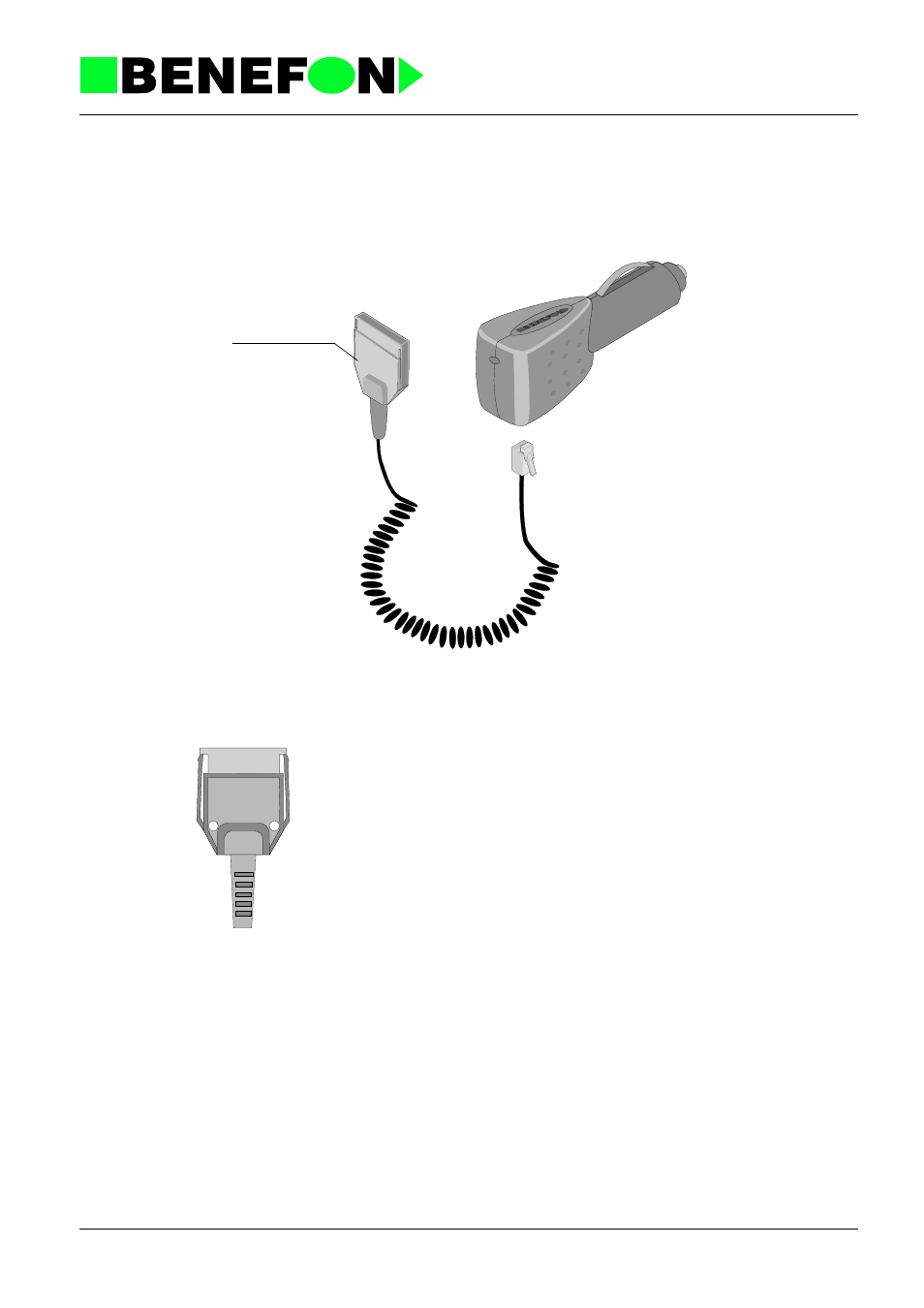

6.2 LIGHTER SOCKET CHARGER CCS-50-12
The charger includes functions for using the handportable and for charging its batter-
ies from the car battery.
CONNECTOR A
Connector A
YO0243
YC0058
1
16
PIN CONFIGURATION:
1,2
charge current
max. 10V, 1,5A
3 - 5
nc
6,7
ground
8 - 15
nc
16
control voltage
0-5 VDC
