Product: CMA-50-230 (Mains Charger) /

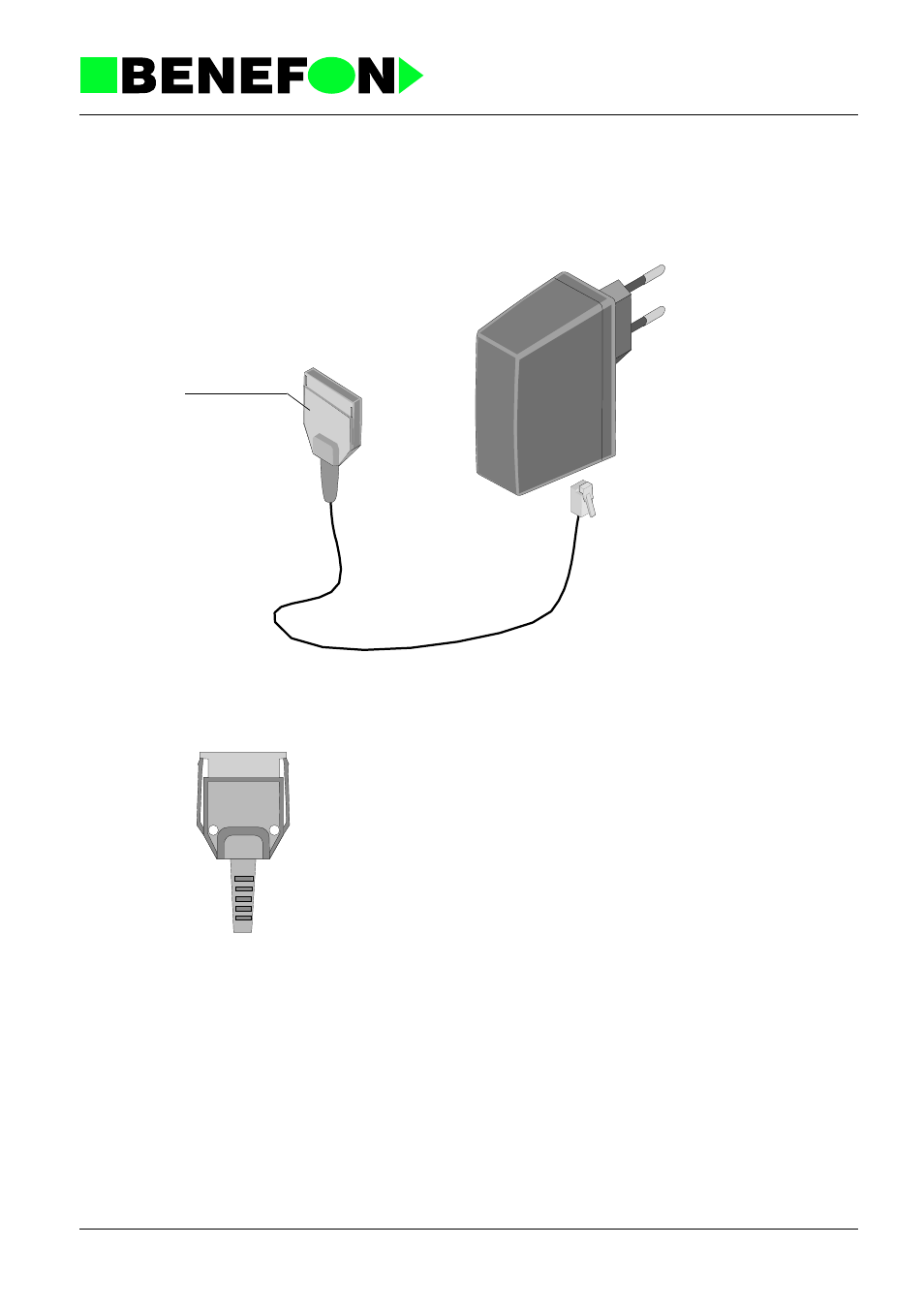

6.1 MAINS CHARGER CMA-50-230
The charger provides functions for charging Benefon brand mobile phones from a
mains supply.
CONNECTOR A
Connector A
YO0240
YC0055
1
16
PIN CONFIGURATION:
1,2
charge current
max. 10V, 1,5A
3 - 5
nc
6,7
ground
8 - 15
nc
16
control voltage
0-5 VDC
