14.2 Burner and nozzle characteristics table
Burner
Rated heating
capacity
(kW)
LPG – G30/G31 28/37 mbar
Nozzle
diameter
1/100 mm
By-pass
1/100
mm
Reduced
flowrate
(W)
Flowrate
g/h G30
Flowrate
g/h G31
Auxiliary
1.0
50
30
350
72
71
Semi rapid
1.75
65
33
450
127
125
Rapid
3
85
45
800
217
214
Triple crown
3.2
91
65
1500
232
228
Burner
Rated heating
capacity
(kW)
NATURAL GAS – G20 20 mbar
Nozzle diameter
1/100 mm
Reduced flowrate
(W)
Auxiliary
1.0
72
350
Semi rapid
1.75
97
450
Rapid
3
115
800
Triple crown
3.5
140
1500

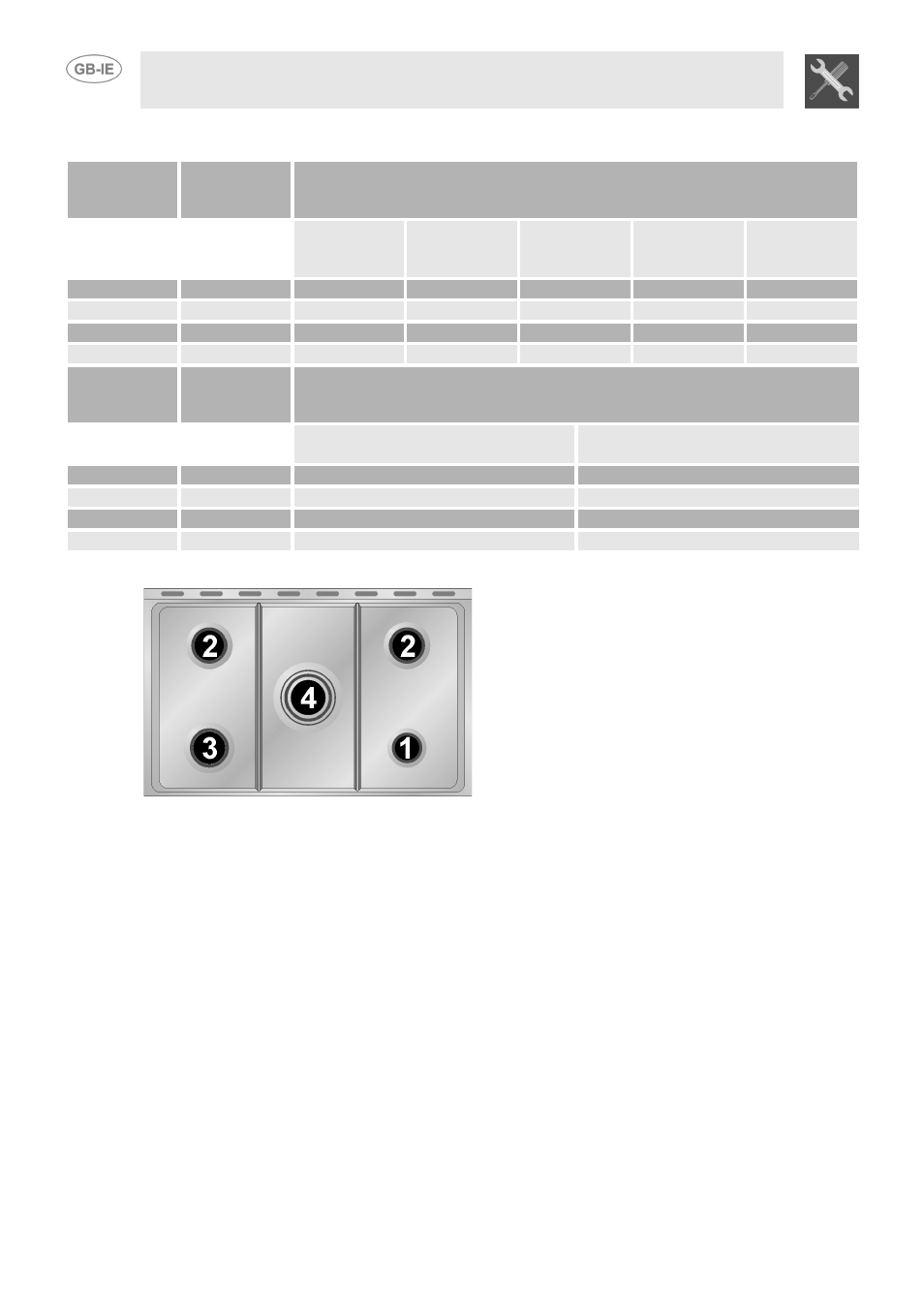

14.3 Arrangement of the burners on the hob
BURNERS
1 Auxiliary
2 Semi rapid
3 Rapid
4 Triple crown
ø min e max (in cm.)
12 - 14
16 - 24
18 - 26
18 - 26
