2-17
Installation and Connection

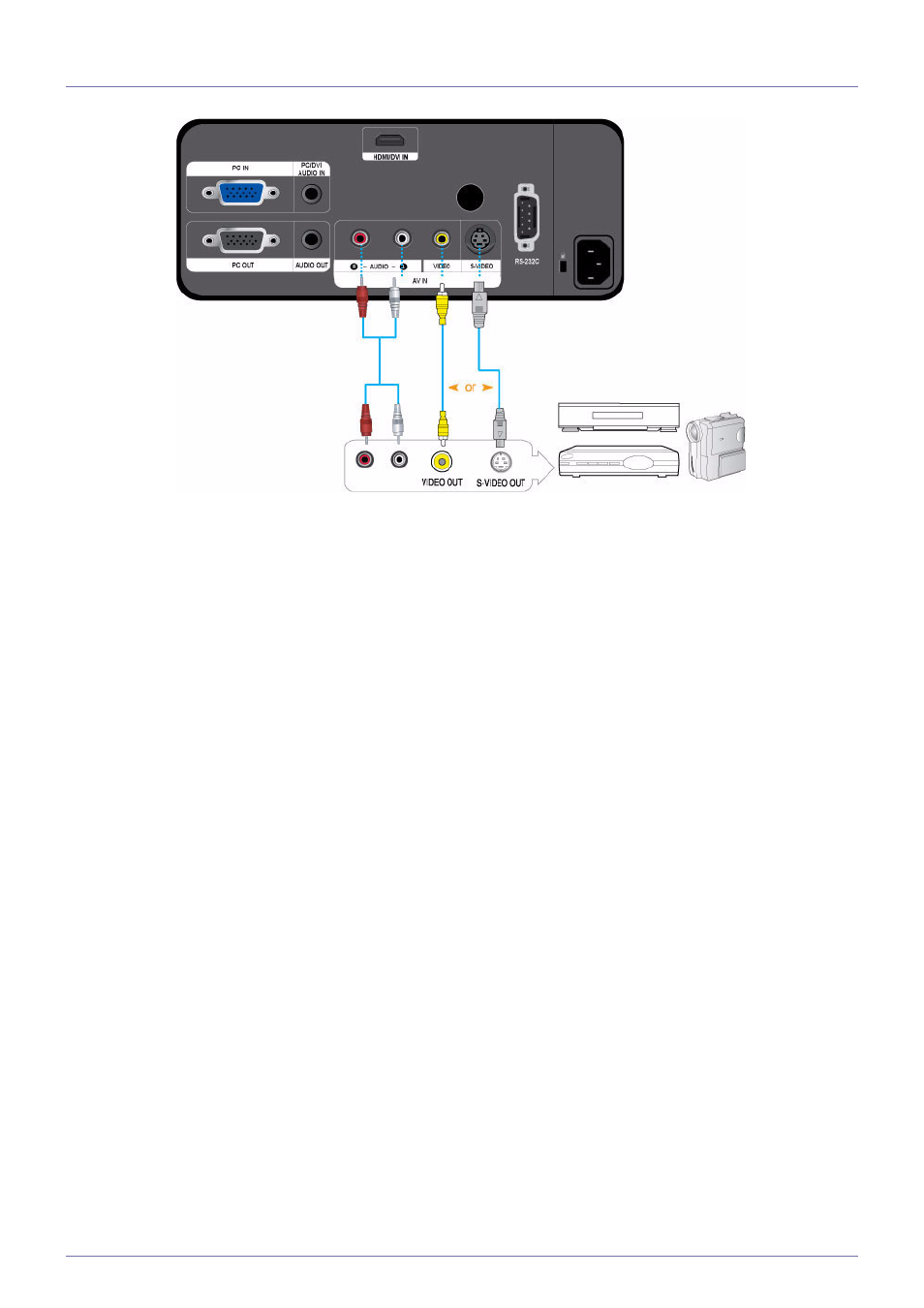

2-17 Connecting using a Video/S-Video cable
First, Make sure that the AV device and your projector are turned off.
1.
Connect the [VIDEO] or [S-VIDEO] terminal and the AV device using a Video cable (Not supplied) or S-Video cable (Not
supplied).
- For supported input signal formats, see AV Timing (VIDEO/S-VIDEO) in section 2-9.
2.
Connect the [AV IN R-AUDIO-L] terminal on the back of the projector and the Audio out terminal on your AV device using an
audio cable (Not supplied).
