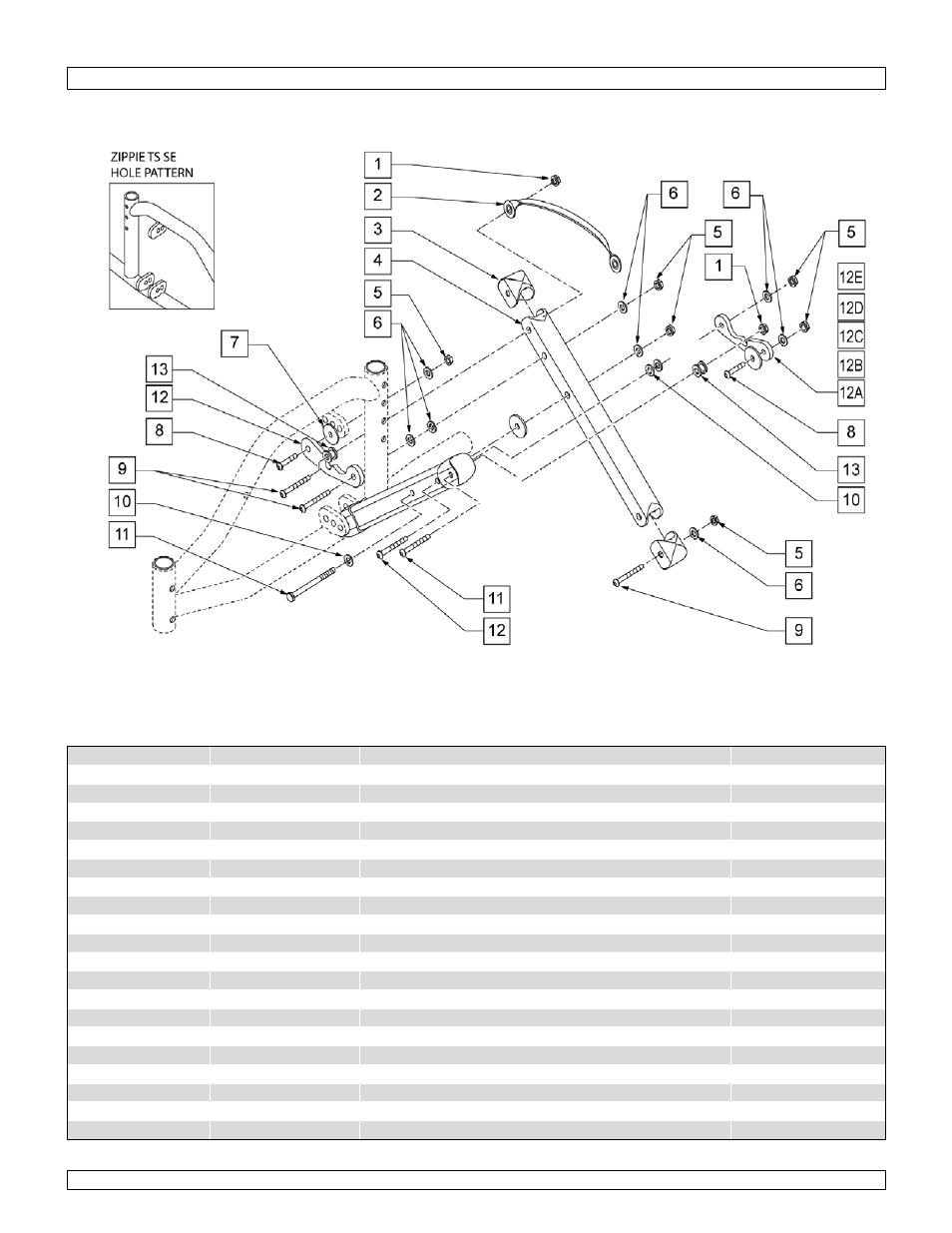

CROSS TUBE ASSM

Pos.

Item Number

Description

Remarks

1

201110-QU

1/4-28 NYLOCK NUT

2

750550

Z2 FOLDING STRAP

3

562845

END CAP OVAL TUBE ZGS

5

201100-QU

1/4-28 NYLOCK NUT THIN

6

262100-QU

1/4 AN WASHER FLAT

7

561016

1" WASHER 5/16" HOLE

8

226111

1/4-28 x 1 BH C/S SHLDR

9

226150

1/4-28 x 2 BH C/S

10

561028

1/4" NYLON WASHER

11

221181

1/4-28 x 2 1/2 G8 HEX C/S

12A

500520

X-HINGE 10-12" ZGS

10 -12" WIDE

12B

500521

X-HINGE 12-14" ZGS

12 -14" WIDE

12C

500522

X-HINGE 14-16" ZGS

14 -16" WIDE

12D

500523

X-HINGE 16-18" ZGS

16 -18" WIDE

13

481089

Z2 X-HINGE SPACER

14

226140

1/4-28 x 1 3/4 BH C/S

15

262120

1/4" SAE WASHER

1-12A,13-15

673100

X TUBE ASSEMBLY 10"- 12" ZGS

10 -12" WIDE

1-12B,13-15

673101

X TUBE ASSEMBLY 12"- 14" ZGS

12 -14" WIDE

1-12C,13-15

673102

X TUBE ASSEMBLY 14"- 16" ZGS

14 -16" WIDE
