Sunrise Medical New Zippie TS - Manual (Page 13)

(01/2008)
NEW ZIPPIE TS/TS PAGE 13

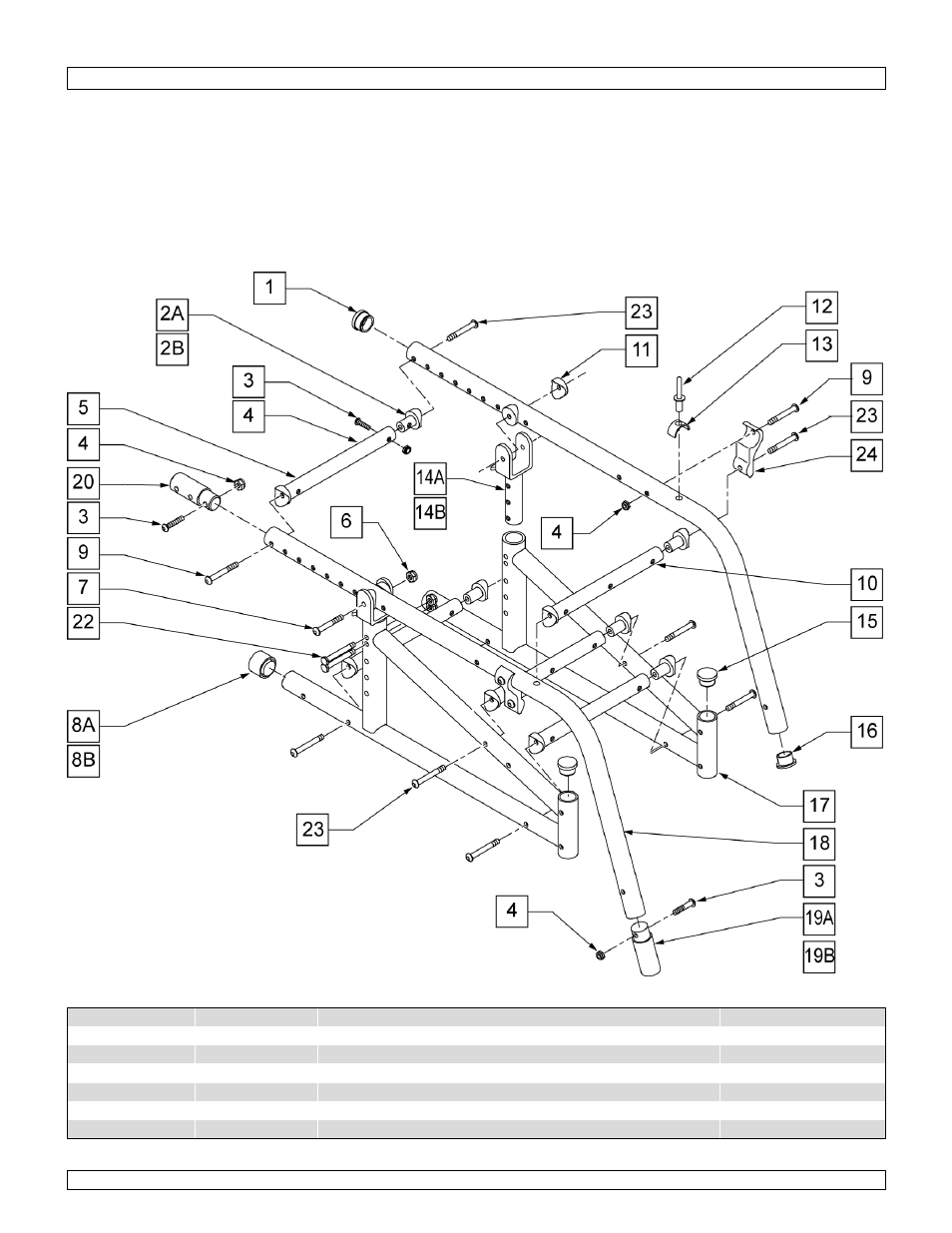

FRAME (FIXED FRONT) DISC. 11/16/99
NOTE: When growing chair to 15" or 16". an additional cylinder lock mechanism is needed and item 8B is used with 12" rear wheel.
NOTE: For locking mechanism, see Section­16, Mechanical Lock and Strut Assemblies.
NOTE: Part 505250 (TILT BRACKET ZP TS 30° ) Discontinued (Parts Only) and is only used on chairs prior to 9/21/02.
** These items used for chairs with (15" ­16") seat depth (17" ­19" Frame Depth).
*** For serial numbers prior to ZP­56988, in the 11", 13", 15" and 16" sizes, please order part number 483184 (STRUT SADDLE GROWING) QTY of
2 per tube.
Pos. Item Number Description Remarks
1 483039 1" INSERT PLUG ALUM ZP TS
2A 483184 STRUT SADDLE ZGS
2B 483161 STRUT SADDLE S525
3 226129 1/4-28 x 1 1/4 BH C/S
4 201100-QU 1/4-28 NYLOCK NUT THIN
5** 522802 STRUT TUBE 10" ZP/KZ
