Sunrise Medical New Zippie TS - Manual (Page 5)

(01/2008)
NEW ZIPPIE TS/TS PAGE 5

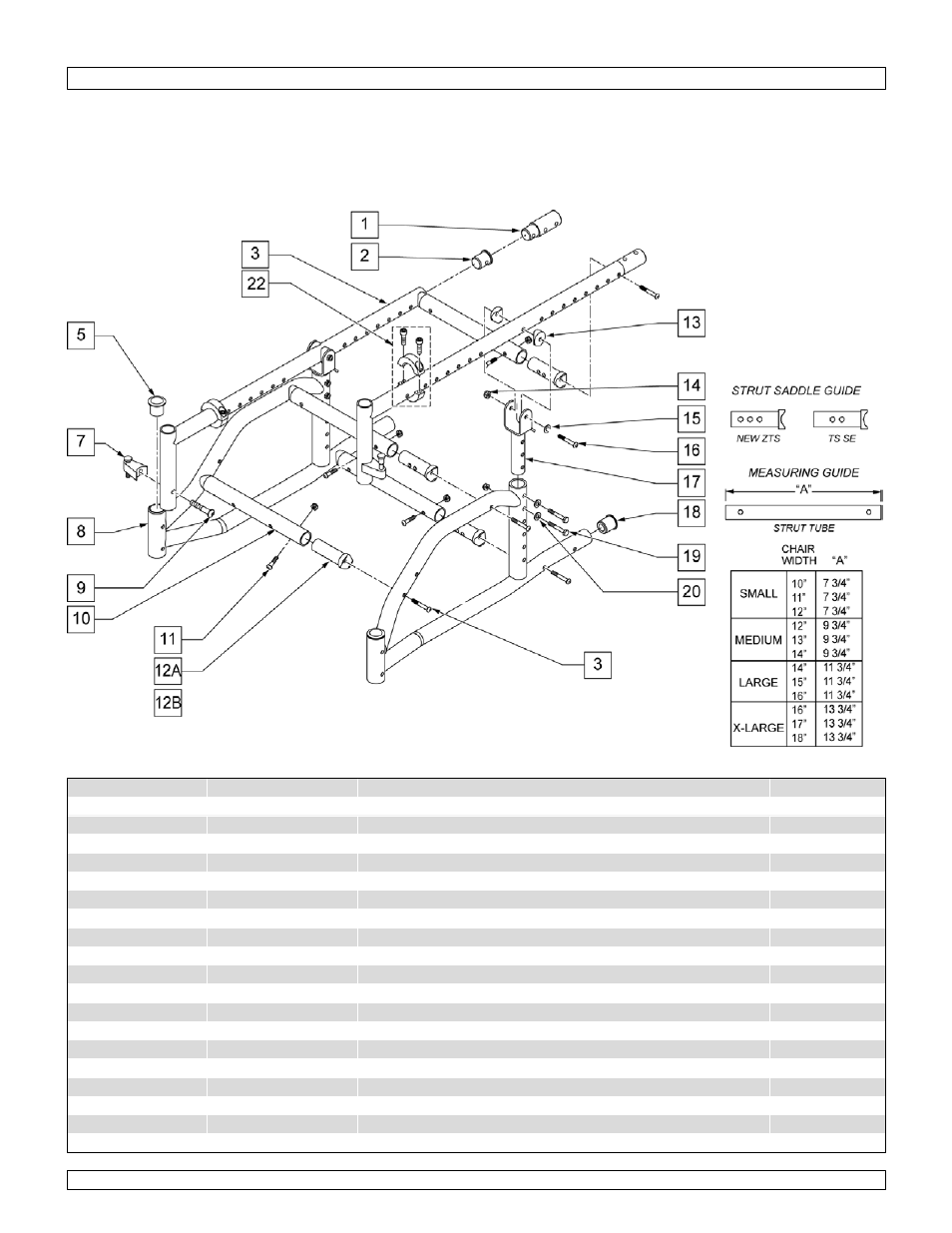

FRAME (RIGID)
NOTE: * THESE ITEMS USED FOR CHAIRS WITH 17"­18" SEAT DEPTH (19"­20" FRAME DEPTH).
** USED ONLY WITH 18" WIDTH.
Pos. Item Number Description Remarks
1* 483088 REAR FRAME EXT .065 15"-16" ZP
2 483089 SEAT TUBE PLUG S/A TS/P5
5 561062 1" INSERT PLUG .065 RIBS
7 881691 LATCH STUD SUPPORT BLK
9 226190 5/16-18 x 1 3/4 BH C/S SHLDR
10 522802 STRUT TUBE 10" ZP/KZ 10" WIDE
10 522803 STRUT TUBE 11" ZP/KZ 11" WIDE
10 522804 STRUT TUBE 12" ZP/KZ 12" WIDE
10 522805 STRUT TUBE 13" ZP/KZ 13" WIDE
10 522806 STRUT TUBE 14" ZP/KZ 14" WIDE
10 522807 STRUT TUBE 15" ZP/KZ 15" WIDE
10 522808 STRUT TUBE 16" ZP/KZ 16" WIDE
11 226129 1/4-28 x 1 1/4 BH C/S
12A 483184 STRUT SADDLE ZGS
12B** 483326 STRUT SADDLE ZGS SE
13 561004 1" SADDLE 1/4" HOLE
14 201110 1/4-28 NYLOCK NUT
15 262100-QU 1/4 AN WASHER FLAT
16 226150 1/4-28 x 2 BH C/S
