Sunrise Medical New Zippie TS - Manual (Page 127)

(01/2008)
NEW ZIPPIE TS/TS PAGE 127

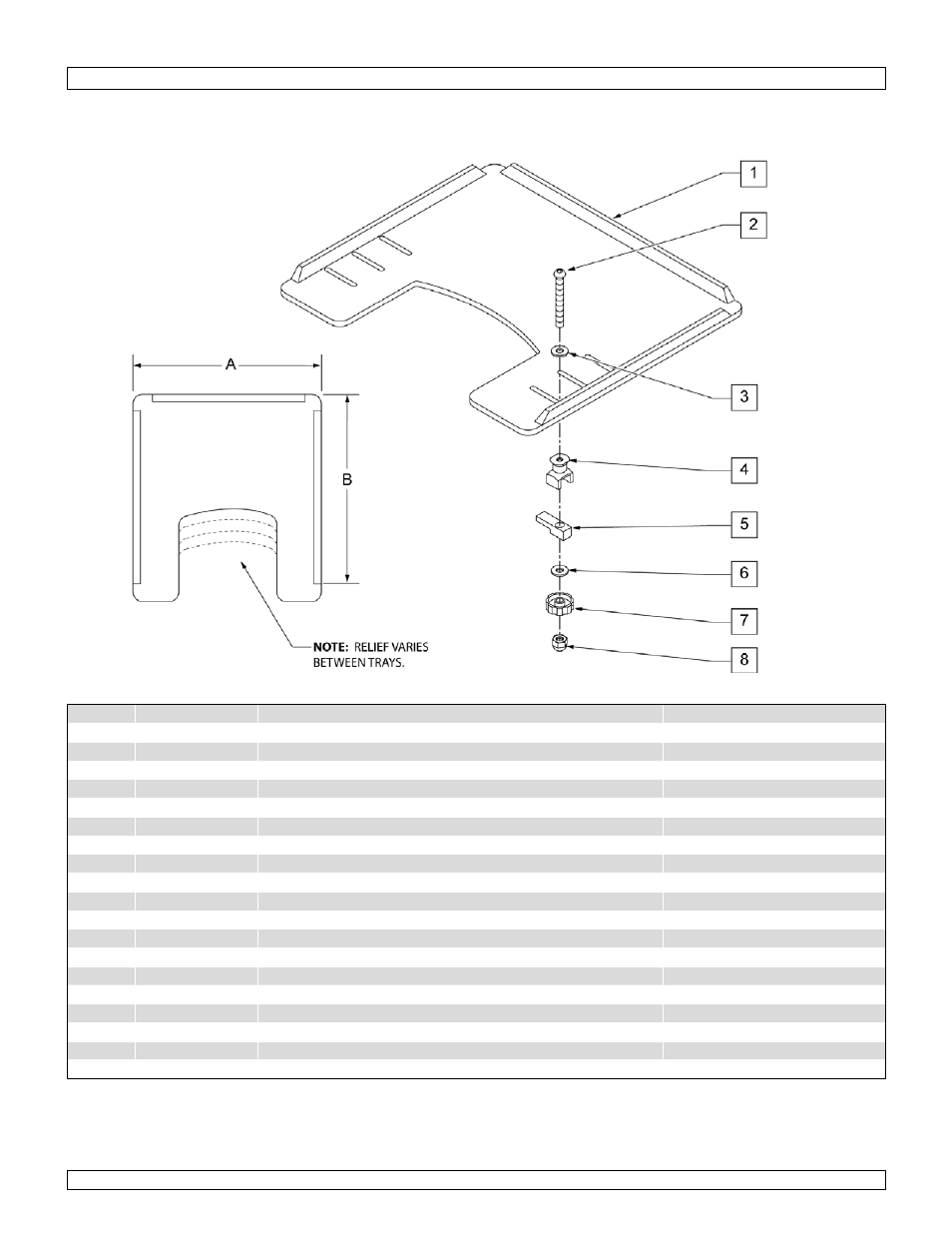

TRAY -QUICKIE KIDZ
Pos. Item Number Description Remarks
1 226199 5/16-18 x 3 1/2 CARR BOLT
2 263112 5/16 WASHER FENDER
3 202110 5/16-18 NUT THIN
4 550400 TRAY CLAMP
5 481113 SPACER 5/16 X .380
6 263100 5/16 AN WASHER FLAT
7 483026 KNURLED TRAY KNOB
8 202112 5/16-18 ACORN NUT
1-8 881051 TRAY HARDWARE KIT TUFFAK NEW STYLE
9A 562619 TRAY TOP EX-SM W/RAIL DIM: A=21" B=18"
9B 562620 TRAY TOP SM W/RAIL DIM: A=21" B=18"
9C 562621 TRAY TOP MED W/RAIL DIM: A=23.75" B=21.5"
9D 562622 TRAY TOP LRG W/RAIL DIM: A=26" B=23.75"
9E 562623 TRAY TOP X-LRG W/RAIL DIM: A=27.75" B=23.75"
1-9A 902306 TRAY ASSEMBLY EX-SM TUFFAK (10 -12") DIM: A=21" B=18"
1-8,9B 902303 TRAY ASSEMBLY SM TUFFAK (13 -14") DIM: A=21" B=18"
1-8,9C 902304 TRAY ASSEMBLY MED TUFFAK (15 -17") DIM: A=23.75" B=21.5"
1-8,9D 902305 TRAY ASSEMBLY LRG TUFFAK (18 -20") DIM: A=26" B=23.75"
1-8,9E 902309 TRAY ASSEMBLY X-LRG TUFFAK (21 -22") DIM: A=27.75" B=23.75"
