Product overview
8

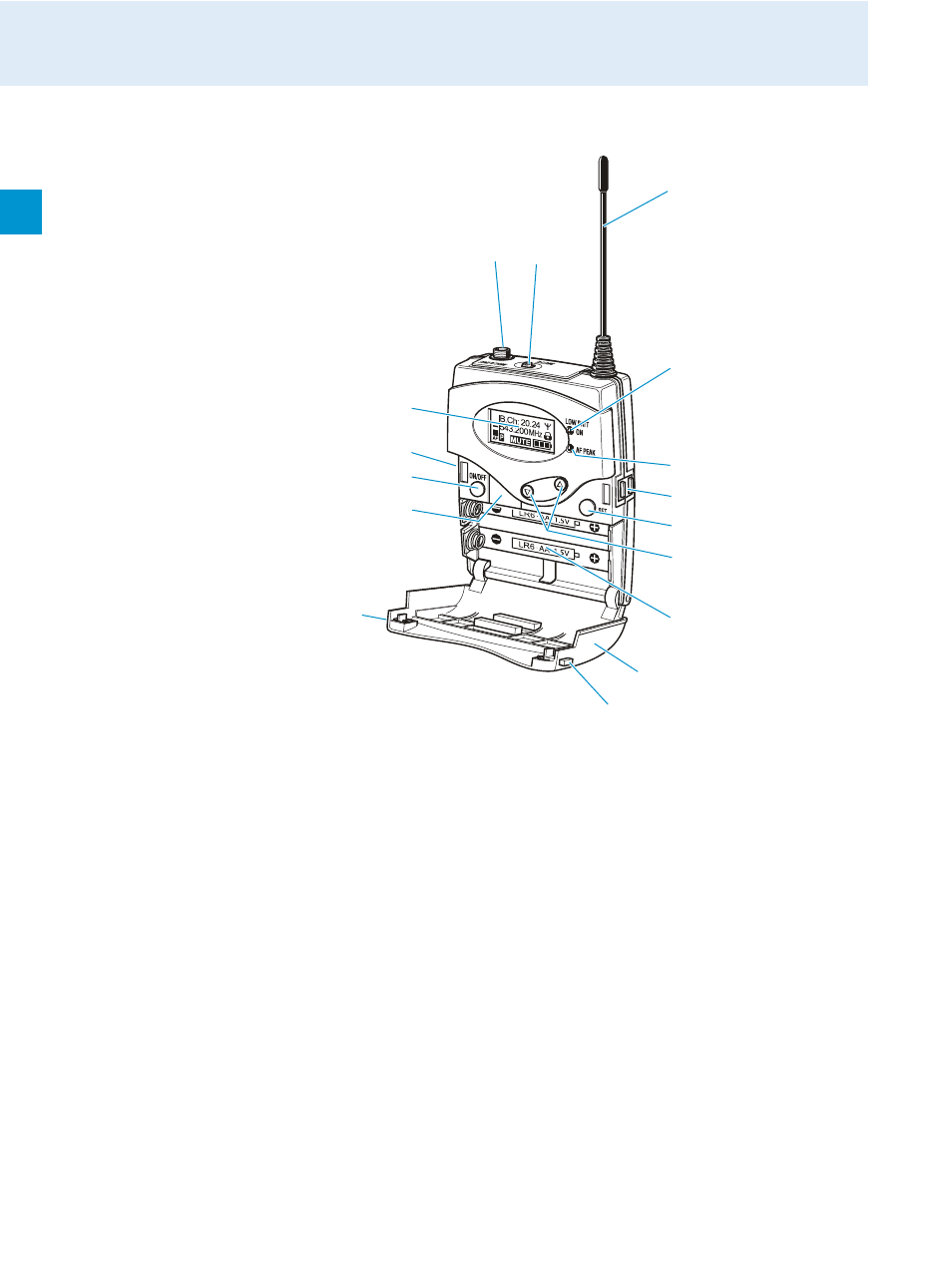

Overview of the SK 500 bodypack transmitter
Operating elements
³
Microphone/instrument input ( MIC / LINE ),
3.5 mm jack socket, lockable
· MUTE
switch
»
Antenna
¿
Operation and battery status indicator, red LED
(lit =
ON /flashing = LOW BATTERY )
´ Audio overmodulation indicator, yellow LED
(lit =
AF PEAK )
²
Charging contacts
¶ SET
button
º ̆
/
̄
rocker button ( UP / DOWN )
¾
Battery compartment
µ
Battery compartment cover
¸
Battery compartment catches
¹
Infra-red interface
Ƹ ON
/ OFF button,
serves as the ESC (cancel) key in
the operating menu
ƹ
Display panel, backlit in orange
