MOUNTING YOUR INTERACTIVE WHITEBOARD ON A FLOOR STAND
Contents of Your FSV280 Floor Stand Shipping Box

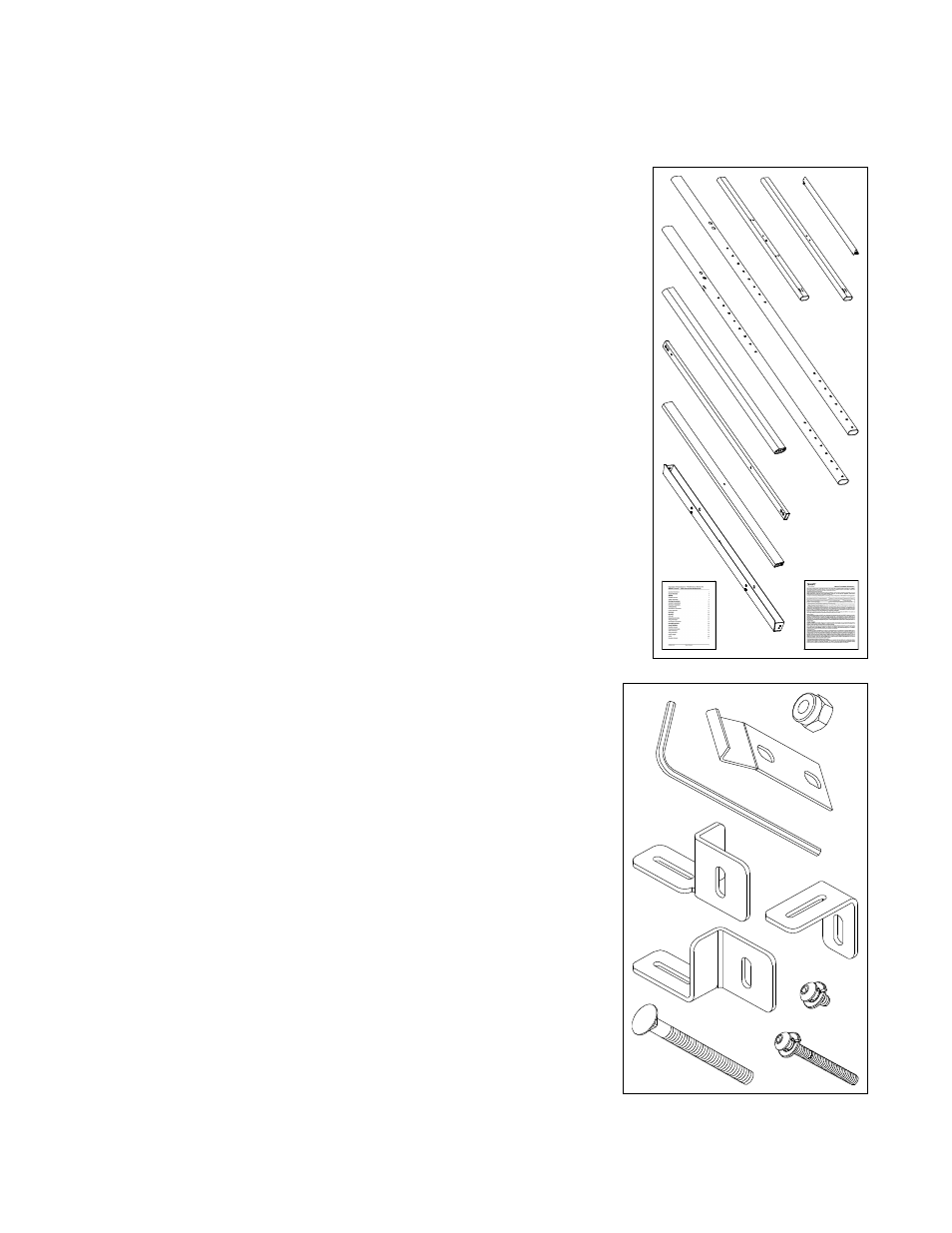

Your FSV280 floor stand shipping box contains:
•
Two upright braces (A)
•
Left foot (B)
•
Right foot (C)
•
Left upright (D)
•
Right upright (E)
•
Bottom cross-bar (F)
•
Two vertical frame parts (G)
•
Bottom frame part (H)
•
Top frame part (J)
•
One-year limited product warranty document
•
Multi-lingual product warnings document
•
Textless installation instructions (not shown)
You also received a hardware kit containing the
following smaller parts:
•
Sixteen 1 1/2" (3.8 cm) button-head screws
with split washers (K)
•
Center interactive whiteboard support
bracket (L)
•
Five 1/2" (1.3 cm) button-head screws
with split washers (M)
•
Right interactive whiteboard support
bracket (N)
•
Left interactive whiteboard support
bracket (P)
•
Four carriage bolts (Q)
•
Four locking nuts (R)
•
Two security brackets (S)
•
5/32" (4 mm) hex key
A (×2)
B
C
D
E
F
G (×2)
H
J
R (×4)
S (×2)
P
L
N
M (×5)
K (×16)
Q (Ч4)
