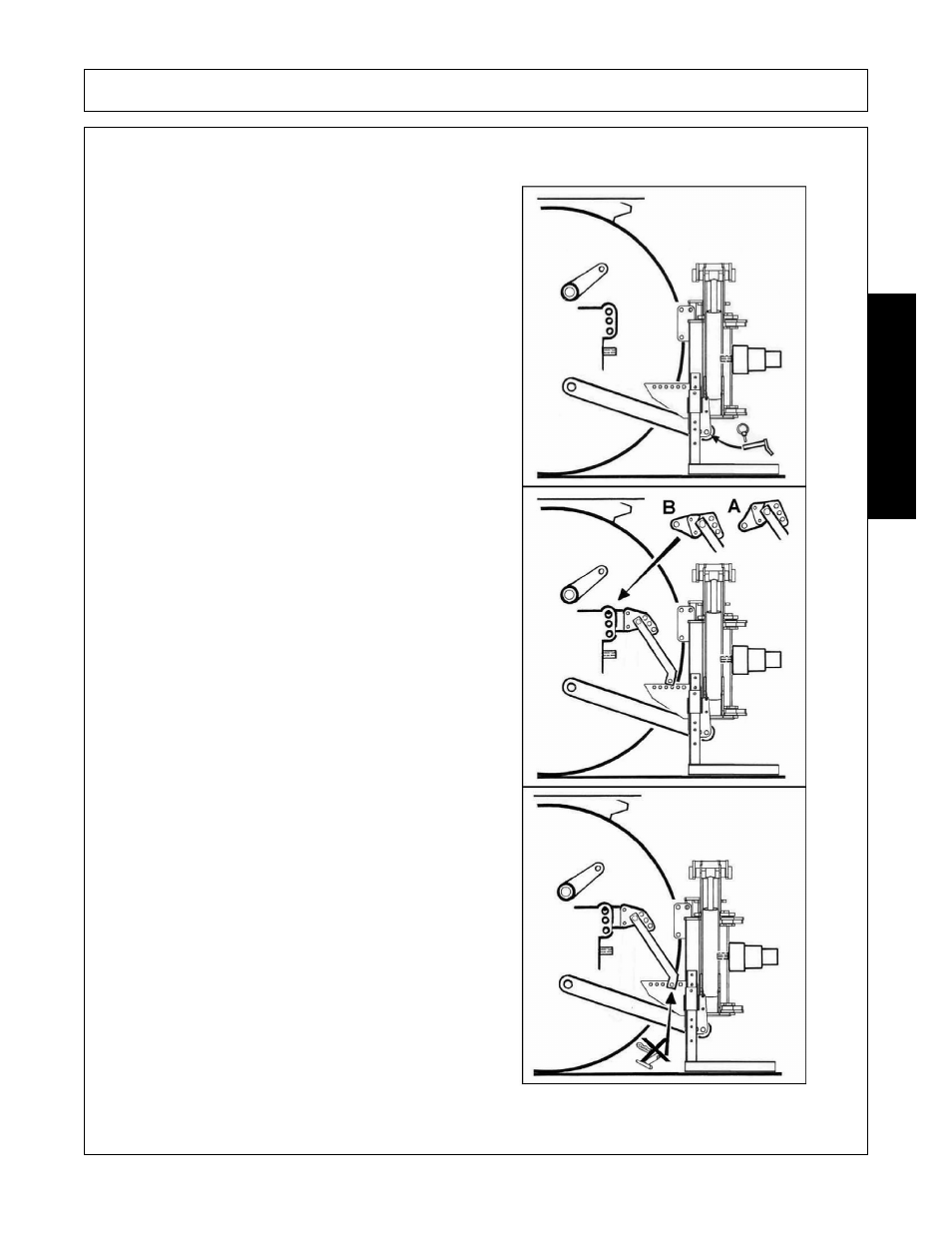

ATTACHMENT TO TRACTOR
• Reverse tractor squarely up to the machine.
• Connect the tractors draft links - selecting the
rear most hole in the machines lower link
brackets that allow the machine to be mounted
without contacting the tractor.
• Ensure that the same hole is used on both
sides.
• If necessary fit the spacers supplied (as
required) to minimise sideways movement of
the tractor draft links within the hitch brackets.
• Tighten tractor’s stabilizers.
• The lifting equipment may now be removed.
• Fit the stabilizer nose into the tractors top link
position. Use the highest position available
avoiding any load sensing properties.
• The bolt-on nose of the stabilizer is reversible to
accommodate a variety of tractor linkage
designs. (Optional stablizer nose available).
• Stretch out the stabilizer and rest the bottom
legs on the lower rail.
• Do not fit stabilizer lower pins at this stage.
