OPERATION
1900 07/10 Operation Section 4-37
© 2010 Alamo Group Inc.
OPERA
T
ION

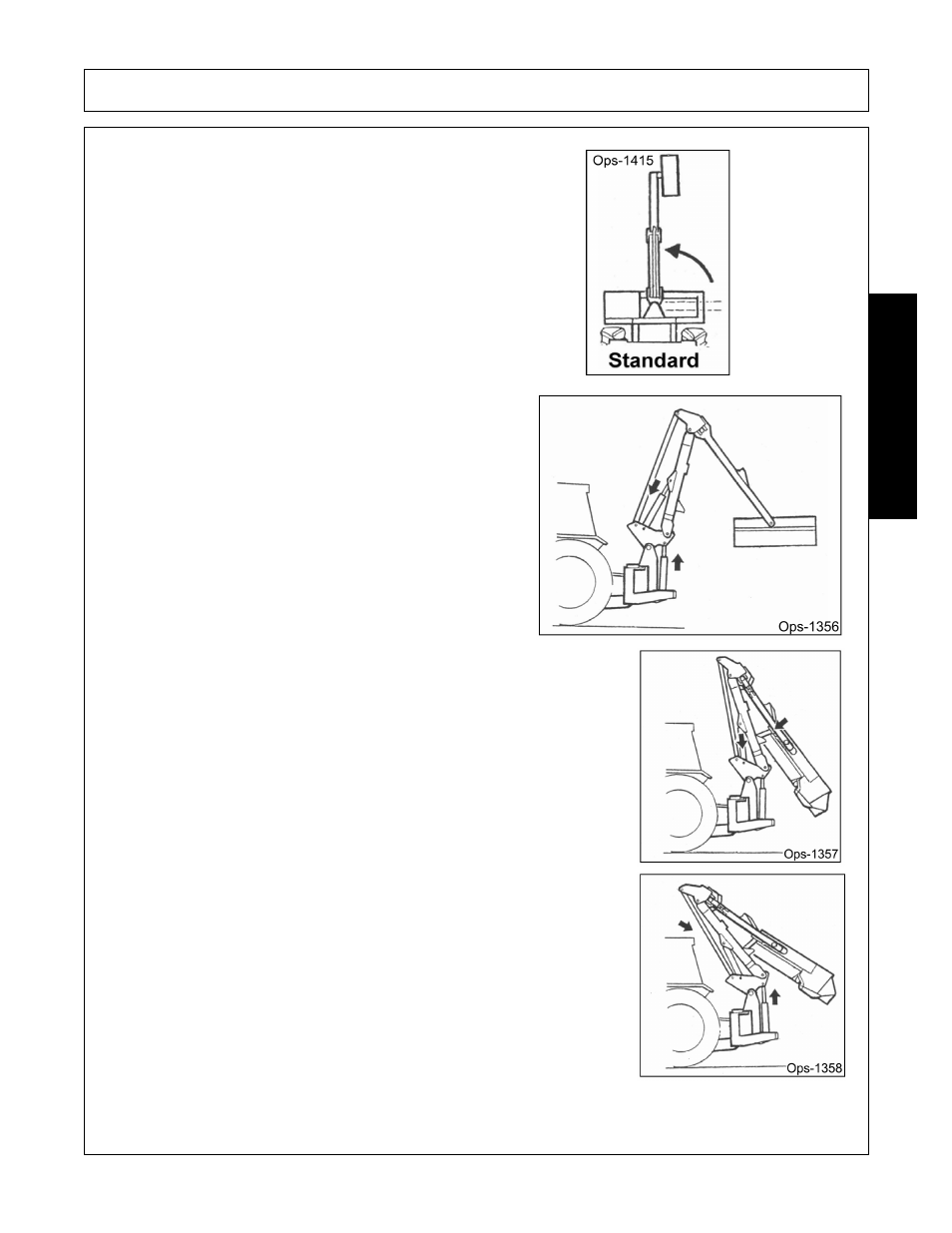

TRANSPORT POSITION
•
Select ROTOR OFF and wait until rotor has
stopped turning
• Ensure that the “LIFT” and “ANGLE FLOAT” are
switched “OFF”
• Select “SLEW” mode on the control assembly.
• Operate “SLEW IN”
• Operate “LIFT” and “REACH” to position the
machine.
• Operate “REACH IN” until dipper arm contacts the
transport cradle.
• Select “LIFT UP” and raise the arms until the
tension link is 300mm from the tractor cab.
• Operate “ANGLE” and position the flail head in as
compact position as possible. (see transport
position)
• Fully screw in the lift ram and slew ram taps.
