Replace Upper Lens Cover. Slide Light-Block Sheet into the guide of Upper Lens Cover and set
them in front of the flap. (See Fig. 7.) Fix Upper Lens Cover with 4 Screws C. (See Fig. 2.)
8
Replace Lower Lens Cover. Slide Light-Block Sheet into the guide of Lower Lens Cover and set
them in front of the flap. (See Fig. 7.) Fix Lower Lens Cover with 2 Screws A. (See Fig. 1.)
9
Turn the projector on and operate Lens shift, Zoom and Focus fully to check Light-Block Sheet. If
Light-Block Sheet interfere with those operations, check Light-Block Sheet is set properly.

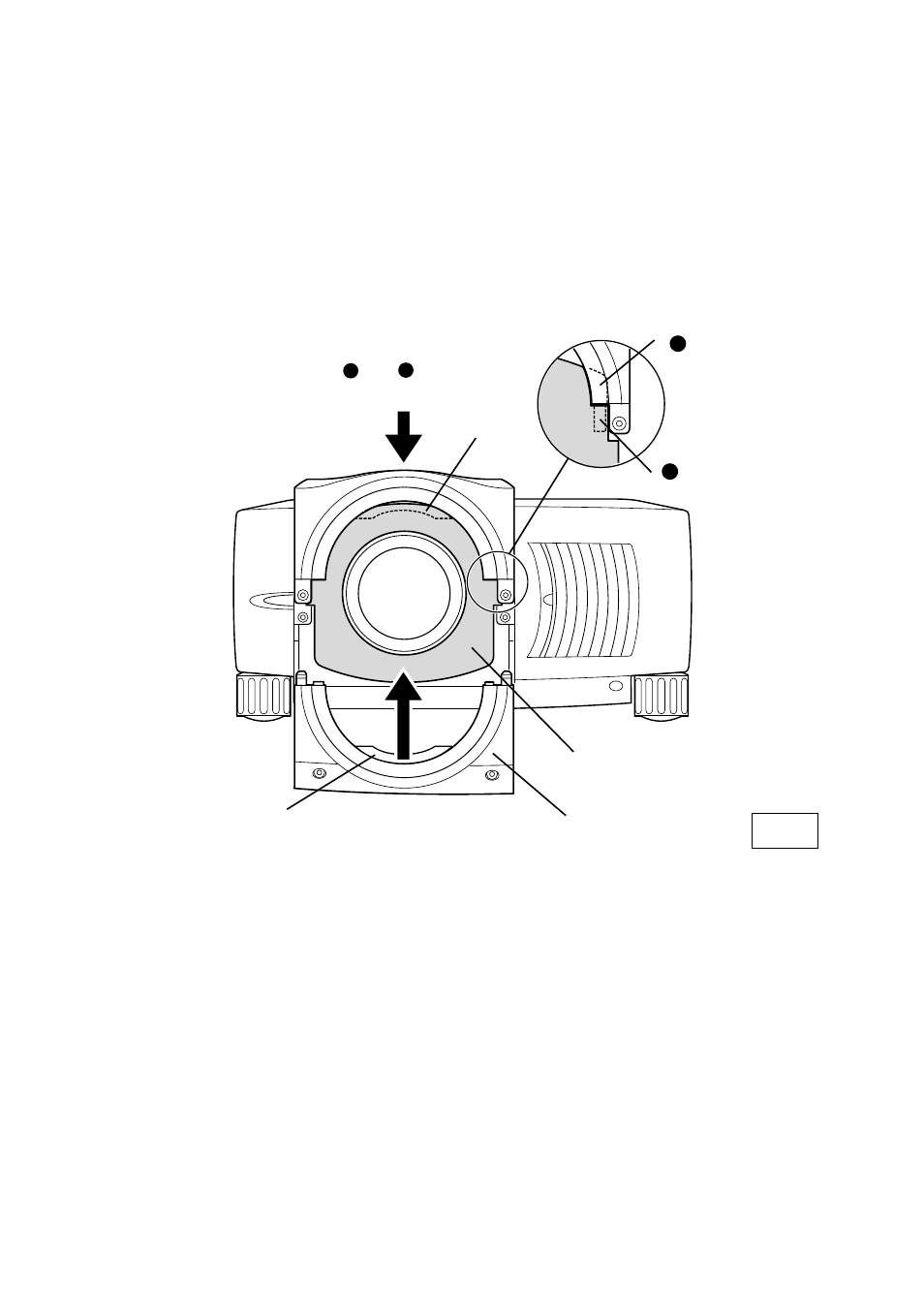

Fig-7
LOWER LENS
COVER
LIGHT-BLOCK
SHEET
Slide into front
of the flap.
FLAP
Slide upper both side of LIGHT BLOCK
SHEET into between
and
.
2
1
GUIDE
1
2
UPPER LENS
COVER
FLAP
