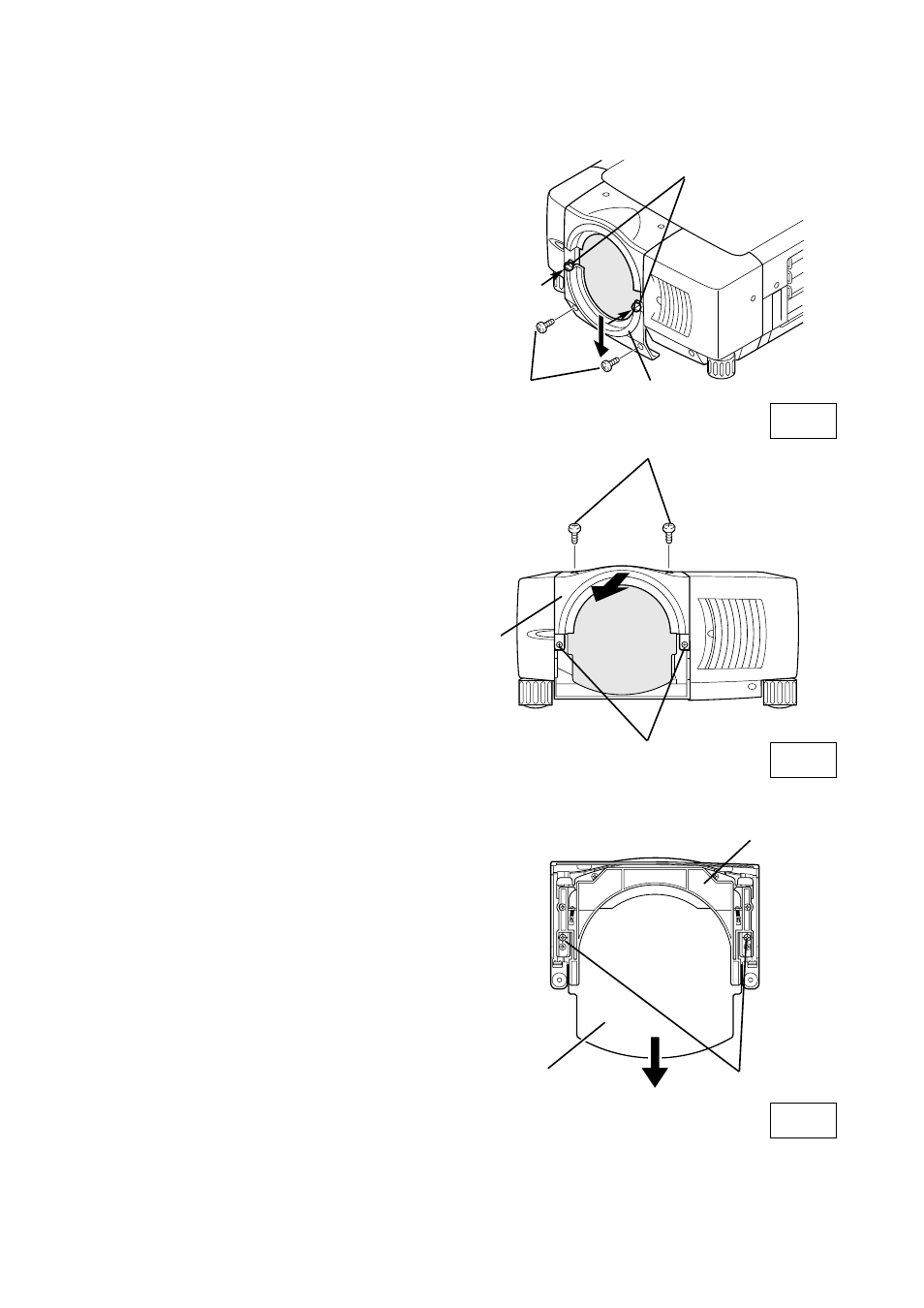

LENS REPLACEMENT AND INSTALLATION PROCEDURE

{Type (1) Cabinet}

-2-

1

Remove Lower Lens Cover. Remove 2 Screws A.

Push part B and pull Lower Lens Cover down.

(See Fig. 1.)

2

Remove 4 Screws C. Pull Upper Lens Cover

toward front and remove. (See Fig. 2.)

3

Remove 2 Scres D and Cover Plate on the back of

Upper Lens Cover. (See Fig. 3.)

A

C

C

B

Fig-3

Fig-1

Fig-2

UPPER LENS

COVER

COVER PLATE

UPPER LENS

COVER

LOWER LENS

COVER

D
