Sanyo LNS-S03 - Manual (Page 4)

5 Connect Lens Motor Lead to the connector
"K96T" on the circuit board under the lens.

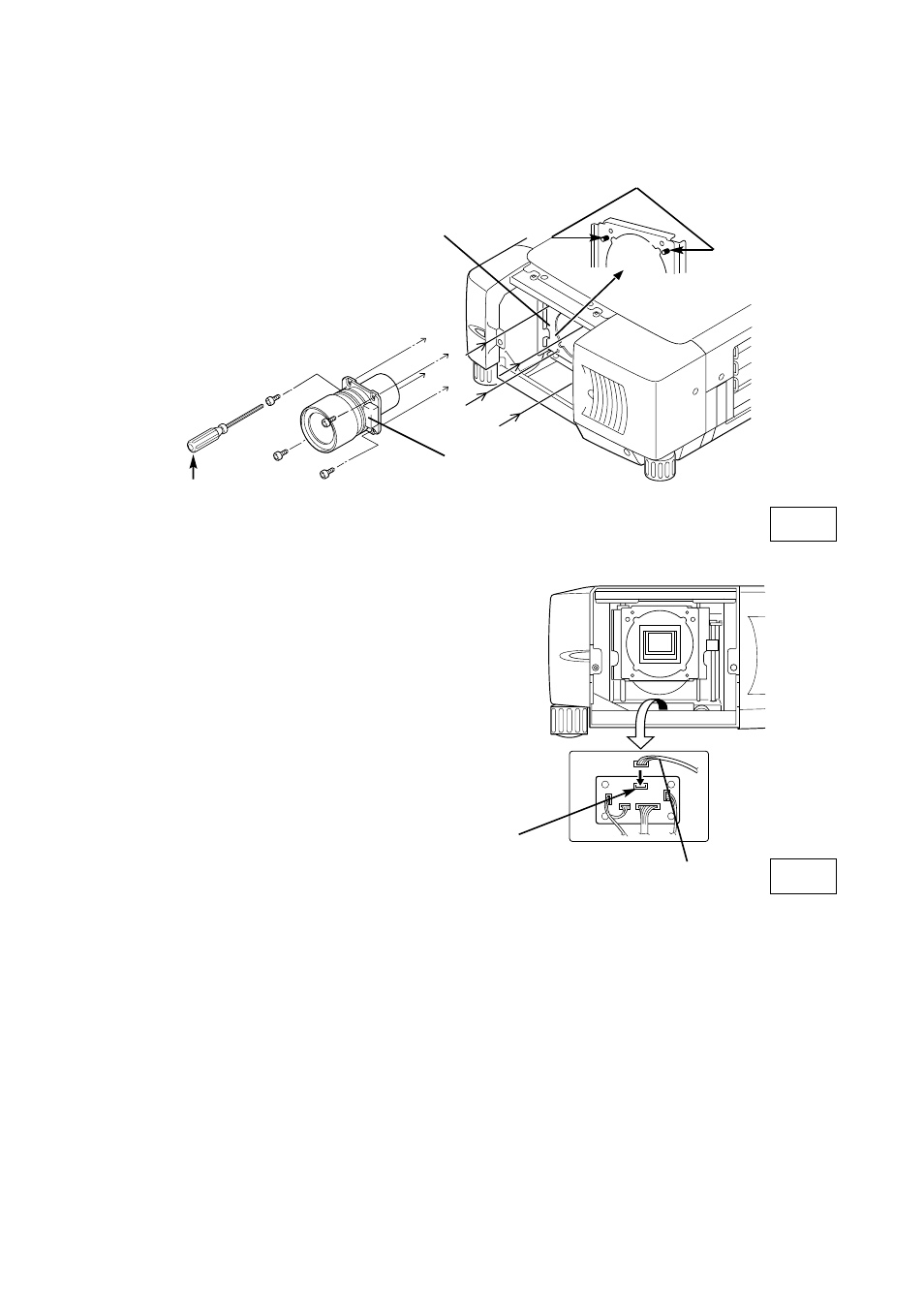

4 Replace Lens Cap on the rear (mounting side) of Projection Lens and mount the lens on Lens
Mouting Bracket with 4 Screws. To mount the lens with Lens Motor on the right. (See Fig. 4.)
GUIDE PIN
Fig-4
DRIVER
IN THE LENS
LOCATE MOTOR
ON RIGHT SIDE
LENS MOUNTING
BLACKET
Fig-5
K96T CON-
NECTOR
LENS MOTOR LEAD
Part No. (610 275 6029)
-3-
