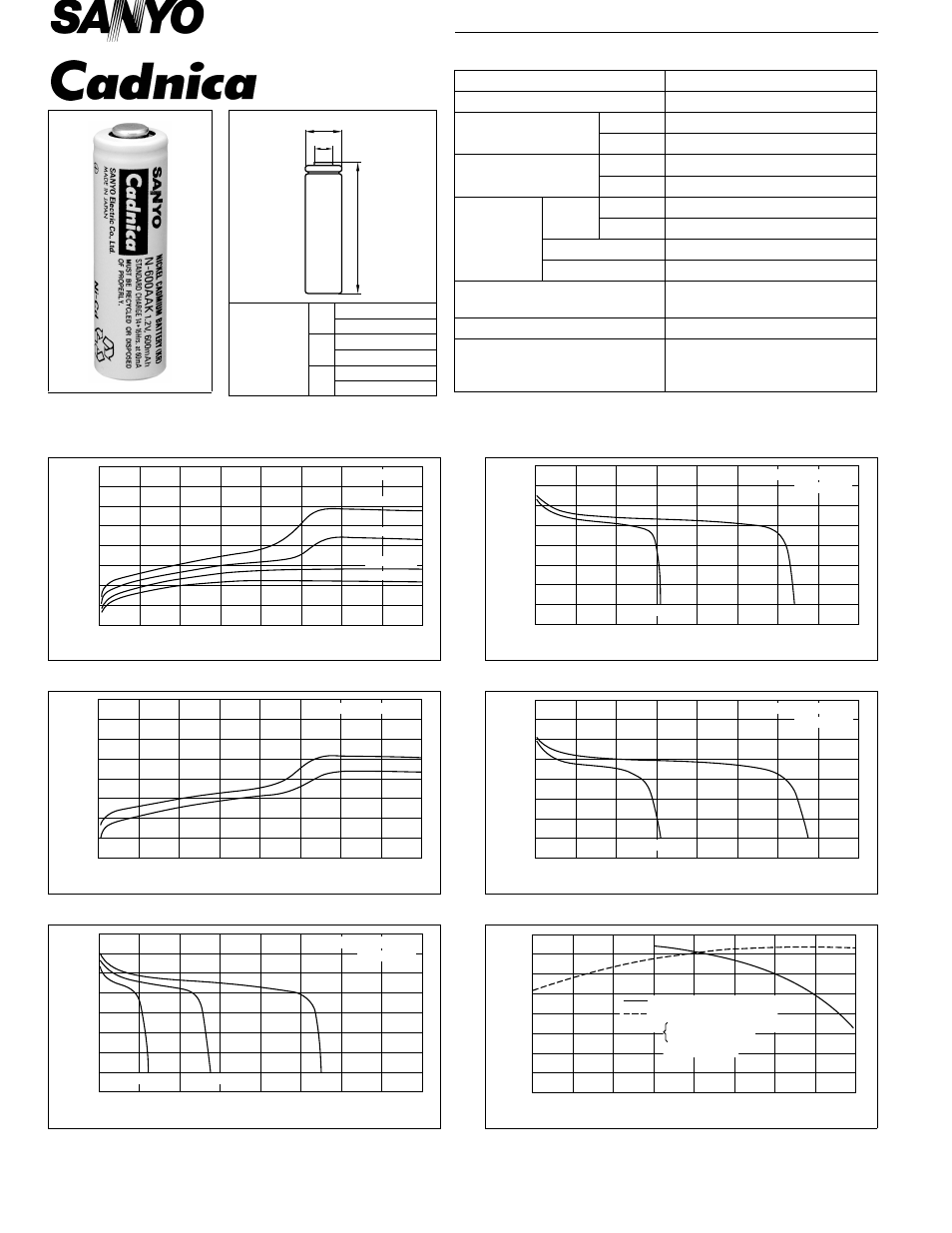

Sanyo N-600AAK - Manual

Typical Characteristics
Specifications
Cell Type N-600AAK
Dimensions
of
Bare Cell
H
49.5 ±0.3 mm
1.949 ±0.012 inch
D
13.8 ±0.2 mm
0.543 ±0.008 inch
d
7.0 mm
0.276 inch
D
d
H
Nominal Capacity 600mAh
Nominal Voltage 1.2V
Charging Current
Standard 60mA
Quick 180mA
Charging Time
Standard 14 to 16Hrs.
Quick 4 to 6Hrs.
Ambient
Temperature
Charge
Standard 0°C to +70°C [+32°F to 158°F]
Quick 10°C to +70°C [+50°F to 158°F]
Discharge -20°C to +70°C [ -4°F to 158°F]
Storage -30°C to +70°C [ -22°F to 158°F]
Internal Impedance (Av.)
(at 50% discharge) 12.0m Ω
(at 1000Hz)
Weight 23g/0.81oz
Dimensions(D) ×(H)
(with tube)
Charge
1.6
1.5
1.4
1.3
0 2 4 6 8 10 12 14 16
Charge : 60mA
0˚C/32˚F
20˚C/68˚F
40˚C/104˚F
60˚C/140˚F Cell Voltage (V)
Charge Time (Hrs.)
Charge
1.6
1.5
1.4
1.3
0 20 40 60 80 100 120 140 160
Temperature : 20˚C/68˚F
0.3 It
0.1 It
Cell Voltage (V)
Charge Input (%)
Discharge (at low rate)
1.4
1.2
1.0
0.8
0 2 4 6 8 10 12 14 16
Charge : 180mA ×5Hrs.
at 20˚C/68˚F
(0.1 It) (0.2 It) (0.5 It)
Cell Voltage (V)
Discharge Time (Hrs.)
Discharge (at high rate)
1.4
1.2
1.0
0.8
0 10 20 30 40 50 60 70 80
Charge : 180mA ×5Hrs.
at 20˚C/68˚F
(2 It) (1 It)
Cell Voltage (V)
Discharge Time (Mins)
Discharge (at high rate)
1.4
1.2
1.0
0.8
0 2 4 6 8 10 12 14 16
Charge : 180mA ×5Hrs.
at 20˚C/68˚F
(4 It) (8 It)
Cell Voltage (V)
Discharge Time (Mins)
Temperature (Charge & Discharge)
100
80
60
40
-20 -10 0 10 20 30 40 50 60˚C
-4 14 32 50 68 86 104 122 140˚F
Available Capacity (%)
Operating Temperature
90
70
50
Charge Characteristics
Discharge Characteristics
Condition Charge : 180mA ×5Hrs.
Discharge : 120mA
(End Volt 1.0V)
14.3 0 × 50.2 0 mm
-0.5 -1.0
0.56 0 × 1.98 0 inch
-0.02 -0.04
CD010830
