SMSC TMC2005-JT - Manual (Page 17)

ARCNET 5 Port HUB Controller
Datasheet
SMSC TMC2005-JT Page 17 Revision 1.1 (07-24-07)
DATASHEET
Example 6: An on-board type HUB with a COM20020, two HYC4000s, and two HYC9088s links two different physical
layers; dipulse and AC-485.

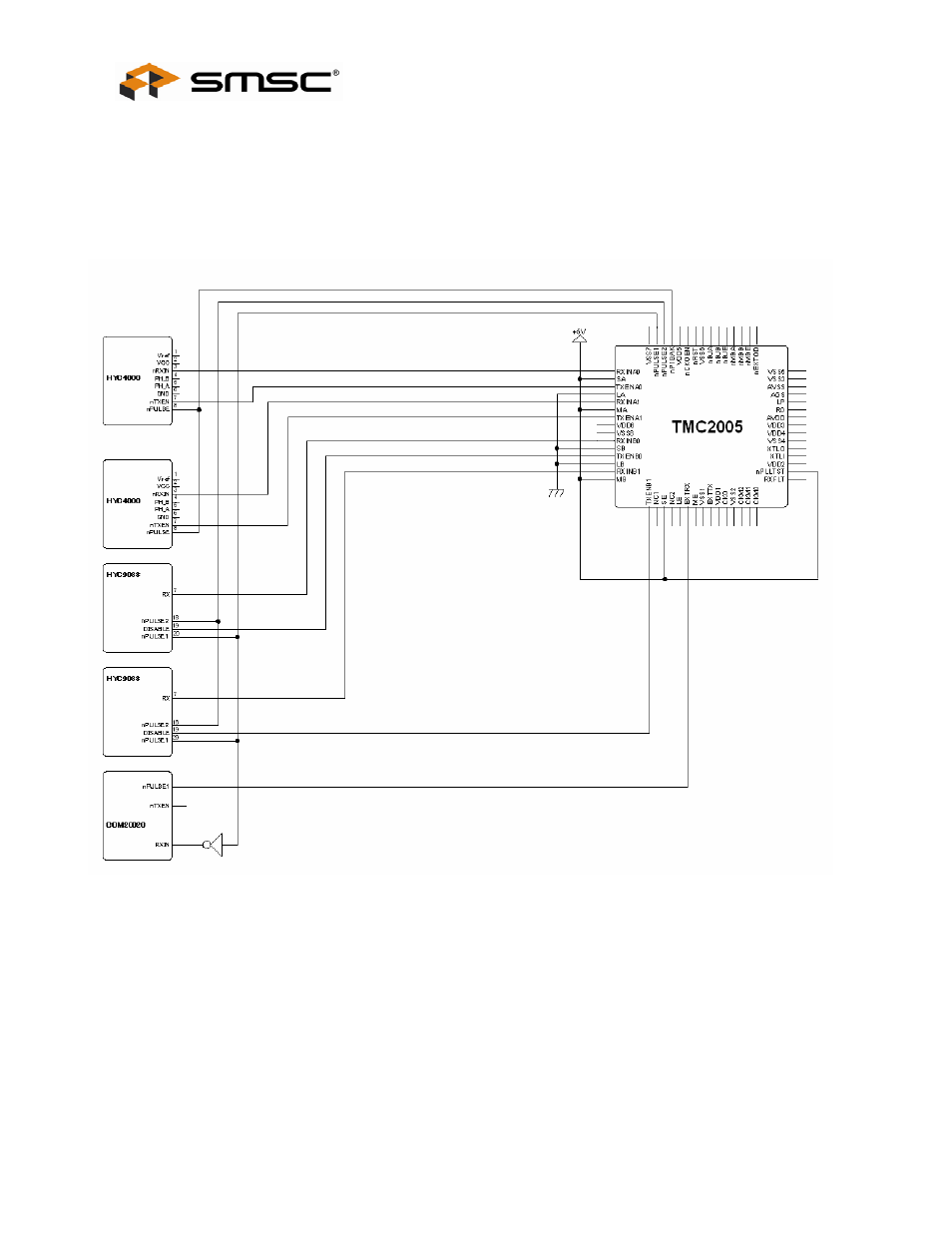

FIGURE 6 - APPLICATION EXAMPLE 6
Only the TMC2005 and four transceivers with the COM20020 are indicated in the above figure. Connect the other
pins adequately.
