Example 2: A five ports HUB with HYC9088s and a optical transceiver(TODX270A) links the two physical layers;
dipulse and fiber optics.

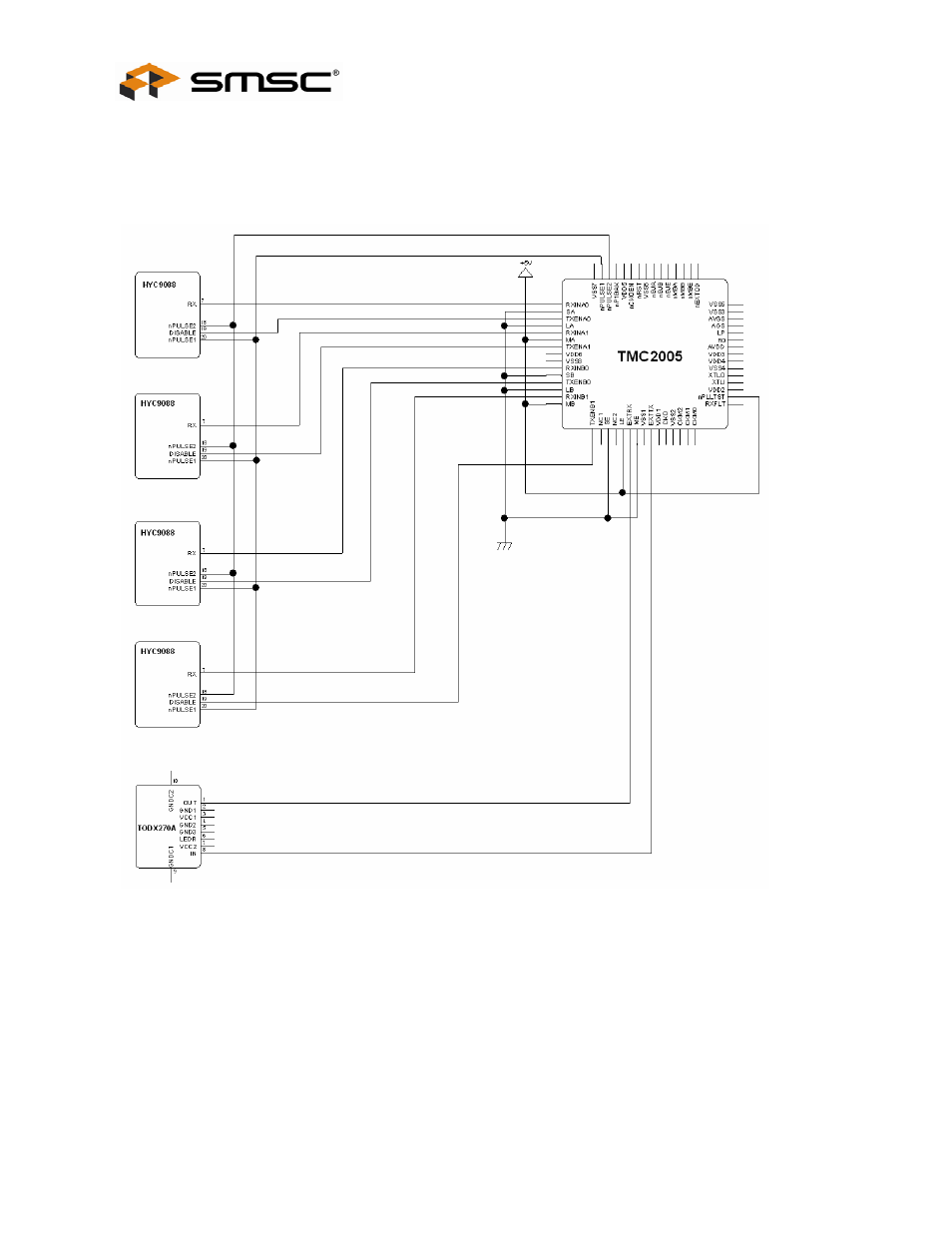

FIGURE 2 - APPLICATION EXAMPLE 2
Only the TMC2005 and five transceivers are indicated in the above figure. Connect the other pins adequately.
