ARCNET 5 Port HUB Controller
Datasheet
SMSC TMC2005-JT
Page 15
Revision 1.1 (07-24-07)
DATASHEET

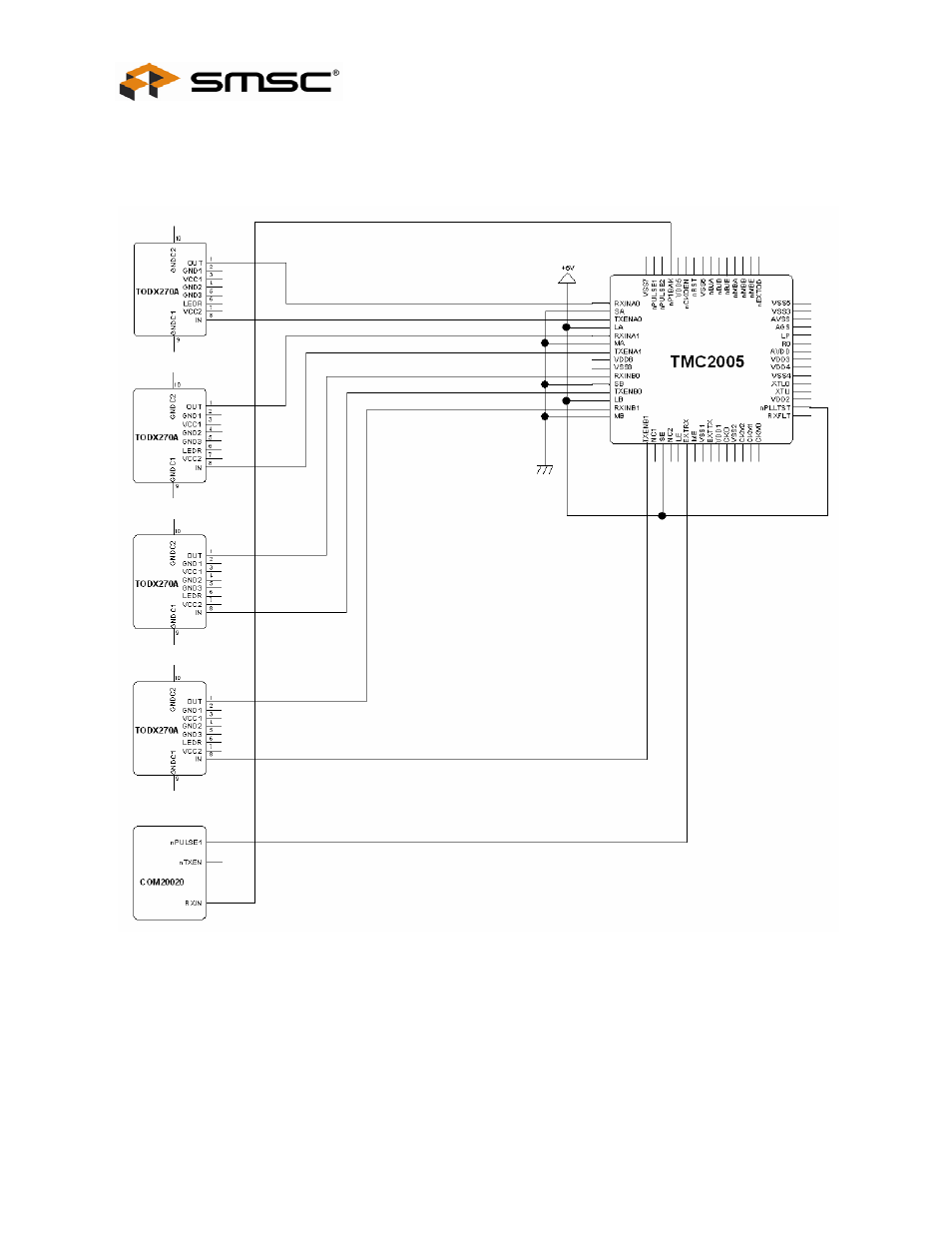

Example 4: An on-board type HUB with a COM20020 and four optical transceivers in backplane mode.
FIGURE 4 - APPLICATION EXAMPLE 4
Only the TMC2005 and four transceivers with the COM20020 are indicated in the above figure. Connect the other
pins adequately.
