ARCNET 5 Port HUB Controller
Datasheet
Revision 1.1 (07-24-07)
Page 14
SMSC TMC2005-JT
DATASHEET

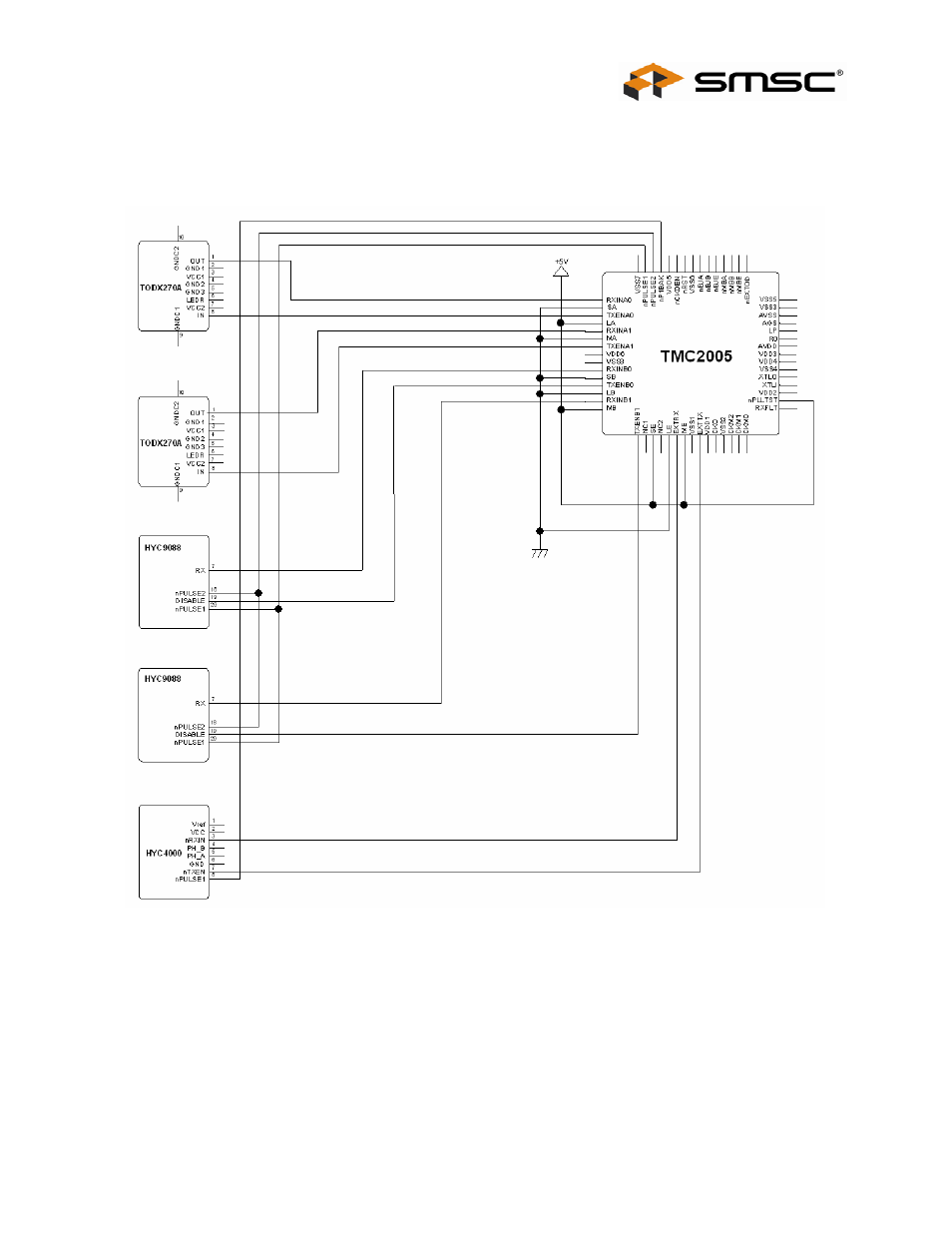

Example 3: A five ports HUB with two optical transceivers, two HYC9088s, and a HYC4000 links three physical
layers; fiber optics, dipulse, and AC-485.
FIGURE 3 - APPLICATION EXAMPLE 3
Only the TMC2005 and five transceivers are indicated in the figure above. Connect the other pins properly.
