ARCNET 5 Port HUB Controller
Datasheet
Revision 1.1 (07-24-07)
Page 12
SMSC TMC2005-JT
DATASHEET
APPLICATION NOTES

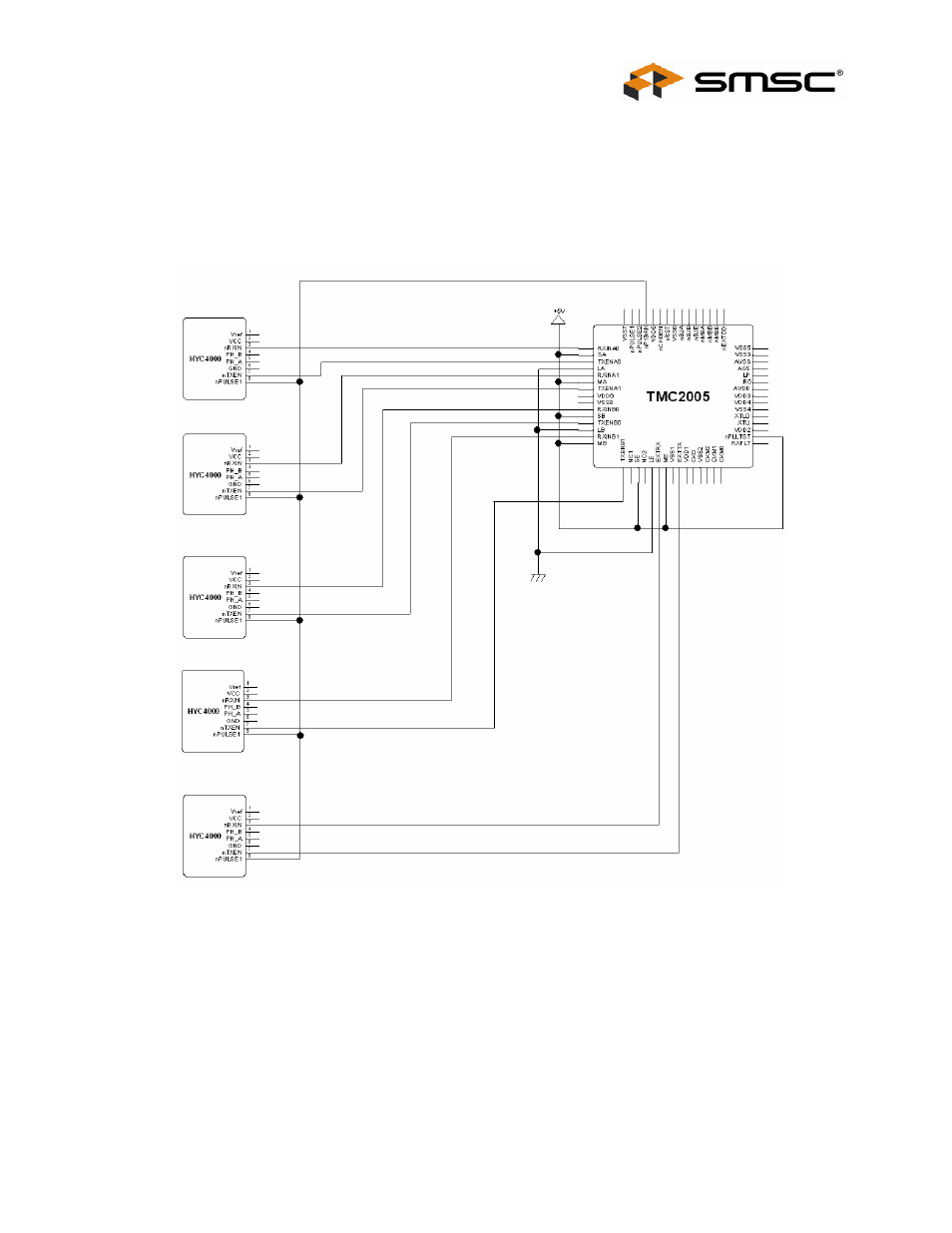

Example 1: A five ports HUB with HYC4000s in backplane mode.
FIGURE 1 - APPLICATION EXAMPLE
Only the TMC2005 and five transceivers are indicated in the above figure. Connect the other pins adequately.
