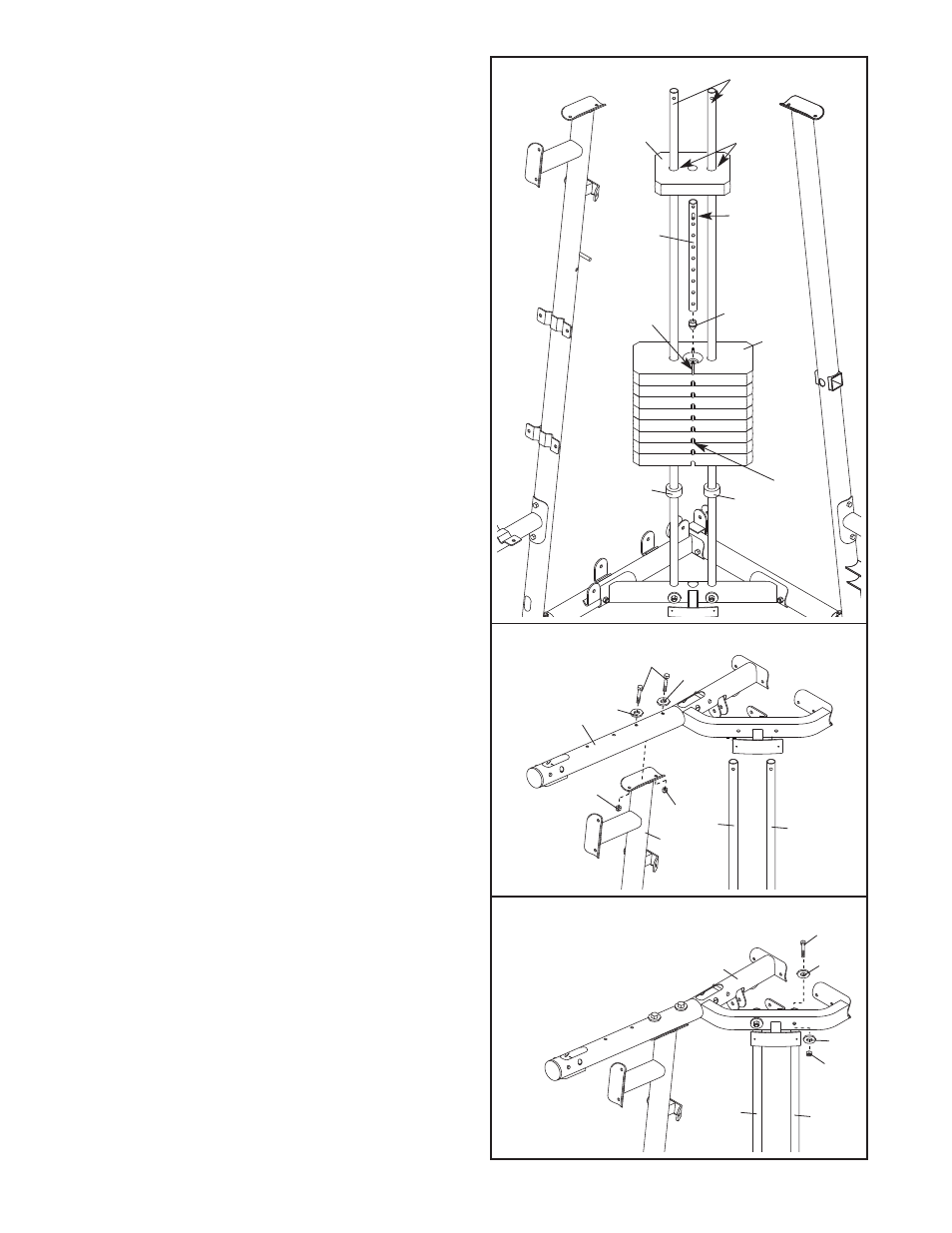

9. Slide two Weight Bumpers (45) onto the Weight
Guides (44). Slide the eight Weights (55), with the
pin holes on the indicated side, onto the Weight
Guides.
Press the Weight Tube Bumper (46) into the
Weight Tube (47). Insert the Weight Tube into the
stack of Weights (55).
Make sure the pin on the
Weight Tube sits in the groove in the top
Weight.
Grease the indicated holes in the Top Weight (56)
with an included grease pack. Slide the Top
Weight onto the Weight Guides (44).
10. Attach the Right Top Frame (5) to the Right
Upright (2) with two M8 x 78mm Bolts (82), two
M8 Washers (98), and two M8 Nylon Locknuts
(91).
Do not tighten the Locknuts yet. Make
sure the Weight Guides (44) are behind the
Right Top Frame.
11. Attach a Weight Guide (44) to the Right Top
Frame (5) with an M8 x 78mm Bolt (82), two M8
Washers (98), and an M8 Nylon Locknut (91).
Do
not tighten the Locknut yet.
Repeat this step with the other Weight Guide
(44).
