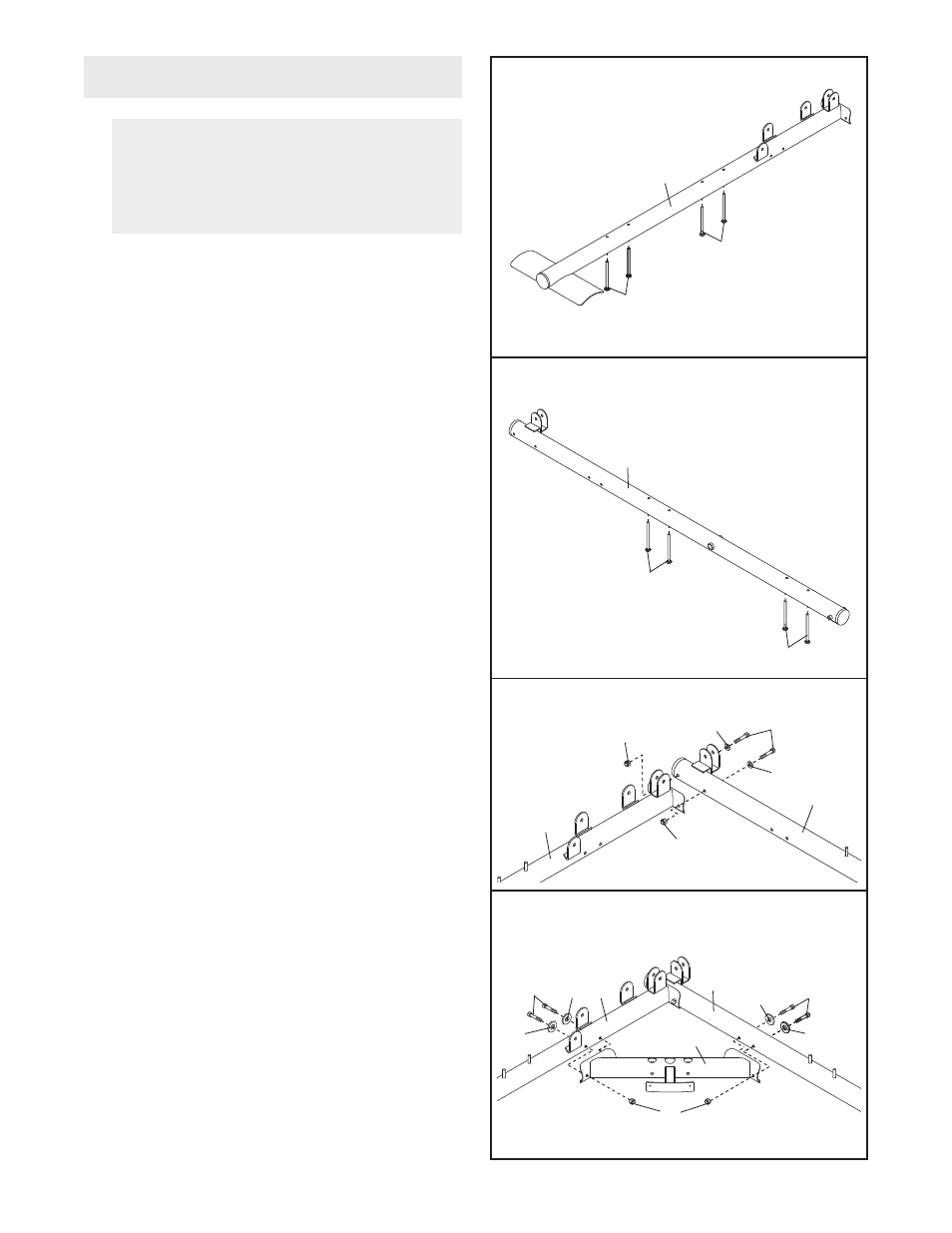

1.
Insert four M8 x 75mm Carriage Bolts (69) up
through the Right Base (1).
Note: It may be
helpful to place a piece of tape over each bolt
head to hold it in place.
3. Attach the Right Base (1) to the Left Base (25)
with two M8 x 78mm Bolts (82), two M8 Washers
(98), and two M8 Nylon Locknuts (91).
Do not
tighten the Locknuts yet.
4. Attach the Center Base (52) to the Right Base (1)
with two M8 x 78mm Bolts (82), two M8 Washers
(98), and an M8 Nylon Locknut (91).
Do not
tighten the Bolts yet.
Attach the Center Base (52) to the Left Base
(25) in the same manner.
2. Insert four M8 x 75mm Carriage Bolts (69) up
through the Left Base (25).
Note: It may be help-
ful to place a piece of tape over each bolt
head to hold it in place.
1
2
3
4
1
69
25
69
25
25
91
91
98
98 82
82 98
98
98
1
98
82
52
91
1
69
69
Before beginning assembly, make sure you
understand the information in the box on
page 5. See the PART IDENTIFICATION
CHART in the center of this manual for help
identifying small parts.
Frame Assembly
