Sears 831.154020 User Manual
Page 11

11

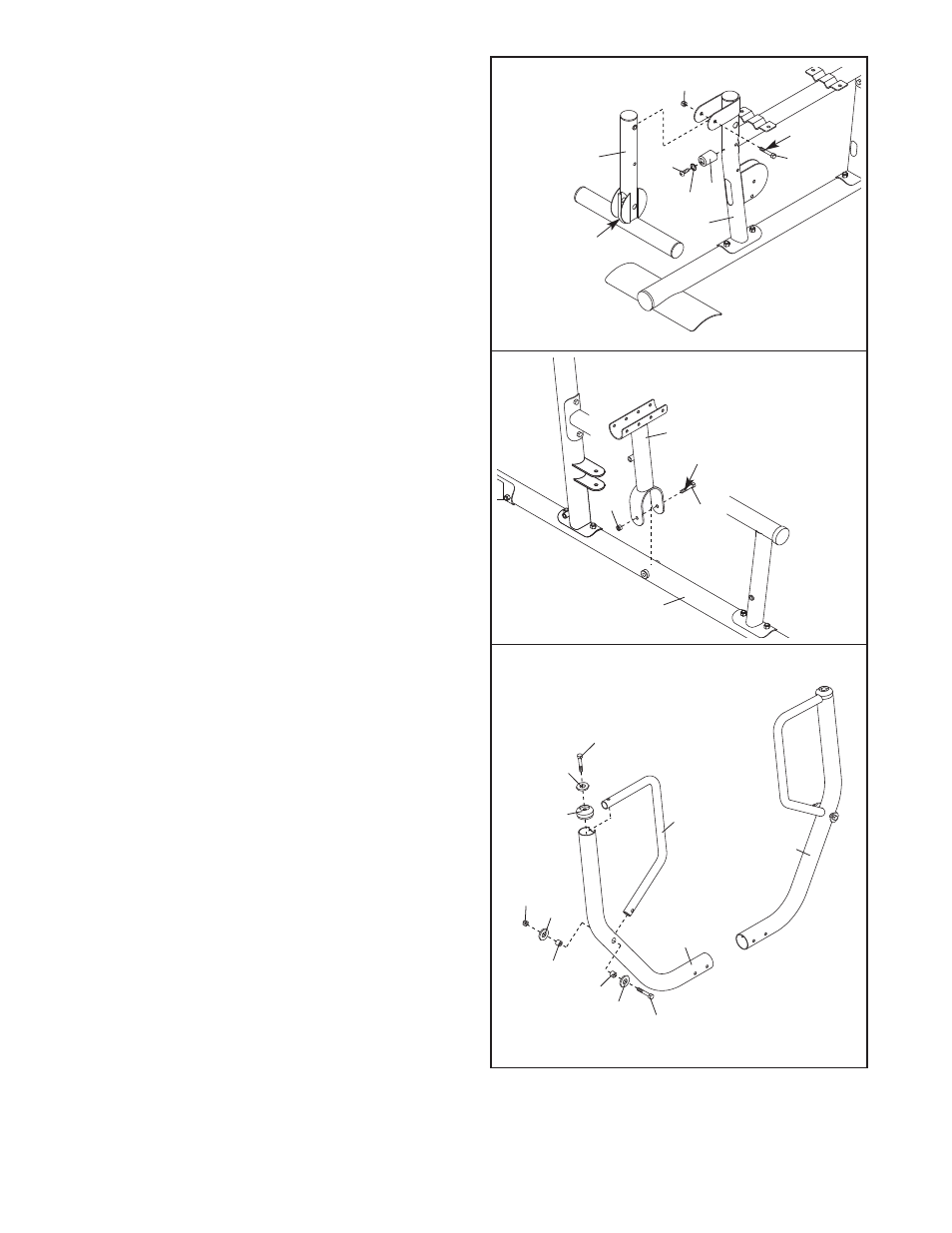

16. Attach the Leg Bumper (59) to the Right Seat
Frame (3) with an M4 x 16mm Self-tapping Screw
(89) and an M4 Washer (96).
Grease an M10 x 75mm Bolt (60). Attach the Leg
Lever (4) to the Right Seat Frame (3) with the
Bolt and an M10 Nylon Locknut (90).
Make sure
the “U”-rod is on the indicated side of the Leg
Lever. Do not overtighten the Locknut; the
Leg Lever must be able to pivot easily.
18. Attach a Press Handle (32) to a Press Arm (30)
with an M10 x 65mm Bolt (77), two M10 Washers
(99), two M10 x 12mm Spacers (101), and an
M10 Nylon Locknut (90).
Attach a Press Arm Cap (34) to the Press Arm
(30) with an M10 x 45mm Button Bolt (81) and an
M10 Large Washer (100).
Repeat this step with the other Press Arm
(30).
17. Grease an M10 x 108mm Bolt (72). Orient the
Press Frame (29) as shown. Attach the Press
Frame to the Left Base (25) with the Bolt and an
M10 Nylon Locknut (90).
Do not overtighten the
Locknut; the Press Frame must be able to
pivot easily.
16
17
18
4
59
96
89
90
60
3
Grease
29
72
90
Grease
25
30
32
34
100
30
77
99
99
90
101
101
81
“U”-rod
