CABLE DIAGRAMS

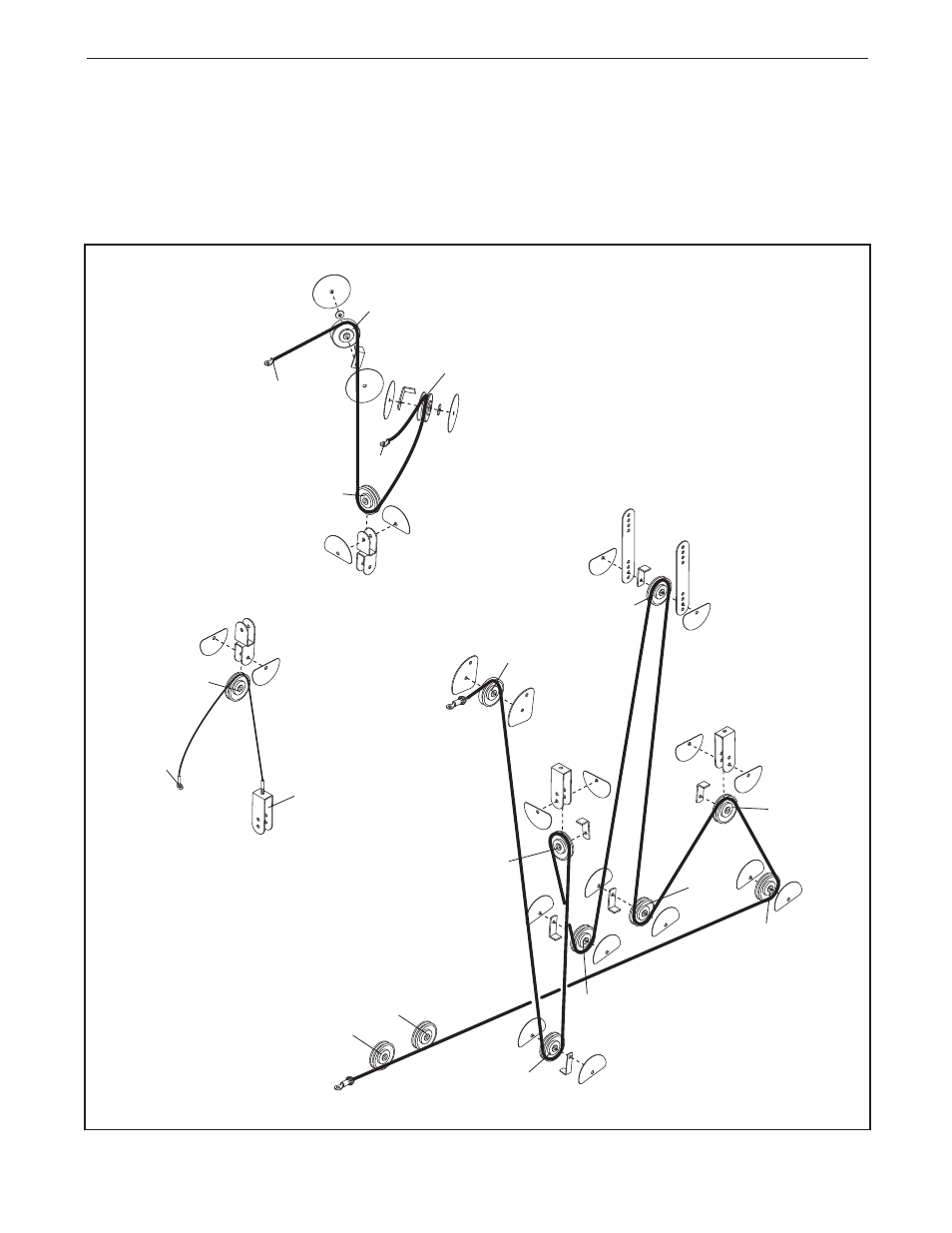

The cable diagrams below show the proper routing of the Butterfly Cable (106), the Ab Cable (107), the Short
Cable (108), the Press Cable (109), and the Weight Cable (110). Use the diagram to make sure that the cables
and the cable traps have been assembled correctly. If the cables have not been correctly routed, the weight
bench will not function properly and damage may occur. The numbers show the correct route for each cable.
Make sure that the cable traps do not touch or bind the cables.
1
2
4
5
1
2
3
Short Cable (108)
Length: 3 feet 11 inches
Butterfly Cable (106)
Length: 5 feet
Ab Cable (107)
Length: 21 feet 1 inch
3
1
3
4
5
7
8
9
10
6
2
