-11-
W1747 20" Planer
SE
T
U
P

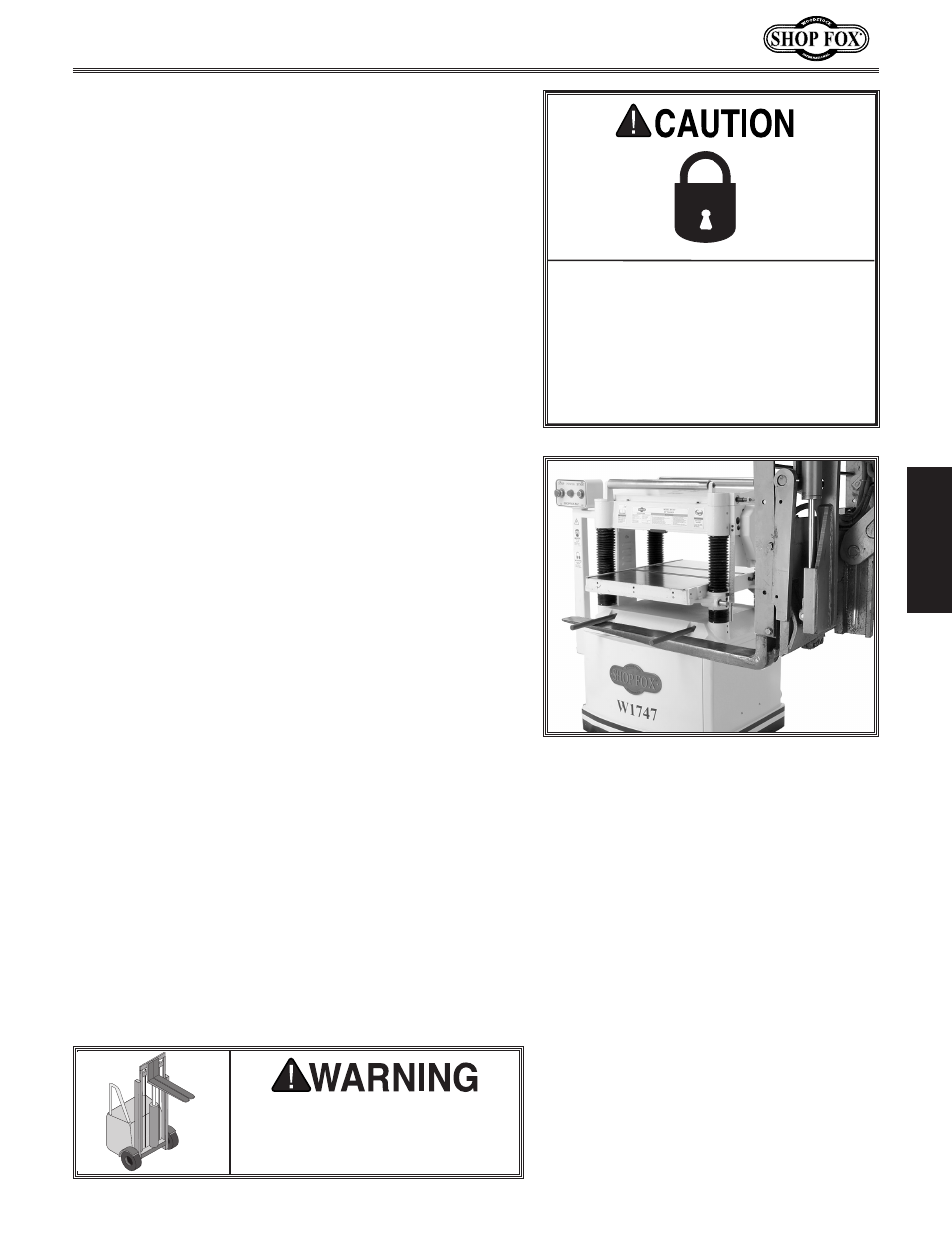

Figure 3. Example of planer being lifted
using forklift.
MAKE your shop “child safe." Ensure
that your workplace is inaccessible to
youngsters by closing and locking all
entrances when you are away. NEVER
allow untrained visitors in your shop
when assembling, adjusting or operat-
ing equipment.
The cabinet stand on the Model W1747 is equipped with
lifting bars (see Page 5) to lift and place the planer.
When lifting the planer with a forklift, we recommend
placing shop rags or cardboard between the forks and
cabinet base so you do not scratch the paint.
Figure 3 shows an example of a typical planer with lifting
bars being lifted correctly with a forklift.
• Floor Load: This machine distributes a heavy load in
a small footprint. Some floors may require additional
bracing to support both machine and operator.
• Working Clearances: Consider existing and
anticipated needs, size of material to be processed
through the machine, and space for auxiliary stands,
work tables or other machinery when establishing a
location for your planer.
• Lighting: Lighting should be bright enough to
eliminate shadow and prevent eye strain.
Machine Placement
Lifting Planer
USE power lifting equipment to
lift this planer. Otherwise, seri-
ous personal injury may occur.
Hardware and Tools
• Hex Wrenches 3, 4, 5, 6mm .............................4
• Wrenches 8/10, 12/14, 17/19mm ......................3
• Set Screws M8-1.25 x 20 (Wings) ........................6
• Hex Bolts M8-1.25 x 25 (Wings) .........................6
• Handwheel Bushing (Handwheel) .......................1
• Handwheel Handle (Handwheel) ........................1
• Hex Nut M12-1.75 (Handwheel) ........................ 1
• Flat Washer 12mm (Handwheel) ........................1
• Key 4 x 4 x 10mm (Handwheel) .........................1
• Cap Screws M6-1 x 12 (Dust Hood) .....................6
• Flat Washers 6mm (Dust Hood) .........................6
If any parts are missing, examine the packaging for the
missing parts. For any missing parts, find the part num-
ber in the back of this manual and contact Woodstock
International, Inc. at (360) 734-3482 or at tech-
[email protected]
