This machine has been carefully packaged for safe
transportation. If you notice the machine has been
damaged during shipping, please contact your authorized
Shop Fox dealer immediately.
Unpacking
SETUP
The following is a description of the main components
shipped with the Model
W1756/W1757. Lay the
components out to inventory them.
Note: If you can't find an item on this list, check the
mounting location on the machine or examine the
packaging materials carefully. Occasionally we pre-install
certain components for safer shipping.
Box Inventory (Figure 7)
Qty
A. Sanding Belt 100 Grit .....................................1
B. Sanding Belt 180 Grit .....................................1
C. Dust Ports 4" (Model W1756) ............................5
Dust Ports 4" (Model W1757) .......................... 10
D. Platen Felt ..................................................1
E. Platen Graphite Flaps .....................................2
F. Tool Box .....................................................1
— Phillips Head Screwdriver #2 .........................1
— Standard Screwdriver #2 ..............................1
— Open-End Wrench 8/10mm ...........................1
— Open-End Wrench 12/14mm ..........................1
— Open-End Wrench 17/19mm .........................1
— Metric Hex Wrench Set 10 Pcs. .......................1
— Door Keys ................................................2
— Ceramic Limit Switch Rub Rods ......................2
— Flexible Grease Gun Extension .......................1
— Platen Removal Tool ...................................1
Inventory

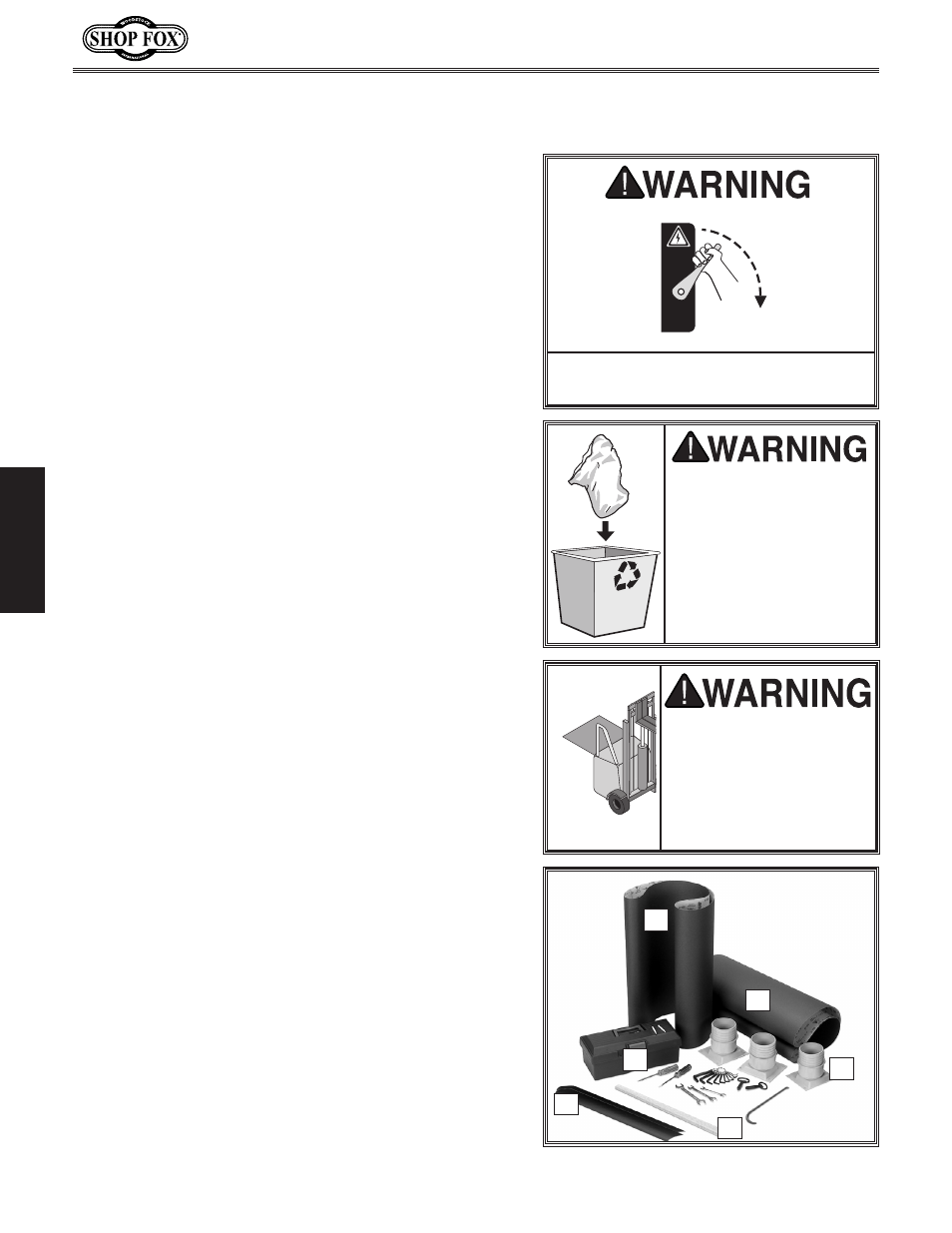

Figure 7. Parts and tool inventory.
C
B
A
D
E
F
SUFFOCATION
HAZARD!
Immediately discard
all plastic bags and
packing materials to
eliminate
choking/
suffocation hazards for
children and animals.
The Model W1756/W1757
is a heavy machine
weighing over 2400 lbs.
Use power or hydraulic
equipment to avoid
serious personal injury
or death.
