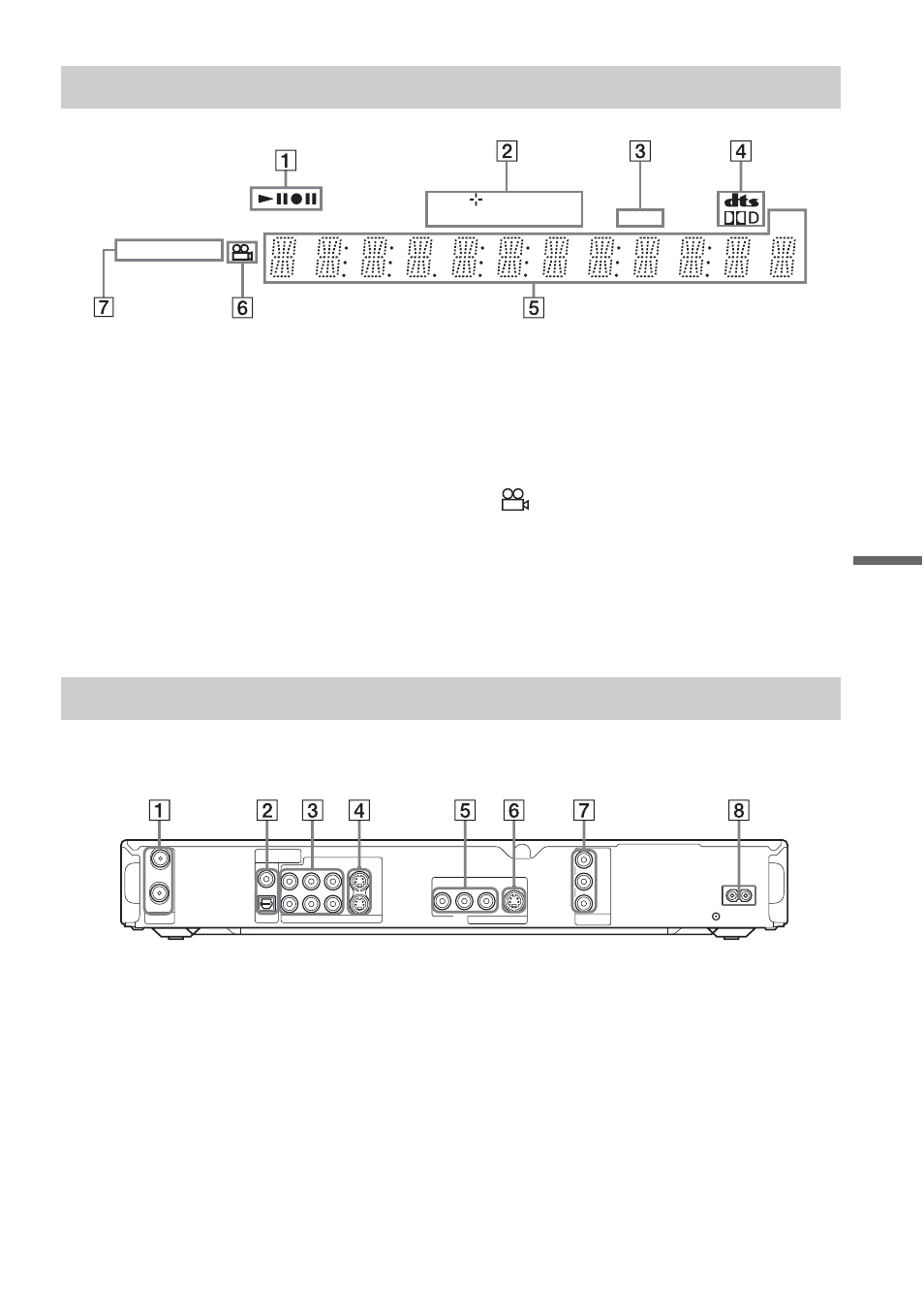

A Playing/recording status.
B Disc type*/recording format
C SAP (Second Audio Program) indicator
(41)
D Audio signal indicators (34)
E Displays the following (35):
• Playing time/remaining time
• Current title/chapter/track/index number
• Recording time/recording mode
• Clock
• Channel
F
(angle) indicator (53)
G PROGRESSIVE indicator (17)
* Displays DATA CDs as “CD.”
z Hint
You can turn off the front panel display when the recorder is turned off by setting “Dimmer” to “Power Save” in
“Options” setup (page 82).
A VHF/UHF IN/OUT jacks (12)
B DIGITAL OUT (COAXIAL/OPTICAL)
jacks (18)
C LINE IN 1/3 (R-AUDIO-L/VIDEO) jacks
(26)
D LINE IN 1/3 (S VIDEO) jack (26)
E LINE OUT (R-AUDIO-L/VIDEO) jacks
(16, 18)
F LINE OUT (S VIDEO) jack (16)
G COMPONENT VIDEO OUT (Y, P
B
/C
B
,
P
R
/C
R
) jacks (16)
H AC IN terminal (19)
Front panel display
DVD RW VCD
VR SAP CH
PROGRESSIVE
Rear panel
COAXIAL
DIGITAL OUT
OPTICAL
PCM/DTS/DOLBY DIGITAL
VHF/UHF
IN
LINE IN COMPONENT
VIDEO OUT LINE OUT
VIDEO S VIDEO R-AUDIO-L
Y
~ AC IN OUT
1
3
VIDEO
S VIDEO
R-AUDIO-L
P B / C B
P R / C R
