A [/1 (on/standby) button (23)
B Front panel display (35, 97)
C Disc tray (29)
D TIMER REC indicator (41)
SYNCHRO REC indicator (48)
E A (open/close) button (29)
F (remote sensor) (20)
G H (play) button (51)
X (pause) button (53)
x (stop) button (51)
H z REC button (31)
X REC PAUSE button (31)
x REC STOP button (31)
I DV IN jack (70)
J ONE-TOUCH DUB button (71)
K ./> (previous/next) buttons (53)
L CHANNEL +/– buttons (31)
The + button has a tactile dot * .
M INPUT SELECT button (50, 70)
N REC MODE button (40)
O LINE 2 IN (S VIDEO/VIDEO/L(MONO)
AUDIO R) jacks (26)
* Use the tactile dot as a reference when operating the
recorder.

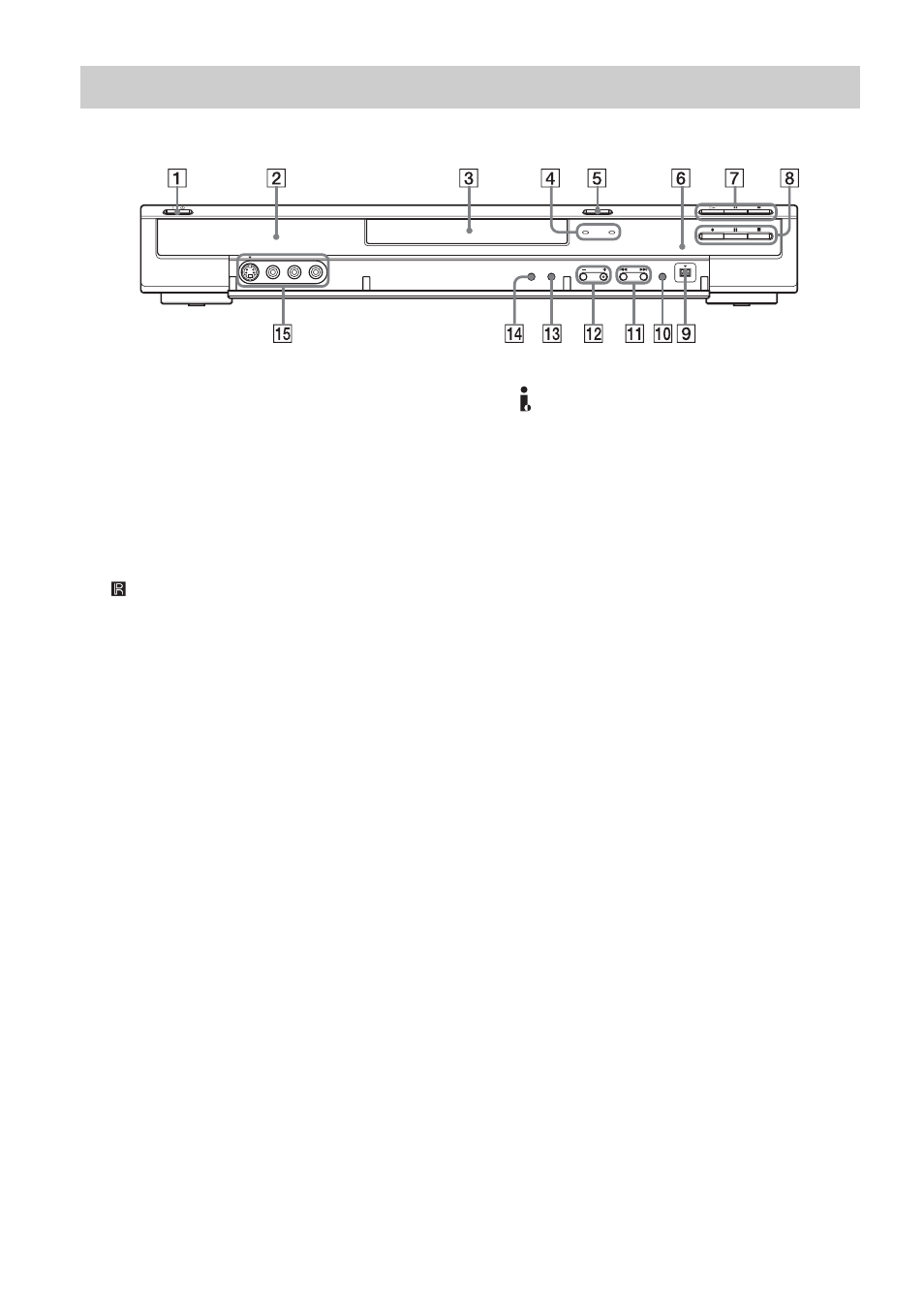

Front panel
