18

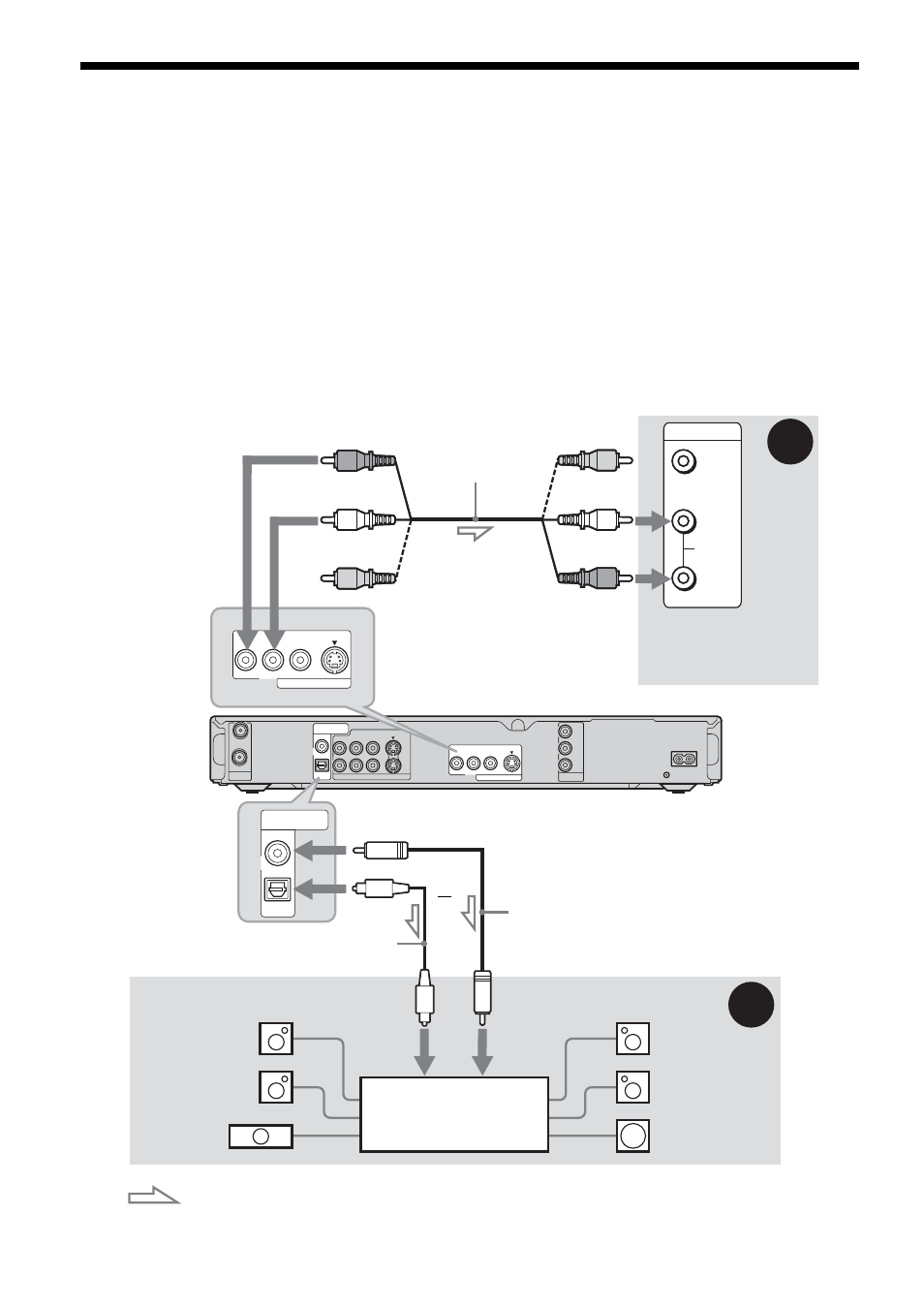

Step 4: Connecting the Audio Cords
Select one of the following patterns
A or B, according to the input jack on your TV monitor, projector,
or AV amplifier (receiver). This will enable you to listen to sound.
A Connecting to audio L/R (left/right) input jacks
This connection will use your TV’s or stereo amplifier’s (receiver’s) two speakers for sound. You can
enjoy the following surround effects (page 53).
• TV: Dynamic, Wide, Night
• Stereo amplifier (receiver): Standard, Night
B Connecting to a digital audio input jack
If your AV amplifier (receiver) has a Dolby *1 Digital or DTS *2 decoder and a digital input jack, use this
connection. You can enjoy Dolby Digital (5.1ch) and DTS (5.1ch) surround effects.
* The yellow plug is used for video signals (page 16).
VIDEO
AUDIO
INPUT
L
R
COAXIAL
DIGITAL OUT
OPTICAL
PCM/DTS/DOLBY DIGITAL
VHF/UHF
IN
LINE IN COMPONENT
VIDEO OUT LINE OUT
VIDEO S VIDEO R-AUDIO-L P B/ C B
Y
P R/ C R ~ AC IN OUT
1
3
VIDEO
S VIDEO
R-AUDIO-L
B
A
3 LINE OUT
VIDEO S VIDEO R-AUDIO-L
COAXIAL
DIGITAL OUT
OPTICAL
PCM/DTS/DOLBY DIGITAL
AV amplifier (receiver)
with a decoder
(red)
TV, projector, or AV
amplifier (receiver)
Audio/video cord
(supplied)
: Signal flow
Coaxial digital cord (not supplied)
to DIGITAL OUT (COAXIAL or OPTICAL)
to LINE OUT (R-AUDIO-L)
Optical digital cord (not supplied)
Rear (L)
DVD recorder
(white)
(yellow)*
(yellow)
(white)
(red)
[Speakers]
Front (L)
[Speakers] to coaxial digital
input
Rear (R)
Front (R)
Subwoofer Center
to optical digital
input
or
