97-6132, 97-6151 • REV. 11/04
OPERA
TOR’S MANU
AL
PRESSURE
W
ASHER
8
97-6132, 97-6151 • REV. 11/04
9
PRESSURE
W
ASHER
OPERA
TOR’S MANU
AL
Safety
Latch

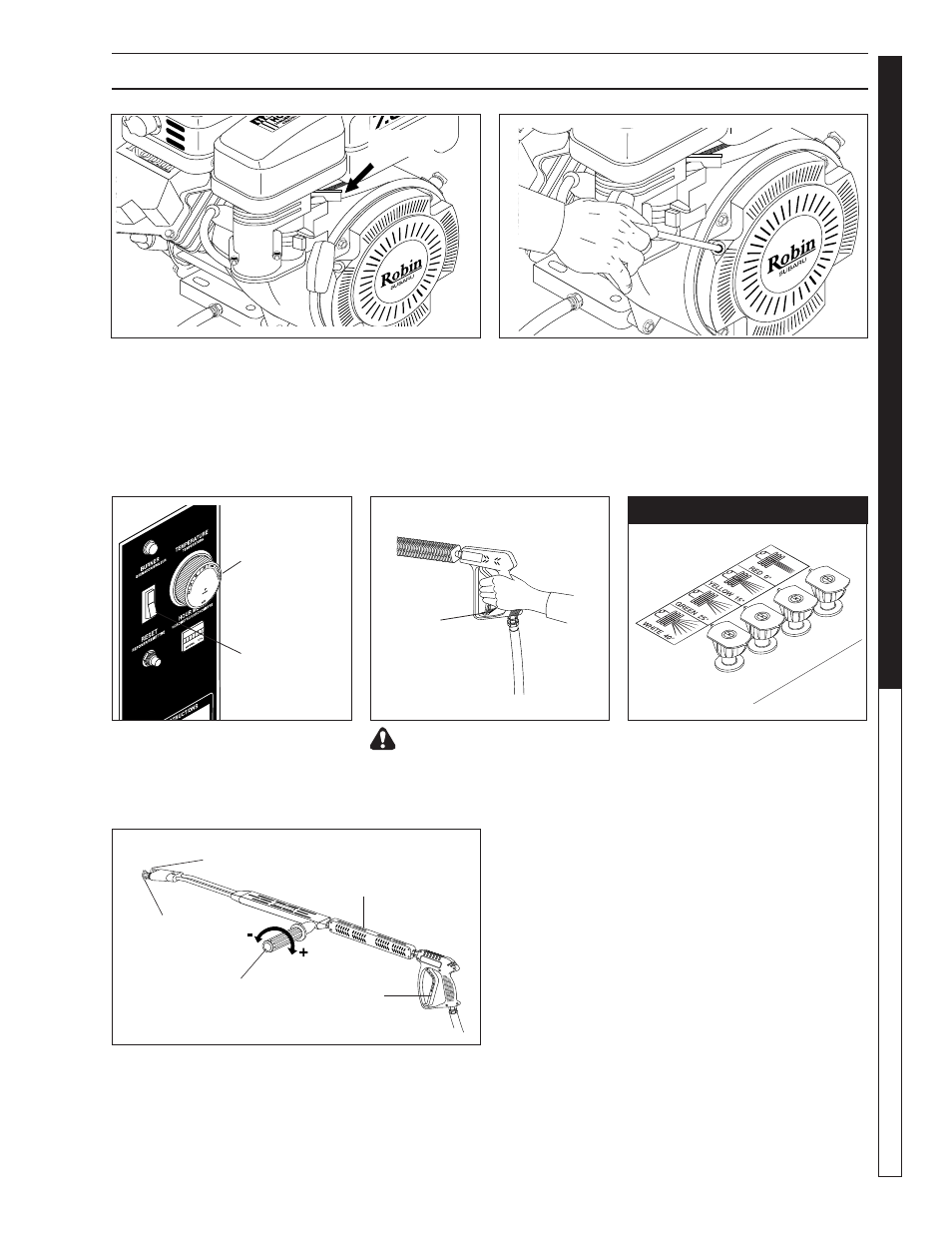

STEP 7: Turn the engine to "Run" position. STEP 8: Pull the starter grip. If the engine fails to start
after 2 pulls, squeeze the trigger gun to release pres-
sure and repeat step. Return starter gently. After the
engine warms up enough to run smoothly, move choke
to run position and throttle to fast position.
CAUTION: Small engines may kick back. Do not
hold pull starter grip tightly in hand.
WARNING! Never replace
nozzles without engaging the
safety latch on the spray gun
trigger.
The four color-coded quick con-
nect nozzles provide a wide array
of spray widths from 0° to 45° and
are easily accessible when placed in
the convenient rubber nozzle holder,
which is provided on the front of the
machine.
N
OTE: For a more gentle rinse,
select the white 40° or green 25°
nozzle. To scour the surface, select
the yellow 15° or red 0° nozzle. To
apply detergent select the black
nozzle.
NOZZLES
Throttle
Temperature
Gauge
Burner
Switch
STEP 8: If hot water is required.
Adjust temperature gauge to proper
temperature (200°). Turn on Burner
switch to begin heating water.
Selection of high or low pressure is accompanied by
turning the handle.
Note: High pressure nozzle must
be inserted at end of wand to obtain high pressure. To
apply soap read operator's manual.
Variable Pressure
Control Handle
Trigger
Variable Pressure
Wand (VP)
High
Pressure
Nozzle
Brass Soap
Nozzle
OPERATING INSTRUCTIONS
