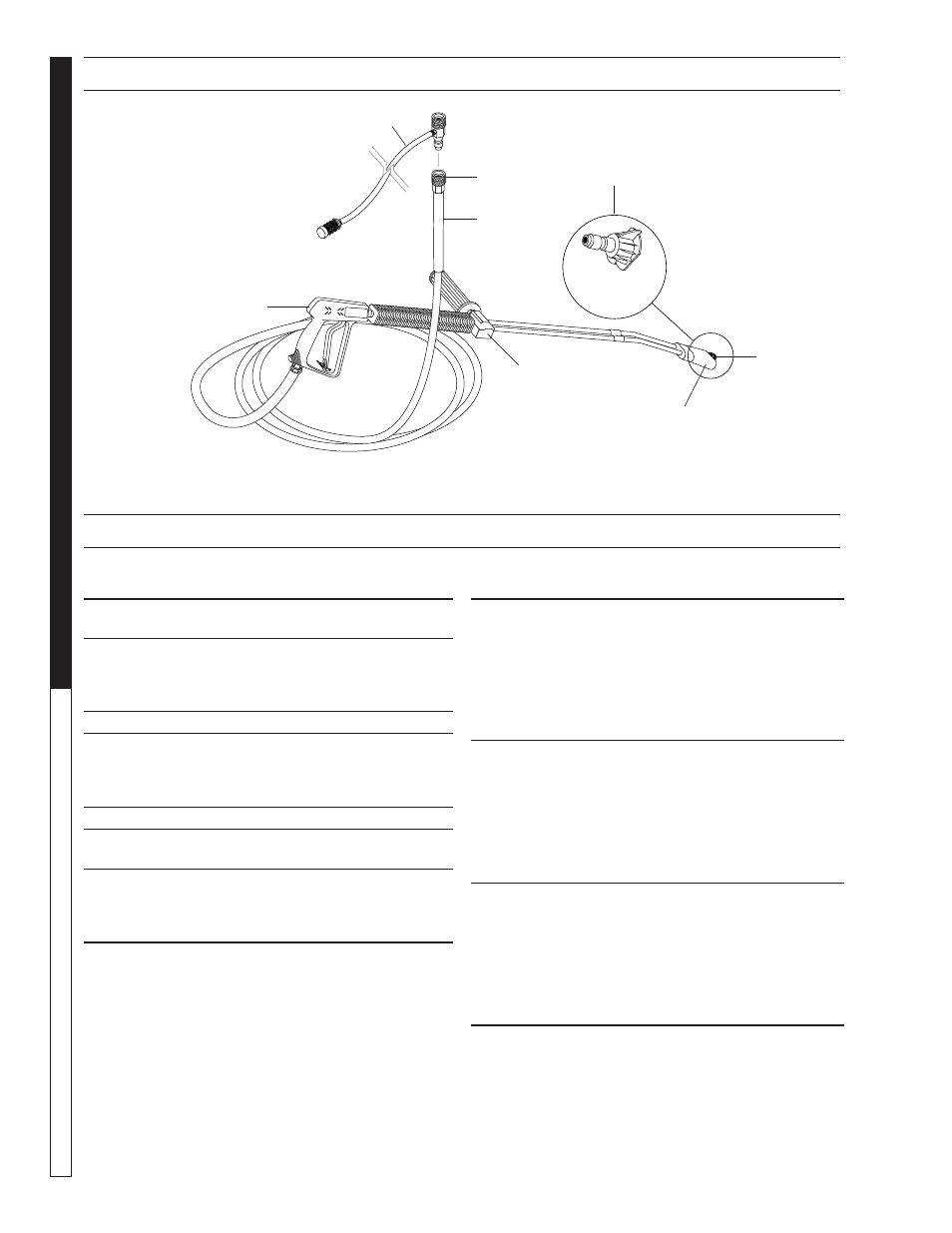

HOSE & SPRAY GUN ASSEMBLY
3
2
1
8
6
5
4
7
ITEM PART NO. DESCRIPTION QTY
1 2-2002 Coupler, 3/8" Female 1
2-0121  Quick Coupler O-Ring LG 1
2 4-02093450BC Hose, 3/8" x 50', 1 Wire, Blue
w/Coupler (All Except 4035) 1
4-02073450RC Hose Only, 3/8" x 50', 2 Wire,
Red w/Coupler (4035)
1
3 4-01246 Spray Gun, Shutoff, AP 1000 1
4 4-0111341A Wand, VP Zinc 1/4", W/Coupler,
W/Soap Nozzle
1
83-SSVPKIT  Repair Kit, VP Wand, SS
Seat 1
5 4-06540 Nozzle, 1/8", Soap Only, Brass 1
6 2-2001 Coupler, 1/4" Male
1
2-0119  Quick Coupler O-Ring Sm 1
7 4-011184 Detergent Injector Assy #3
(3030, 3530, 3530E, 4035E) 1
4-011183 Detergent Injector Assy #2
(3020, 3025)
1
Pressure
Nozzle
HOSE & SPRAY GUN PARTS LIST
ITEM PART NO. DESCRIPTION QTY
8 4-12803515 Nozzle, SAQMEG 1503.5, Yellow
(3020, 3025, 4035) 1
4-12803525 Nozzle, SAQMEG 2503.5, Green
(3020, 3025, 4035) 1
4-12803540 Nozzle, SAQMEG 4003.5, White
(3020, 3025, 4035) 1
4-12803500 Nozzle, SAQMEG 0003.5, Red
(3020, 3025, 4035) 1
4-12804015 Nozzle, SAQMEG 1504, Yellow
(3530) 1
4-12804025 Nozzle, SAQMEG 2504, Green
(3530) 1
4-12804040 Nozzle, SAQMEG 4004, White
(3530) 1
4-12804000 Nozzle, SAQMEG 0004, Red
(3530) 1
4-12803015 Nozzle, SAQMEG 1503, Yellow
(3030) 1
4-12803025 Nozzle SAQMEG 2503, Green
(3030) 1
4-12803040 Nozzle SAQMEG 4003, White
(3030) 1
4-12803000 Nozzle SAQMEG 0003, Red
(3030) 1
 Not Shown
