Shark SGP-3530E - Manual (Page 25)

97-6132, 97-6151 • REV. 11/04
OPERA
TOR’S MANU
AL
PRESSURE
W
ASHER
24
97-6132, 97-6151 • REV. 11/04
25
PRESSURE
W
ASHER
OPERA
TOR’S MANU
AL
ITEM PART NO. DESCRIPTION QTY
1 6-06070 Capacitor 1
2 6-0615 Regulator, Voltage, 15 Volt 1
3 95-07390109 Box, Electrical 1
90-1994  Screw, 10/32" x 1-1/4"
(Ground) 1
90-017  Nut, 10/32", KEPS 4
11-1042  Ground Label 1
4 95-07104960 Assy, Cover, Elec. Box 1
5 4-05088 Thermostat, Adjustable, 302°F 1
6 6-020590 Light, Indicator, Green 12V 1
7 6-020251 Switch, Curvette RA901VB-B-1-
V, Carling 1
8 4-050823 Meter, Hobbs Hour 1
9 6-03671 Relay, P & B, VF4-41F11,
12VDC, 40AMP 1
10 6-041250 Breaker, 1658-G41-02-P10-25A 1
ITEM PART NO. DESCRIPTION QTY
11 90-19708 Screw, 1/4" x 1-1/4" Hex, Whiz 1
12 90-19711 Screw, 1/4" x 1/2" HH NC,
Whiz Loc 2
13 90-200012 Nut, 1/4" Whiz Loc 2
14 90-2000 Nut, 1/4", ESNA, NC 1
15 90-19942 Screw, 10/32" x 3/4" Hex 2
16 2-90159 Clampt, Hose 1
17 90-2018 Nut Cage, 10/32" x 16 GA 2
18 11-0357 Label, Control Panel 1
19 90-4000 Washer, 1/4" 1
20 90-017 Nut, 10/32" Keps 4
21 90-1999 Screw, 10/32" x 3/4" 3
22 90-1991 Screw, 10/32" x 1/2" 1
23 2-011681 Cap, Capacitor, 1.37 x 1.50 x
.060 Blk, w/o Hole 1
24 10-990247 Label, Reset 1
5
4
6
22
7
10
9
20
16
12
11
8
15
21
2
20
19
14
13
23
1
3
17
Reversed
View
18

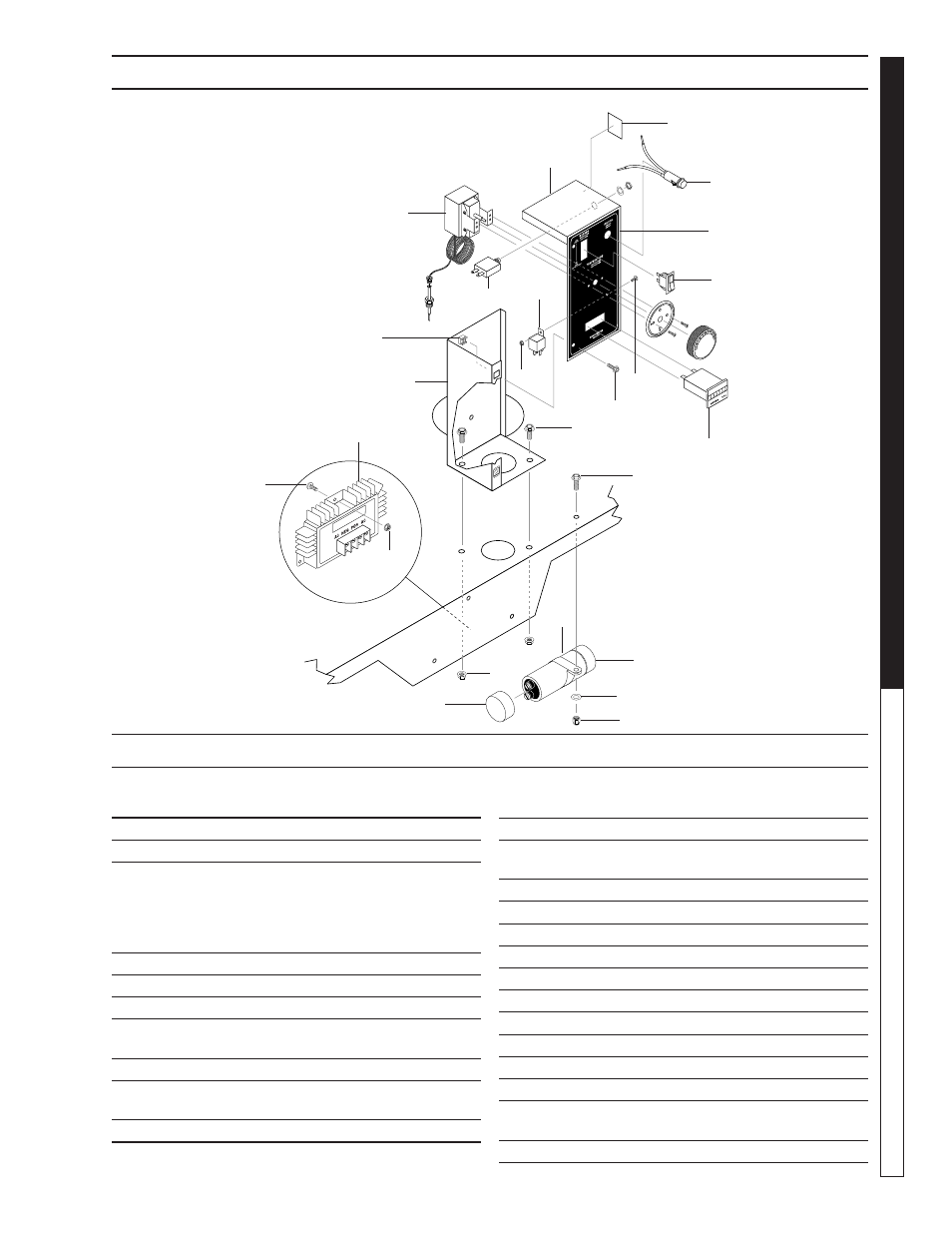

CONTROL PANEL EXPLODED VIEW - 3020, 3025 MODELS
3020, 3025 CONTROL PANEL PARTS LIST
24
