97-6132, 97-6151 • REV. 11/04
OPERA
TOR’S MANU
AL
PRESSURE
W
ASHER
6
97-6132, 97-6151 • REV. 11/04
7
PRESSURE
W
ASHER
OPERA
TOR’S MANU
AL

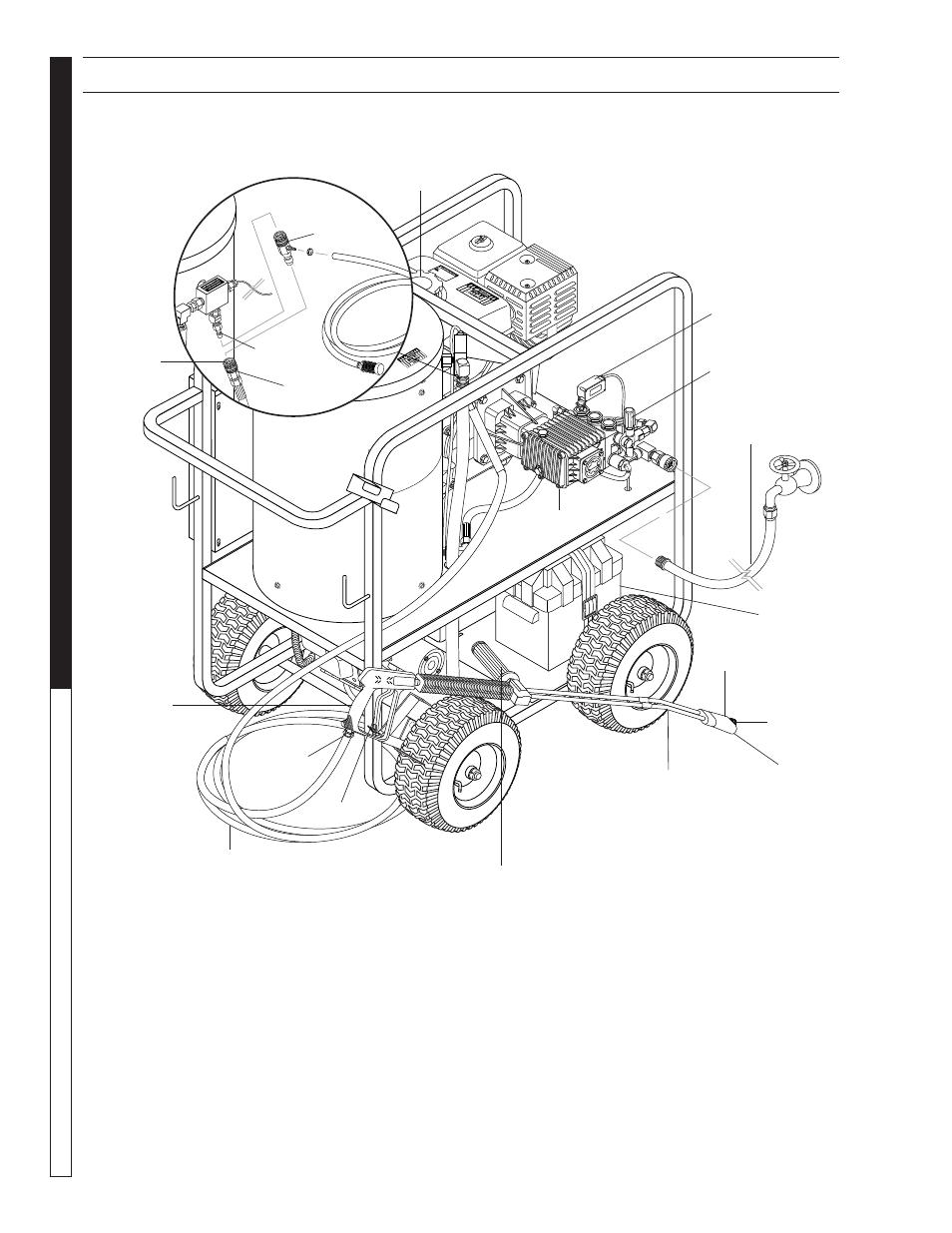

COMPONENT IDENTIFICATION
Pressure
Switch
Brass
Soap
Nozzle
Nozzle
Quick
Coupler
Spray Gun
High Pressure
Hose
Detergent
Injector
Quick
Coupler
Collar
Discharge
Nipple
Water Supply
Hose
(not included)
Gasoline
Tank
Wand
Coupler
Variable Pressure
Control wand
Control Wand
Handle
Trigger
Swivel
Connector
Unloader
Battery Box
Pump — Develops high pressure.
Starter Grip — (Not Shown) Used for starting the
engine manually.
Spray Gun — Controls the application of water and
detergent onto cleaning surface with trigger device.
Includes safety latch.
Detergent Injector — Allows you to siphon and mix
detergents. Variable Pressure Control Wand — Must be con-
nected to the spray gun. This wand handle controls
dishcharge flow from one tube to both wand tubes.
When water is discharged from both tubes you will have
a pressure loss and allows chemical siphoning when
used in combination with a detergent injector.
High Pressure Hose — Connect one end to water
pump discharge nipple and the other end to spray
gun.
Note: If trigger on spray gun is released for more than
2 minutes, water will leak from valve. Warm water will
discharge from pump protector onto floor. This system
prevents internal pump damage.
Pump
