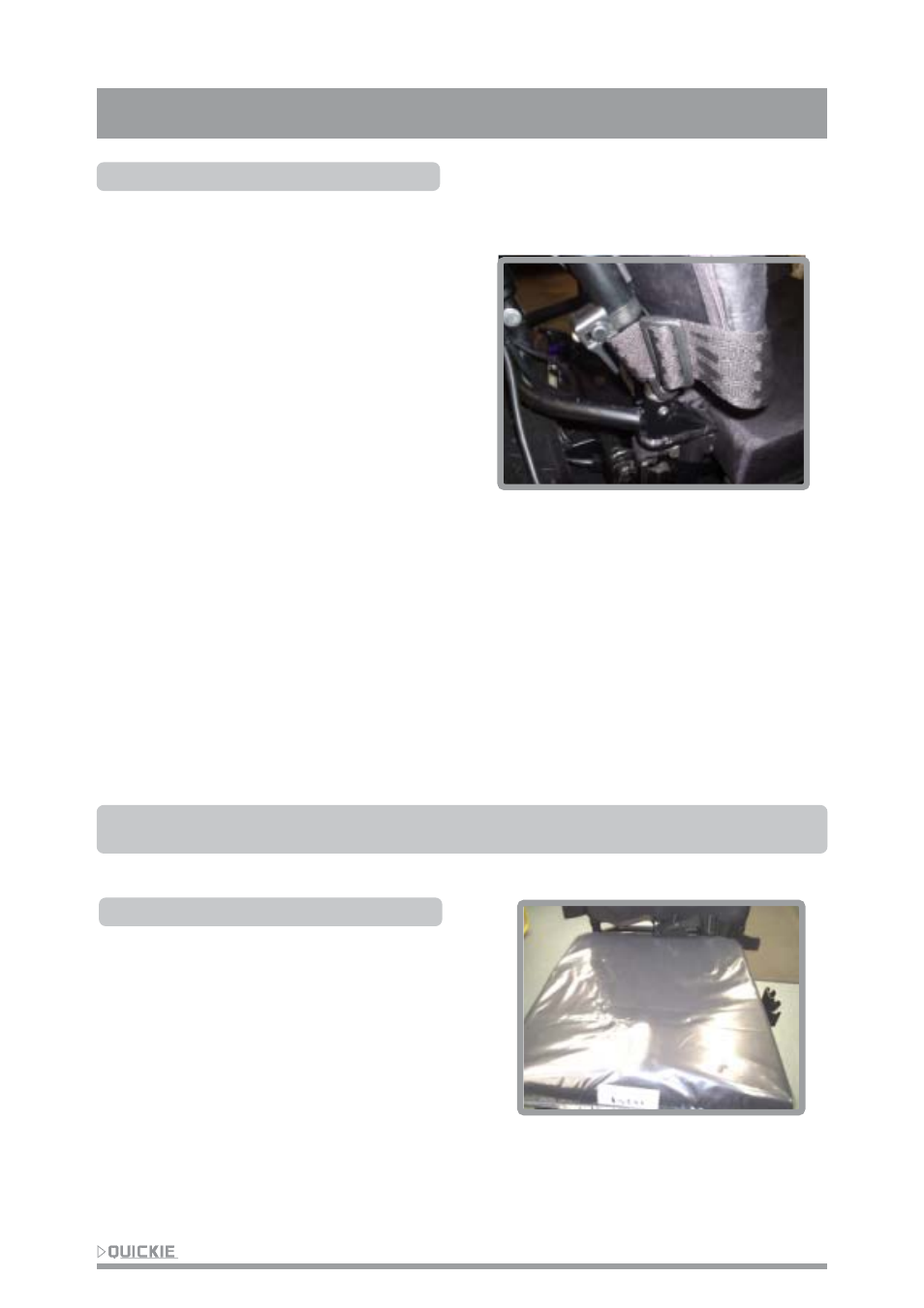

Step 4
Attach bottom universal bracket
(with slot facing downwards) to
back posts of wheelchair. Wrap the
metal strap around the back post.
Place a washer on the securing
screw, and insert the screw through
the appropriate hole in the strap.For
φ
1" tube use outer hole, for
φ
7/8"
tube, use inner hole.
Tighten the screw into the barrel nut
through the side of the post bracket
body. Snap the screw caps over
both screw heads.
Thread the positioning belt back
through the tri-glide to form a loop
around the back post. Thread
positioning strap through tri-glide.
Thread lap belt under universal
bottom bracket.
Lap belt instructions
Sling Back Option
Step 1
Place lap belt round chair.
