10 F45 Issue 6
Dedocking

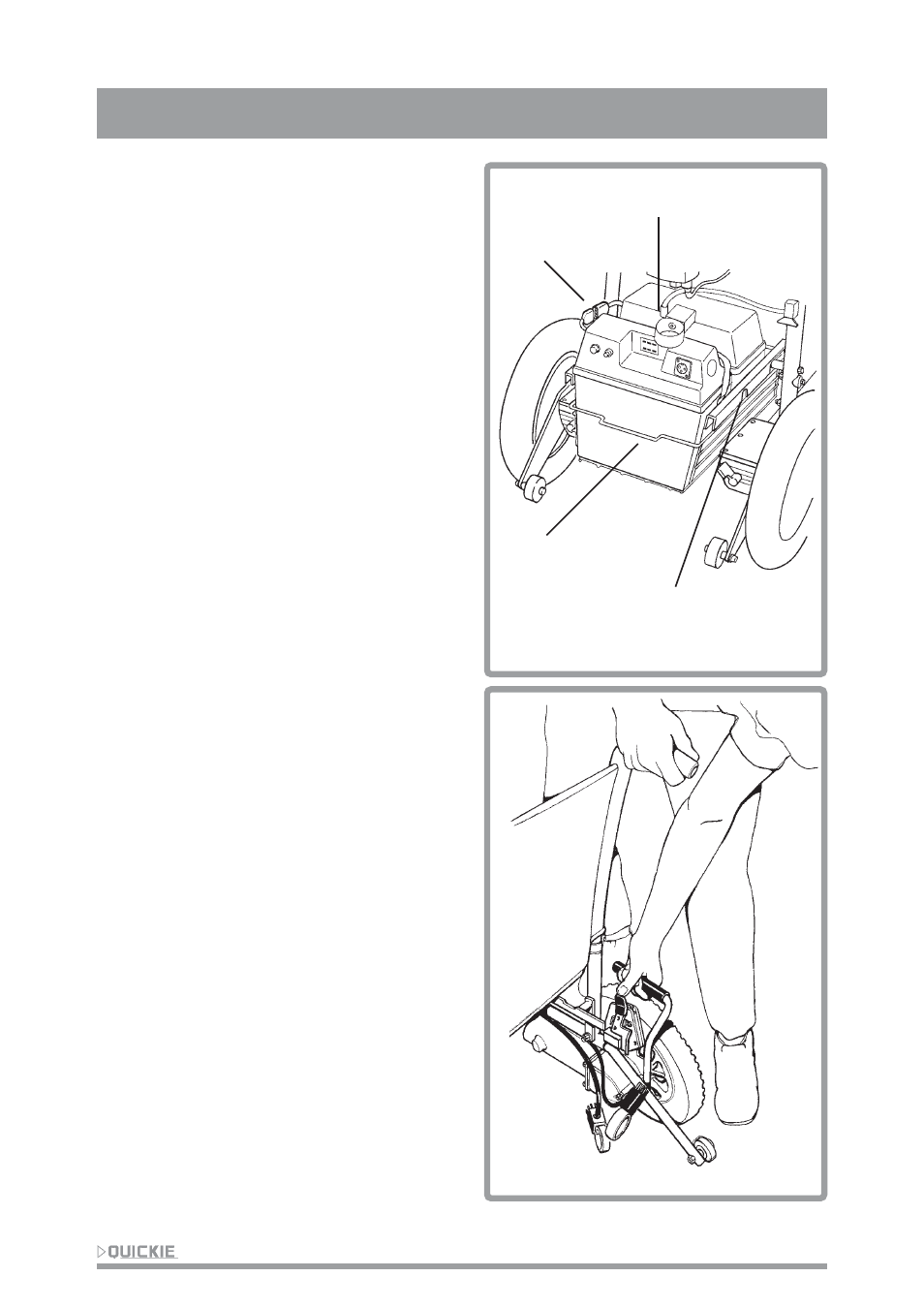

Fig. 7
6 pin connector
Battery
connection
plug
Rear handle
Rear runners
3. Disconnect the power lead 6 pin
plug from the rear battery (Fig. 7).
Lift and pull the battery basket
rear handle to gain access to the
batteries. Disconnect the battery
connection plug. Depress the
buckle lock to release the rear
battery and lift the battery out.
Unlock the retaining strap on the
front battery and lift it out.
4. Remove the battery basket.
5. Disconnect the motor power
supply plug (Fig. 7).
6. Lift and tilt the chair (Fig. 8), grip
the drive unit handle and push
down the dedocking trigger and
at the same time gently ease the
chair away from the motor unit.
Move the motor unit away from
the chair and repeat the process
on the other motor.
Fig. 8
