Footrests

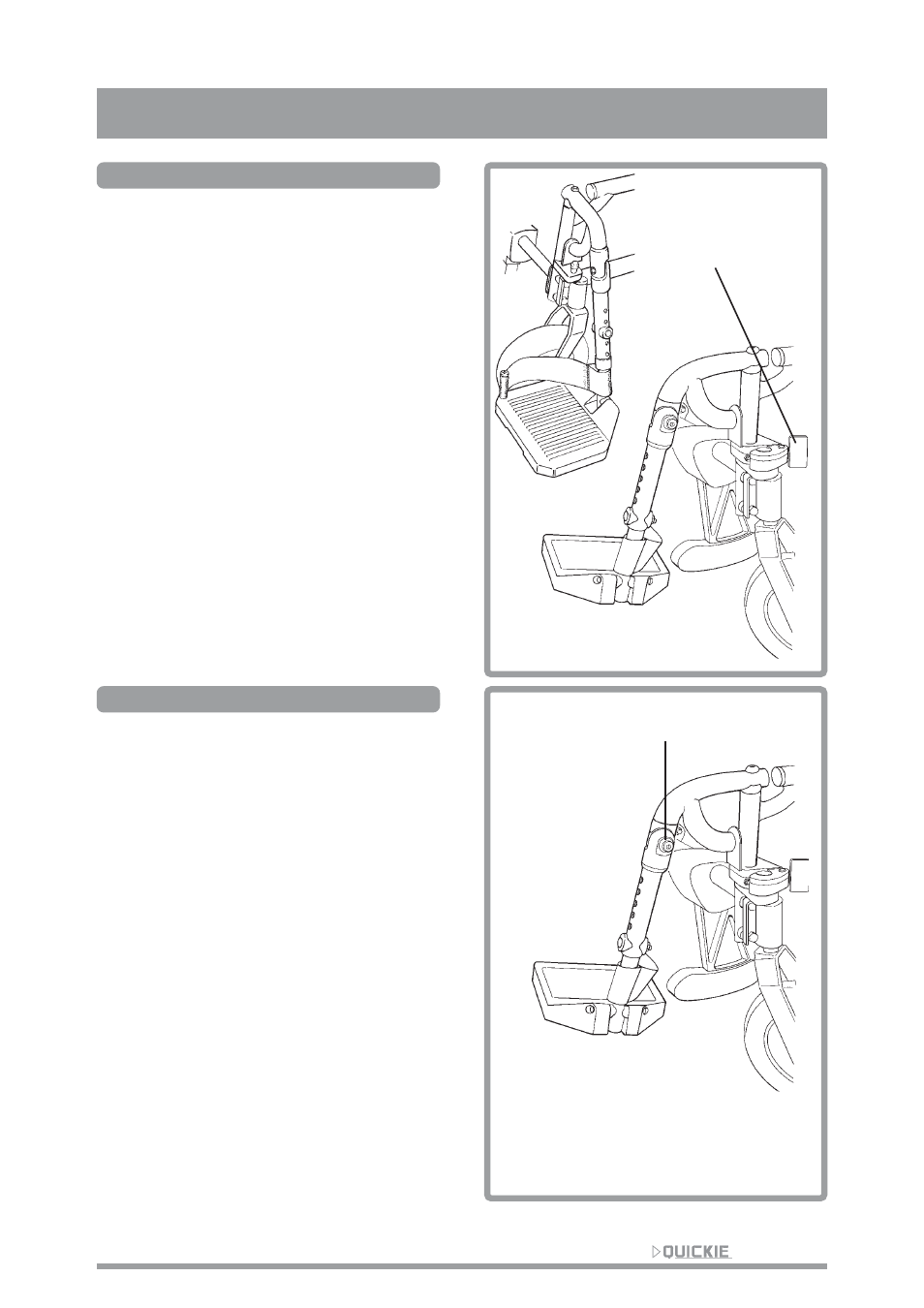

Fig. 13
Fig. 14
Footrest
The footrest assembly can be
removed by pulling the release
lever forwards and swinging the
footrest outwards and upwards.
To re-fit the footrest insert the top
into the vertical tube and swing
inwards until the release lever locks
into place (Fig. 13).
Adjusting the footrest angle
To adjust the angle simply loosen
the screw on the knuckle joint.
Move the footrest lower section to
the desired position and tighten the
screw (Fig. 14).
Note: Ensure the serrations in the
knuckle joint are correctly aligned
prior to tightening the screw, and
that the screw is firmly tightened
prior to use.
Footrest
release lever
Footrest angle adjustment screw
