18 | CHAPTER 3 – SETTING UP THE INTERACTIVE DISPLAY
Connecting External Equipment with the
Terminal Panels
The interactive display’s terminal panels enable you to connect external equipment to
the interactive display.

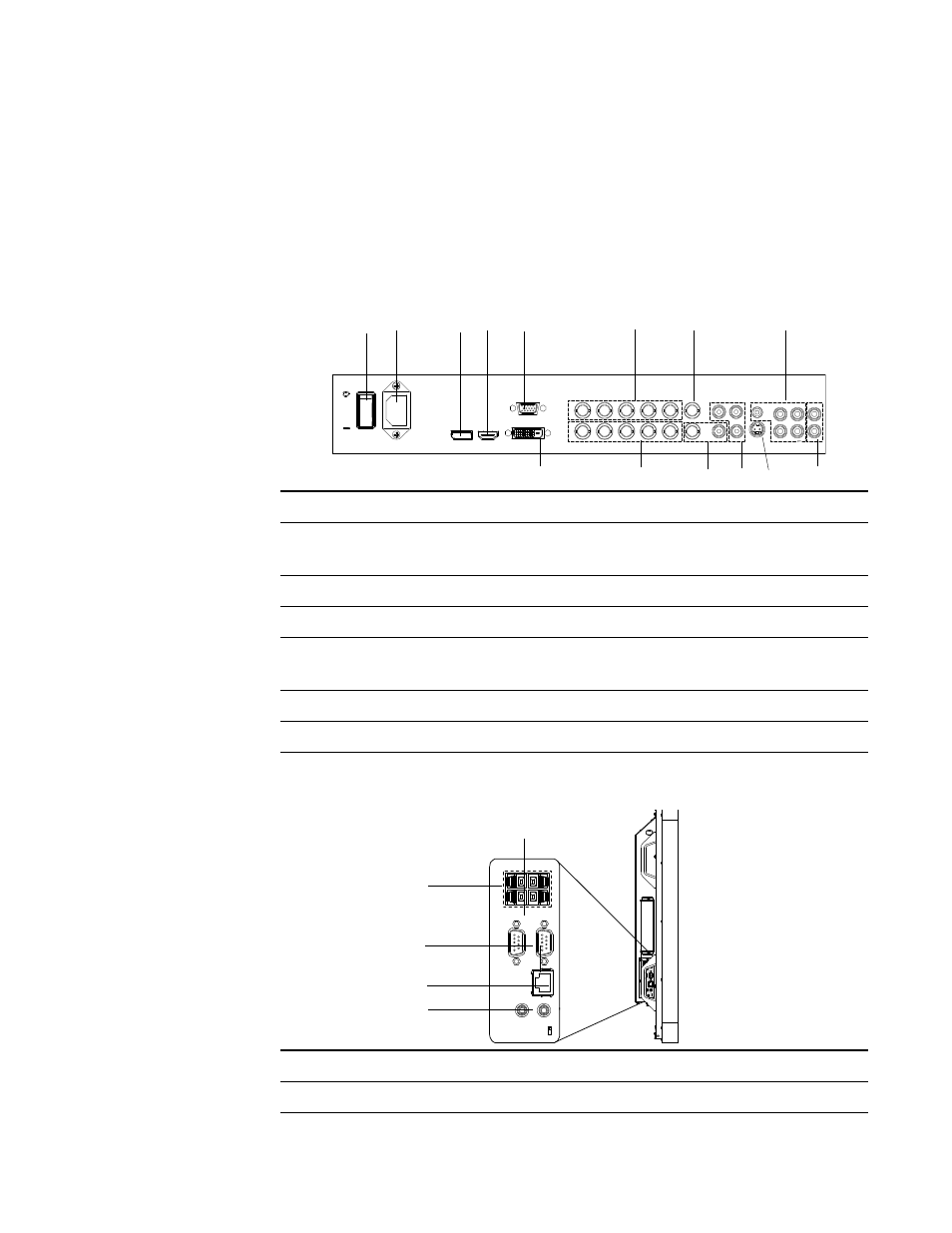

Bottom Terminal Panel
Side Terminal Panel
1 Main Power Switch 8 RGB/HV OUT (BNC)
2 AC IN connector 9 VIDEO IN connector (BNC and
RCA)
3 DISPLAYPORT connector 10 VIDEO OUT connector (BNC)
4 HDMI connector 11 DVD/HD connector (RCA)
5 DVI IN (DVI-D) 12 S-VIDEO IN connector (Mini DIN
4 pin)
6 VGA IN (mini D-Sub 15 pin) 13 AUDIO IN 1, 2, 3
7 RGB/HV IN [R, G, B, H, V] (BNC) 14 AUDIO OUT
15 External speaker terminal 16 LAN port (RJ-45)
16 External control (D-sub 9 pin) 18 Wired remote control in/out
1 4 2 3 6
5
8
7
10
9 11 14
13
12
16
17 5 7
15
18
