• You cannot control the DAY/NIGHT menu when AGC in the EXPOSURE menu is ‘OFF’.
At this time, the exchange between DAY mode and NIGHT mode operates as like
selecting ‘COLOR’ mode.
• The OSD key does not work for 3 seconds when switching to Color or B/W, to
ensure stable camera operation.
• The camera may focus less well under infrared illumination than under normal illumination.
Notes
EXTERN : This mode allows you to apply a desired filter to external signals.
* The brightness of illumination is changeable
by installed environment.
Operating Your Camera

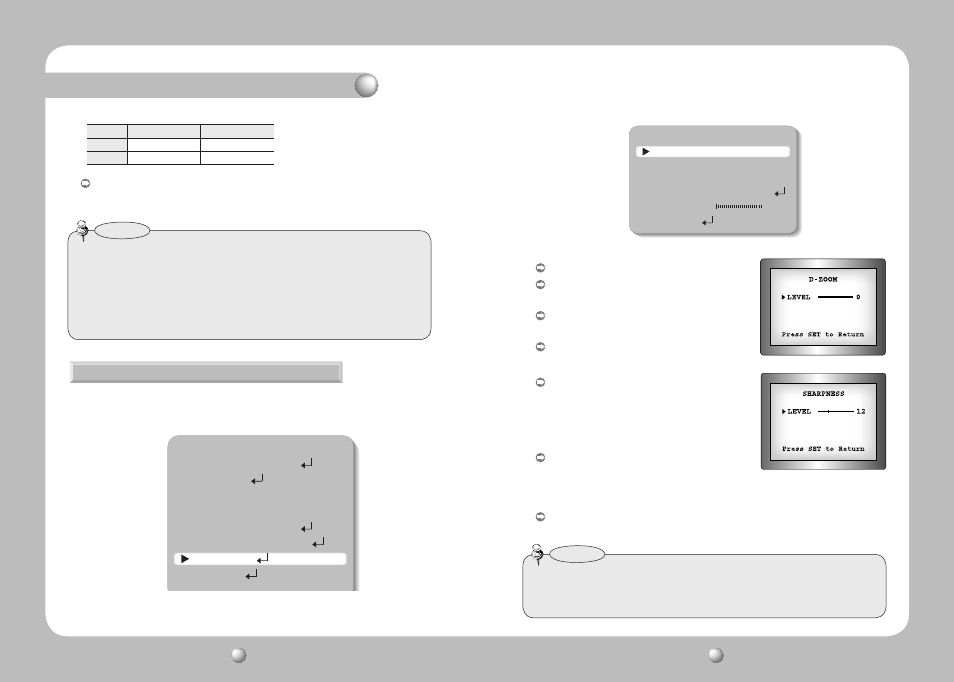

2. Select a desired mode using the Function Setup switch.
1. When the SETUP menu screen is displayed, select ‘IMAGE ADJ.’ by using the
Function Setup switch so that the arrow indicates ‘IMAGE ADJ.’
IMAGE ADJ.
FREEZE : You can view still or moving pictures.
V-REV : You can flip the picture vertically on the
screen.
H-REV : You can flip the picture horizontally on
the screen.
D-ZOOM : You can use a digital zoom of x2~x10.
SHARPNESS :
As you increase this value, the picture outline
becomes stronger and clearer. Adjust this value
appropriately depending on the sharpness of
the picture.
PED LEVEL : Please use this menu item when
using a LCD monitor other than
standard ones. You can change
PED LEVEL.
RETURN : Select this to save the settings for the IMAGE ADJ. menu and to
return to the SETUP menu.
• When the V-REV or H-REV mode is enabled, the text on the screen does not flip.
• If you increase the SHARPNESS level too high, the picture may become distorted or
noise may appear.
Notes
MAIN SETUP
1.LENS DC
2.EXPOSURE
3.WHITE BAL
ATW
4.BACKLIGHT OFF
5.SSNR ON
6.DAY/NIGHT AUTO
7.IMAGE ADJ
8.SPECIAL
IMAGE SETUP
1. V-REV OFF
2. H-REV OFF
3. D-ZOOM OFF
4. SHARPNESS ON
5. PED LEVEL 0
6. RETURN
Color →… B/W B/W →… Color
Fast 2.5 lux 4 lux
Slow 0.8 lux 6 lux
