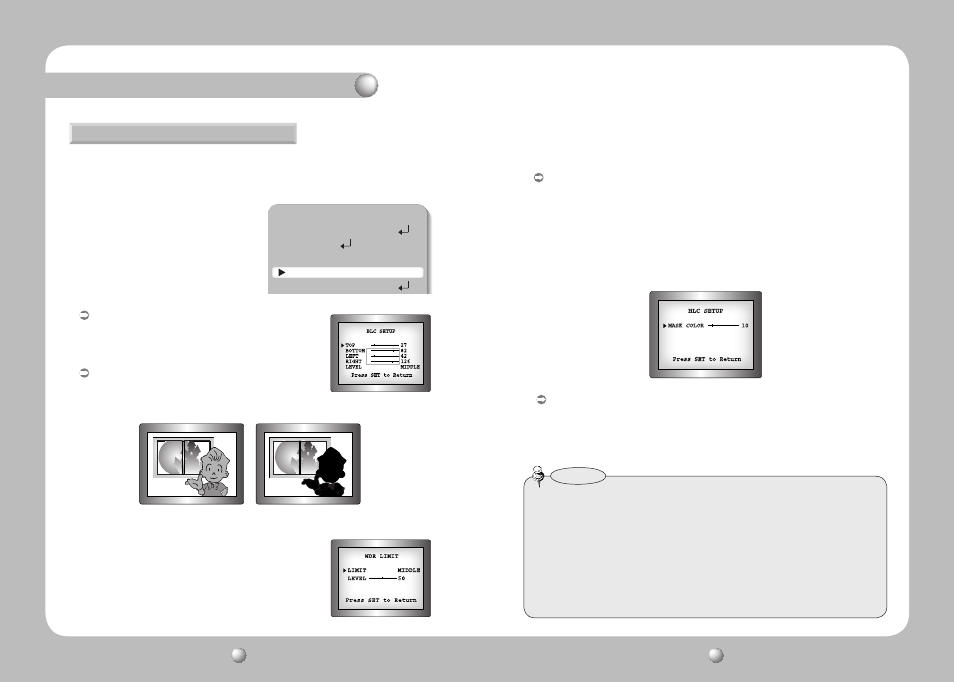

COLOR CCD CAMERA User Guide 18 COLOR CCD CAMERA User Guide 19
This camera is designed so that it delivers a distinctive subject and background at
the same time, even when the subject is in backlight, unlike conventional cameras,
by adopting a proprietary SV-IV DSP chip.
1. When the SETUP menu screen is
displayed, select ‘BACKLIGHT’ by using the
Function Setup switch so that the arrow
indicates ‘BACKLIGHT‘.
2. Select a desired mode using the Function
Setup switch depending on the camera
purpose.
Operating Your Camera
BACKLIGHT
OFF : Not being used.
3. Select a desired mode using the Function Setup switch and press the SET button.
WDR OFF
• Select ‘WDR’ to adjust the WDR LIMIT and LEVEL.
HLC(High Light Compensation) :
If the scene contains extremely bright light areas such as; from car headlight,
the light can mask out much of the on-screen detail.
- DAY : in normal daylight conditions, the HLC is not activated.
- NIGHT : lf a high light that is larger than a certain size is present on the screen,
HLC is activated to remove the high light.
- HLC : Enable a user to select a mask color of high light area from a picture.
- LIMIT : Adjust the WDR Sensitivity by selecting LOW,
MIDDLE, or HIGH.
- LEVEL : Adjust the WDR Brightness by controlling the
bar from 1 to 100.
• The WDR compensates for backlight more effectively than previous models,
by applying an optimum fusion ratio when combining the high speed shut
ter used in bright areas and the low speed shutter used in dark areas.
• Since the following symptoms may occur according to the ambient illumination when
WDR is selected, set it to OFF.
❶ … Color or screen changes unnaturally.
2 … Noise appears in the bright part of the screen.
• Since the performance of the WDR function may be affected by the area of the bright part
of the screen, optimize the installation angle for the best WDR performance.
• If you increase LIMIT, the screen display may be distorted.
• In a dark environment, the HLC is only activated when a high light that is larger than a
certain area is present.
• The HLC is not activated in light or overly dark conditions.
Notes
MAIN SETUP
1.LENS DC
2.EXPOSURE
3.WHITE BAL ATW
4.BACKLIGHT OFF
5.SSNR ON
BLC : Enables a user to directly select a desired area
from a picture, and to view the area more clearly.
• Select ‘BLC’ to adjust the area to be enhanced and
enhancement level.
WDR : When there are both bright and dark areas at
the same time, this mode makes both areas
distinctive.
