Undercounter Installation

8

Installation

IMPORTANT NOTE:

If the undercounter unit has been laid

on its back or side, you must allow the unit to stand upright

for a minimum of 24 hours before connecting power.

With the undercounter unit near the installation opening,

plug the power cord into the electrical outlet. With power

applied to the unit, check for lighting and cooling. Once

you are satisfied that the unit is operating properly, shut

off power to the electrical outlet at the circuit breaker and

proceed.

LEVEL THE UNIT

Level the unit before sliding it into position. Leveling

cannot be completed with the unit pushed back in the

installation opening.

Using an adjustable wrench or pliers, turn each of the four

leveling legs clockwise to raise the unit and counterclock-

wise to lower the unit. For the location of the leveling legs,

refer to the illustration.

POSITION THE UNIT

Slide the undercounter unit back into position in the

installation opening. Make sure it contacts the anti-tip

bracket for a stable installation.

The undercounter unit provides the best access to its

contents when the front surface of the door panel extends

out from surrounding cabinets approximately

1

/

4

"

(6)

.

WATER LINE CONNECTION (MODEL UC-24CI)

For model UC-24CI, connect the plastic tubing from the

ice maker to the house water supply line with the fitting

connection kit, provided. Check all water line fittings for

leaks.

Purge the water line prior to final connection to the unit.

This will remove any debris that may be present in the

tubing from installing the new water line.

IMPORTANT NOTE:

Let your customer know that the ice

maker will not produce ice immediately, and that the first

few batches of ice produced should be discarded. Allow

24 hours for proper ice production.

IMPORTANT NOTE:

Water lines must not be exposed to

freezing temperatures. Exposure could cause damage to

the unit and home.

INSTALL KICKPLATE

Install the kickplate using the two #10 x

1

/

2

" stainless steel

screws that are provided with the kickplate. Refer to the

illustration below.

The kickplate must be removed for servicing. The floor

cannot interfere with removal. Do not cover the louvered

section of the kickplate to allow proper air circulation.

Turn power back on to the electrical outlet.

To reduce the possibility of the unit tipping forward, the

front leveling legs must be in contact with the floor.

LEVELING LEGS

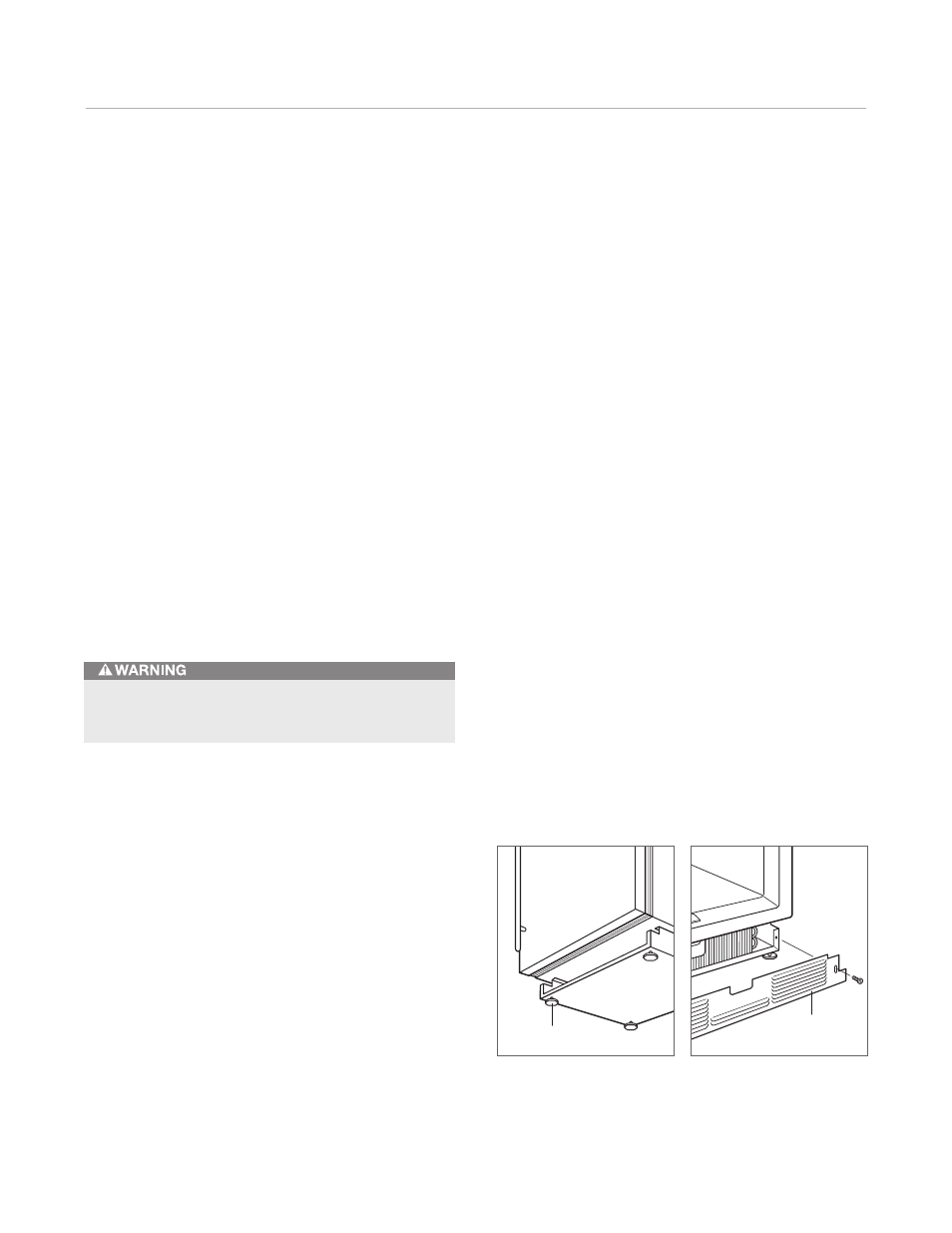

Location of leveling legs.

Kickplate installation.

KICKPLATE
