Undercounter Installation

12

Hinge Adjustment

IMPORTANT NOTE:

The undercounter unit should be

properly leveled before door hinge adjustments are made.

The top and bottom cabinet hinges are held in place with

three permanent adjustment screws. If the door needs

adjustment, loosen the adjustment screws and reposition

the door. Once in position, tighten the adjustment screws.

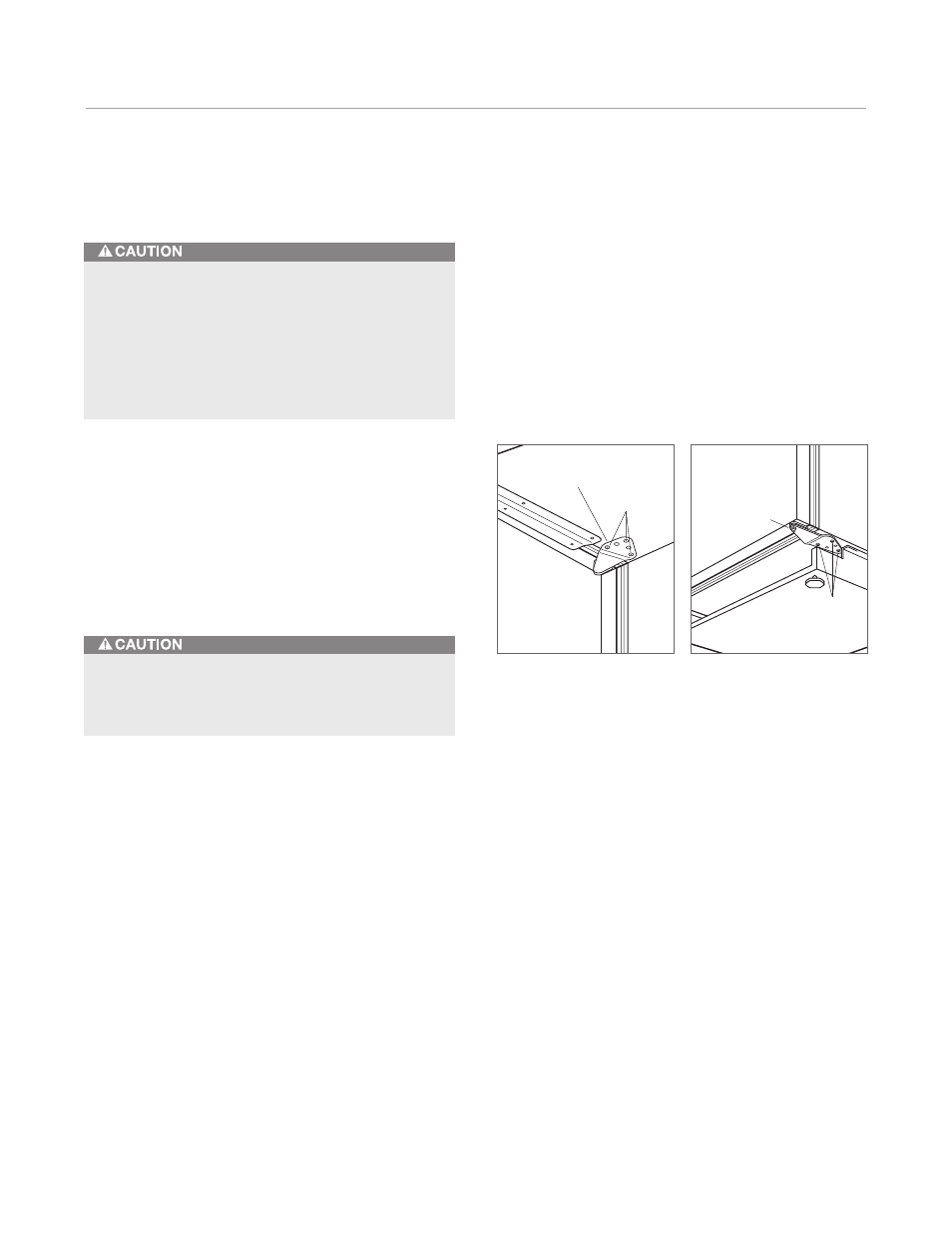

Refer to the illustrations below.

TOP DOOR

HINGE

ADJUSTMENT

SCREWS

Top hinge adjustment.

Bottom hinge adjustment.

ADJUSTMENT

SCREWS

BOTTOM

DOOR HINGE

Overlay Panel Installation

IMPORTANT NOTE:

For model UC-24BG, install screws in

all the mounting holes in the door frame. The nature of the

door panel with a narrow outer rim and no connecting

center member requires the support provided by the glass

door.

After the door panel installation is complete, apply the

cover patches or plugs provided over the holes on the

inside surface of the door.

The cover patches or plugs are part of the insulation

system on the door of the undercounter unit. Be sure to

cover all the holes in the door that were used.

The model UC-24BG glass door is made with a sealed,

double-wall tempered glass core. The drill must not

contact this core when drilling. Be sure the hole is

centered on the small groove in the front of the door

frame and the drill passes squarely through the frame.

If you are inexperienced with drilling, fasten the handle

from the rear of the door panel only.
