Unpack the Unit

Before moving the undercounter unit into position, make

sure all opening dimensions, electrical and plumbing

requirements are complete and accurate.

IMPORTANT NOTE:

The floor under the undercounter unit

must be at the same level as the surrounding finished floor

to allow for removal of the unit for servicing.

Use an appliance dolly to move the undercounter unit near

the installation opening. Position the dolly at the side of

the unit to prevent damage to finished surfaces. Remove

and discard all packing materials and tape.

IMPORTANT NOTE:

Do not discard the kickplate, anti-tip

bracket, hardware and the shipping bolts that hold the

wood to the bottom of the unit (leveling legs). These items

will be needed for the installation.

For models UC-24BG and UC-24C(I), the roller-assembly

wine shelves should be removed to reduce weight and

prevent them from rolling. To remove, pull the shelf out to

its full extension, gently and evenly lift up on both sides of

the front of the shelf and remove. Reverse the procedure

to reinstall the shelf.

Undercounter Installation

7

subzero.com/specs

Before moving the undercounter unit into position,

protect any finished flooring with appropriate materials

and secure the door closed.

Anti-Tip Bracket

An anti-tip bracket and hardware is provided with the

undercounter unit. Placement of the anti-tip bracket is

critical to a stable installation. The anti-tip bracket must be

installed securely.

The anti-tip bracket should be attached to the wall behind

the unit with the bracket flange located immediately above

the top of the unit. Refer to the illustration below.

For installations that cannot accommodate the anti-tip

bracket, the optional countertop bracket (provided) can

be used to secure the undercounter unit. This bracket will

secure the front of the unit to the underside of the coun-

tertop, above the unit. Refer to the illustration below. If it is

not possible to use the countertop bracket, wedge shims

along the sides and top of the unit to secure.

To prevent the unit from tipping forward and provide a

stable installation, the unit must be secured in place

with the anti-tip bracket.

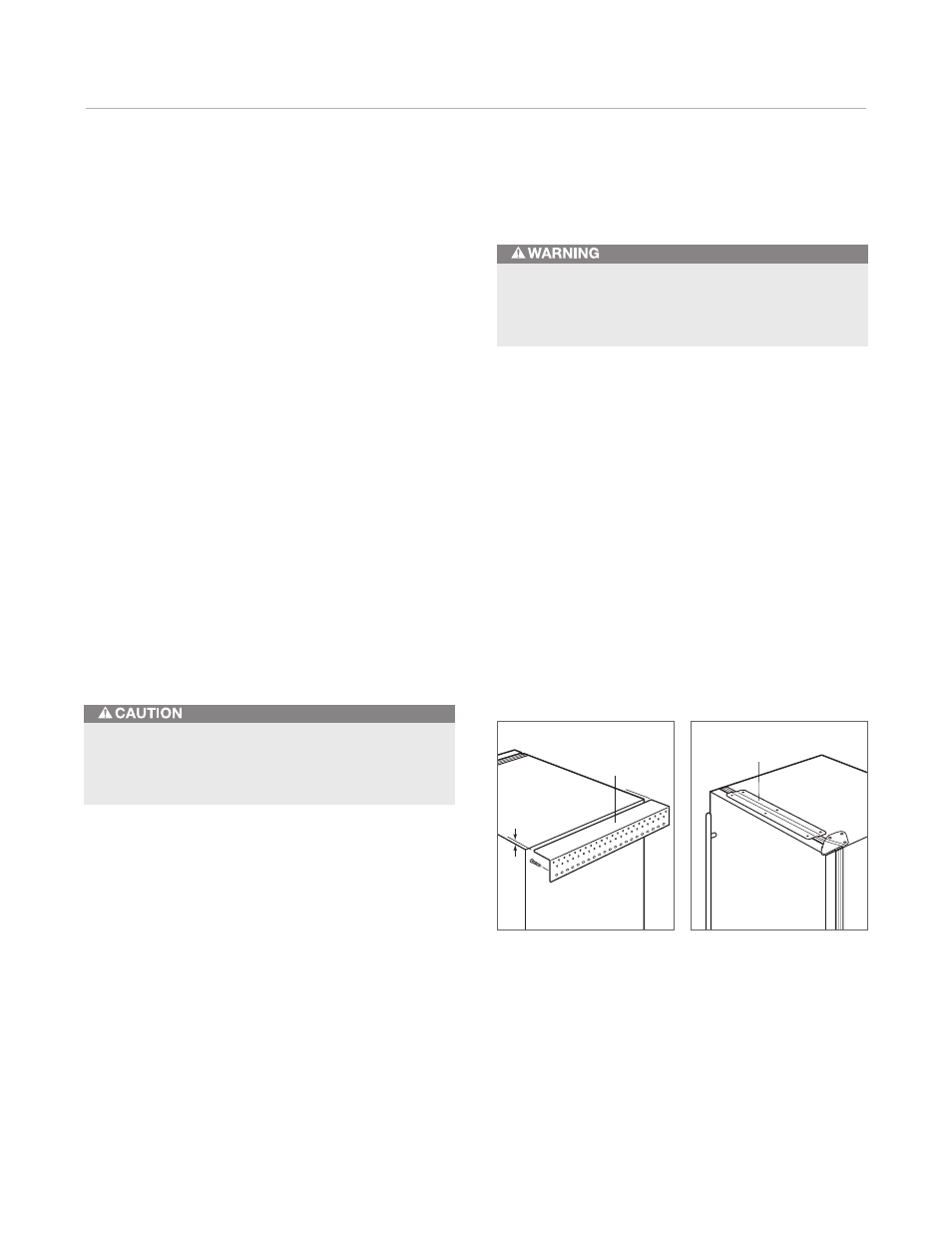

1

/

4

"

(6)

ANTI-TIP

BRACKET

Anti-tip bracket.

Countertop bracket.

COUNTERTOP

BRACKET
