Installation
The MVP841 can be placed upright on a table or shelf,
standing on its four feet. It also can be custom installed in a
piece of furniture or cabinet of your choice. The required
panel cutout, ventilation cutout and unit dimensions are
shown.
Always provide adequate ventilation for your MVP841.
Cool operation ensures the longest possible operating life
for any electronic instrument. Do not install the MVP841
directly above a heat generating component such as a high
powered amplifier. If all the components are installed in a
single cabinet,
a quiet run-
ning ventila-
tion fan can be
a definite asset
in maintaining
all the system
components at
the coolest
possible oper-
ating tempera-
ture.
A custom
cabinet instal-
lation should
provide the
following
minimum
spacing di-
mensions for
cool operation.
Allow at least
2 inches (5.08
cm) above the
top, 2 inches
(5.08cm) be-
low the bot-
tom and 1 inch
(2.54 cm) on
each side of
the DVD
Player, so that
airflow is not
obstructed.
Allow 15
inches (38.1
cm) depth be-
Installation
6"
15.24cm
4 - 7/8 "
12.38cm
17- 1/16 "
43.34cm

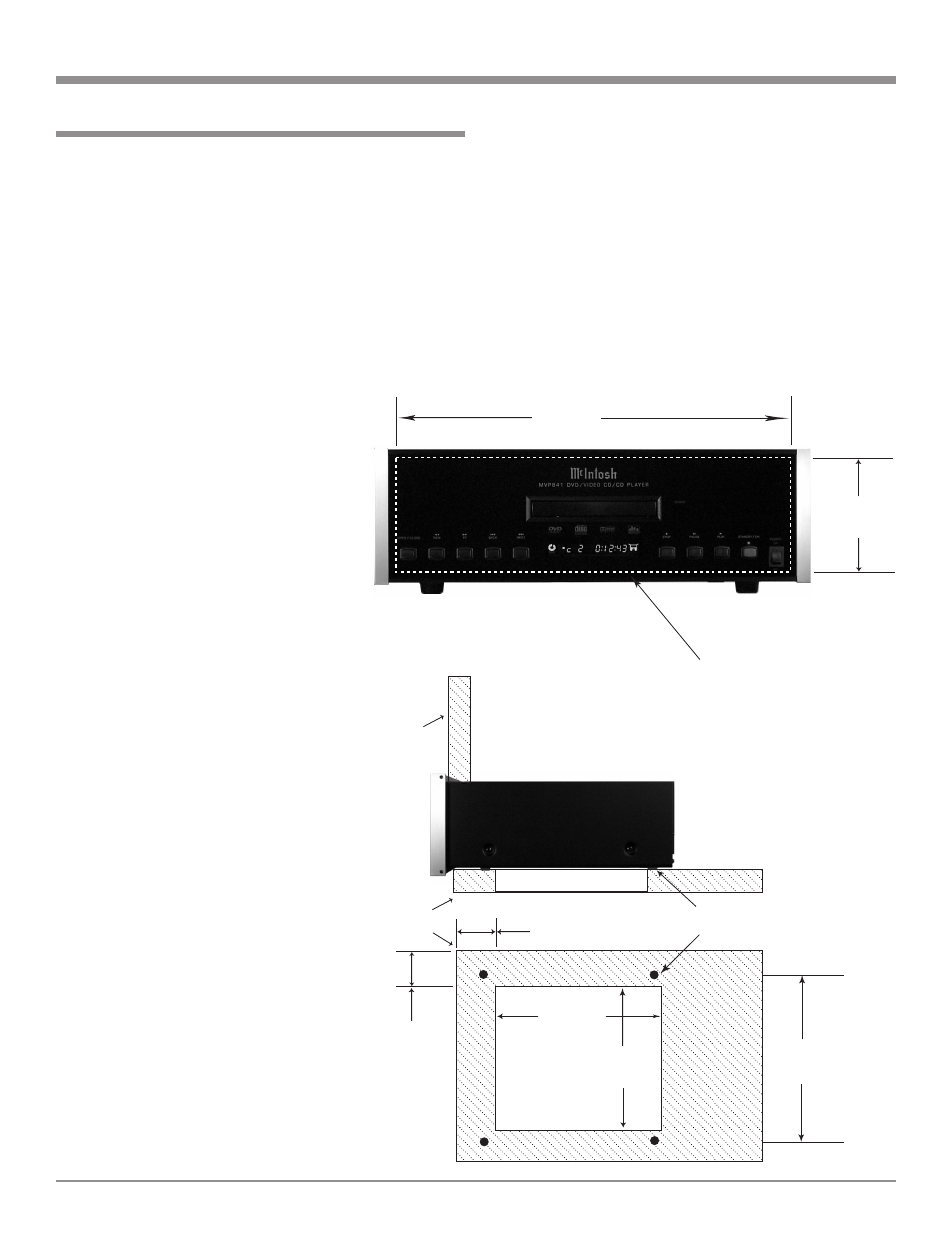

Cutout Opening for Custom Mounting
MVP841 Front Panel
Custom Cabinet Cutout
8- 1/2 "
21.6cm
13- 1/4 "
33.65cm
5"
12.7cm
Cutout Opening
for Ventilation
Cutout Opening for Ventilation
Support
Shelf
Cabinet
Front
Panel
Chassis
Spacers
MVP841 Side View
in Custom Cabinet
MVP841 Bottom View
in Custom Cabinet
3 -1/2 "
8.89cm
hind the front panel. Allow 1 inch (2.54 cm) in front of the
mounting panel for clearance. When the DVD/CD tray is
opened, the panel clearance required in front of mounting
panel is 6-3/4 inches (17.2cm). Be sure to cut out a ventila-
tion hole in the mounting shelf according to the dimensions
in the drawing.
