Sony IPELA NSR-100 - Manual (Page 31)

31
Chapter 2 Initial Configuring the System
16

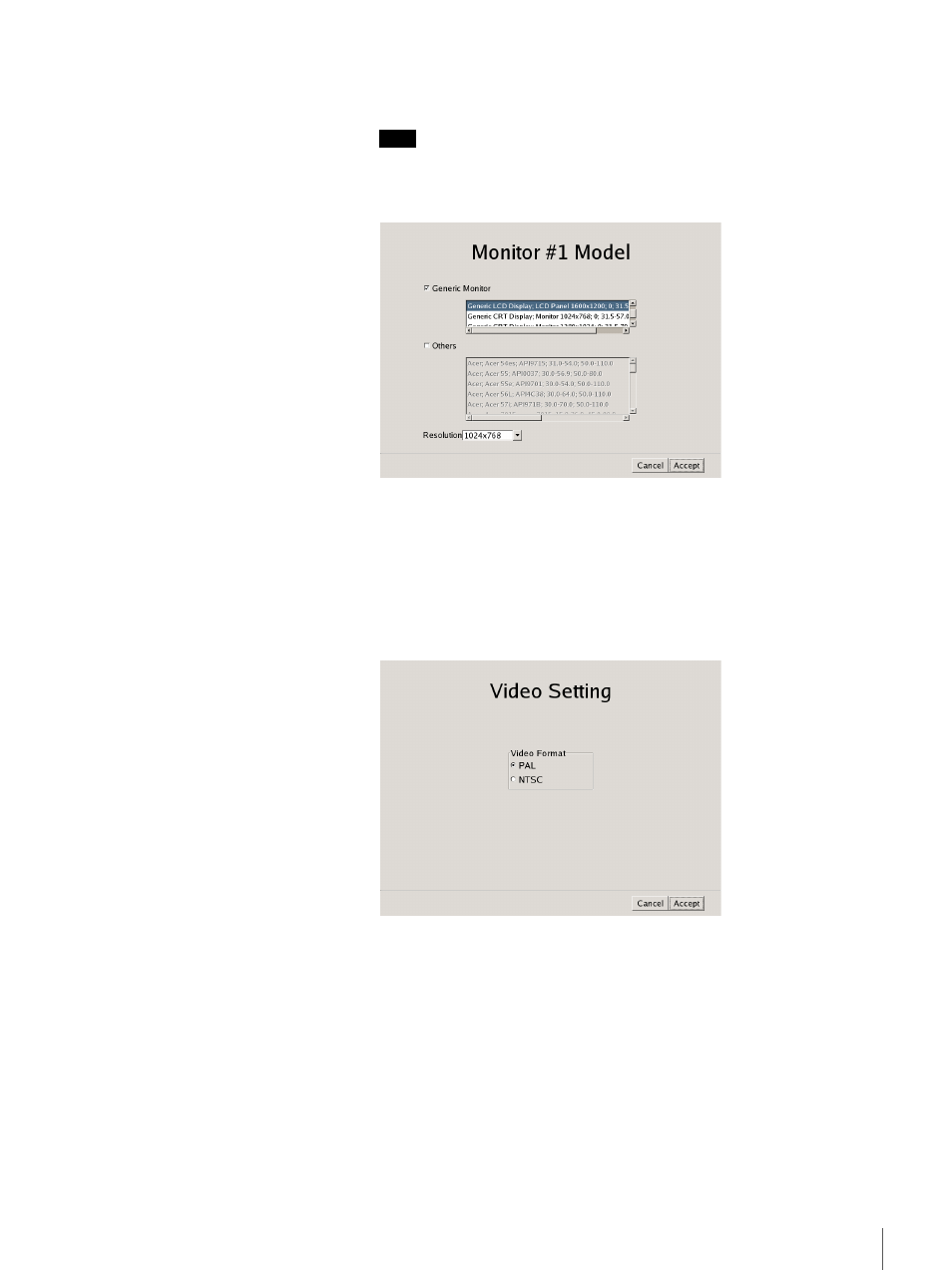

Select the model of monitor connected to the NSR and its resolution, and
then click [Accept].
Note
The default setting for monitors is as follows.
Generic LCD Display; LCD Panel 1600x1200; 31.5-90;60
Resolution 1024×768
When you click [Accept], the [Setup Menu] screen returns.
17
When using the NSR-100/50, select [Video], and then click [Select].
The [Video Setting] screen appears.
18
Select the [PAL] or [NTSC] video output format, and then click [Accept].
(Only the NSR-100/50)
When you click [Accept], the [Setup Menu] screen returns.
19
Select the [Host Name], and then click [Select].
The [Host Name] screen appears.
20
Enter the host name and the domain name of the NSR, and then click
[Accept].
