INTRODUCTION
– 6 –

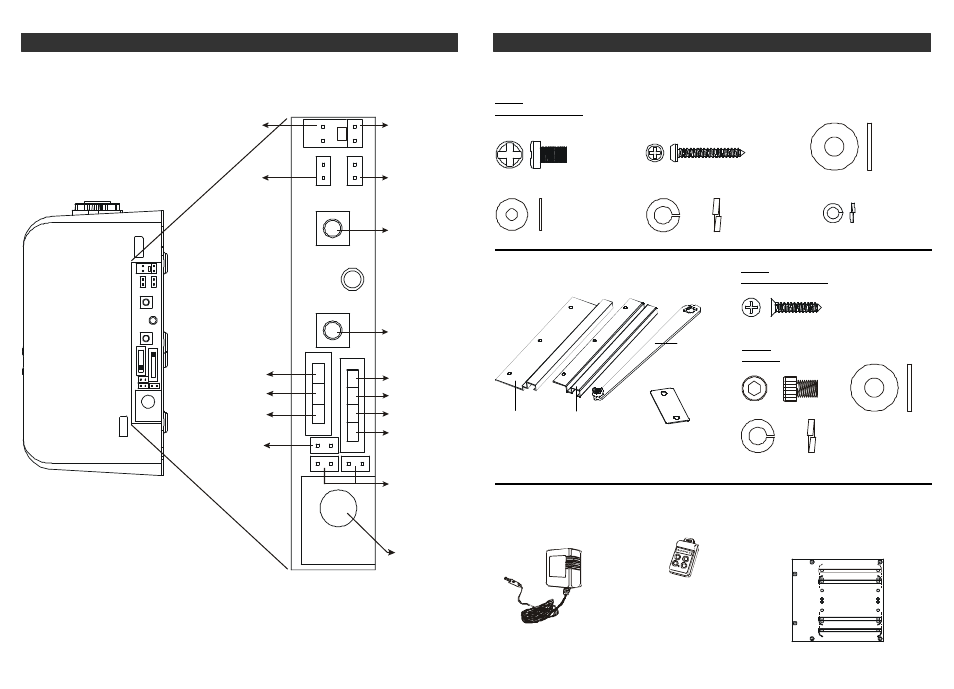

Box 3 - Slider Bracket & Accessories
Box 4 - Transformer Box 5 - Transmitter You will also find the following:
- User’s Instructions
- Quick Guide
- Mounting Plate
IN-SWING RIGHT
IN -S WIN G L EF T
OUT-SWING RIGHT
OU T-S WIN G L EF T
Arm
Assembly
Outswing
Slider Bracket Inswing
Slider Bracket
Box 2 - Electromagnetic Lock & Accessories (Only available for Model DM-100)
Solid Strike Plate
x1
BAG F
Electromagnetic Lock
x1
x1
x1 x2
x2 x2
BAG A
Slider bracket screws
x3
BAG D
Door Arm
x1 x1
x1
DOOR OPENER CONNECTIONS / SETTINGS
T2
Connect
-Enable external power
supply for electromag-
netic lock
Disconnect
-Disable external power
supply for electromag-
netic lock
T4
Connect
-Increase closing force
Disconnect
-Normal closing force
Door setting button
T1
Connect to
- Electromagnetic lock
- Electric strike
T3
Push
button
Learn button
In Swing Left mounting
Out Swing Right mounting
Out Swing Left mounting
In Swing Right mounting
Timer mode
Open / Close mode
Toggle mode
J1
Disconnect
- Electromagnetic lock
Connect
- Electric strike
J2 & J3
Connect
- Internal power for
electromagnetic lock
Disconnect
- External power for
electromagnetic lock
Adapter Socket
