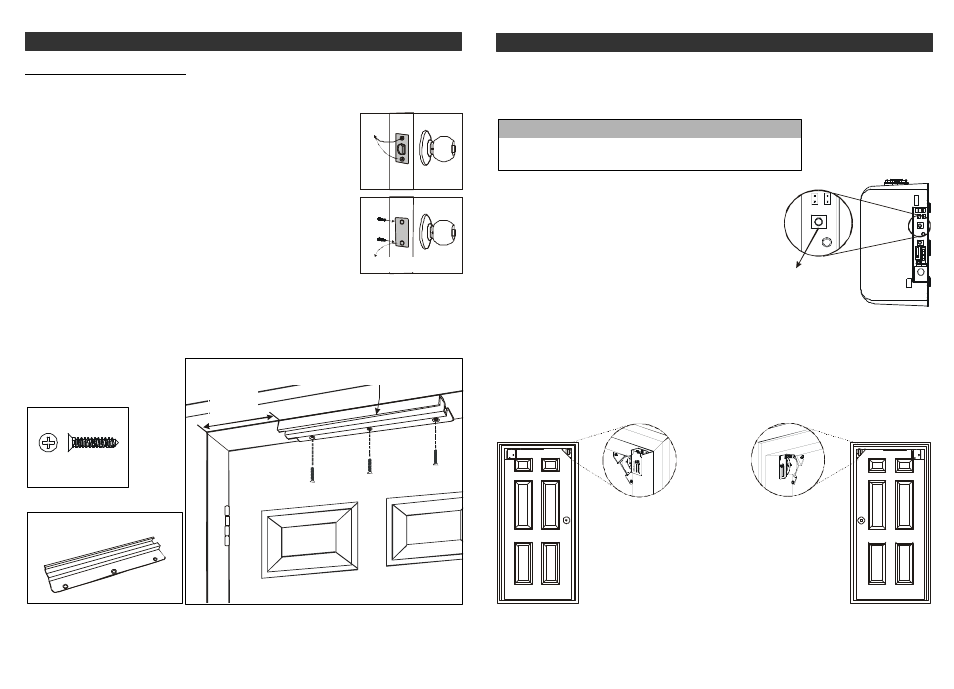

Out-Swing Left and Out-Swing Right
1. Disable the existing latch bolt
(If you are using electric strike instead of electromagnetic lock, please omit this
step and proceed to step 2. Refer to the user's instructions of the electric strike on
how to install it on the door frame.)
(Optional electric strike can be purchased from Skylink)
1.1 In order for the swing door operator to work properly, the function of the existing
latch bolt must be disabled. This can be done by replacing the strike plate.
1.2 Remove 2 screws on the strike plate.
1.3 Place the solid strike plate over the existing one, so the latch bolt cannot be
extended.
1.4 Tighten the solid strike plate with the same screws.
2. Mounting the Slider Bracket
2.1 For out-swing doors, use the “Out-Swing” slider bracket, and it should be
positioned on the inside part of the door and against underside of the door
jamb when the door is closed.
2.2 Ensure the edge of the slider bracket is 7-1/2" (Approx. 190mm) from the edge
of the door jamb (the edge with the door hinge).
2.3 Secure the slider bracket with 3 slide bracket screws provided.
INSTALLATION - OUT SWING
Note: Out-Swing right door installation shown.
Out-Swing Slider Bracket
x3
Actual size
Secure the solid strike
plate by screws
Remove
2 screws
Out-Swing
Slider bracket
7.5in (190mm)
away from the
door frame
– 22 –
INSTALLATION - OUT SWING
NOTE
Before proceeding to the following steps, ensure you have cleared the
path so the door can be opened and closed without hitting any obstacle.
8. Mounting the electromagnetic lock (For Model DM-100 only)
(If electric strike is used, please omit this section.)
8.1 The electromagnetic lock is energized when the door is fully closed to provide additional security and privacy.
The h olding force of the electromagnetic lock is approx. 100lb (45kg). For out-swing right, the electromagnetic lock
should be mounted on the upper left corner of the door (Inside part). For out-swing left, the electromagnetic lock
should be mounted on the upper right corner of the door (Inside part). See diagram below shows the location and
configuration after the lock has been installed.
Note: Out-Swing
right door installa-
tion shown. Note: Out-Swing left
door installation
shown.
T O D O R O T M TODOR O T M
Door Setting
Button (red)
7.1 Plug in the power adapter to the operator, the other end should
be plugged into an electrical outlet. Red LED should be on
indicating power is plugged in.
7.2 Press and hold the “Door Setting” button (red color button) for 10
seconds, buzzer will start to beep one at a time, then a continu-
ous beep. Release the button when the buzzer emits a long
continuous beep.
7.3 The door operator will try to open the door all the way until it hits
the door stopper, then it will close all the way until it is fully
closed. During this travel limit setup procedure, do not interrupt
the door by blocking it. Otherwise, it will affect the normal
operation.
7. Program the OPEN and CLOSE travel limits
The door opener will automatically detect the open and close travel limited. It is capable to detect the fully open and
fully closed positions. Follow the procedures below to set the travel limits.
