INSTALLATION - IN SWING

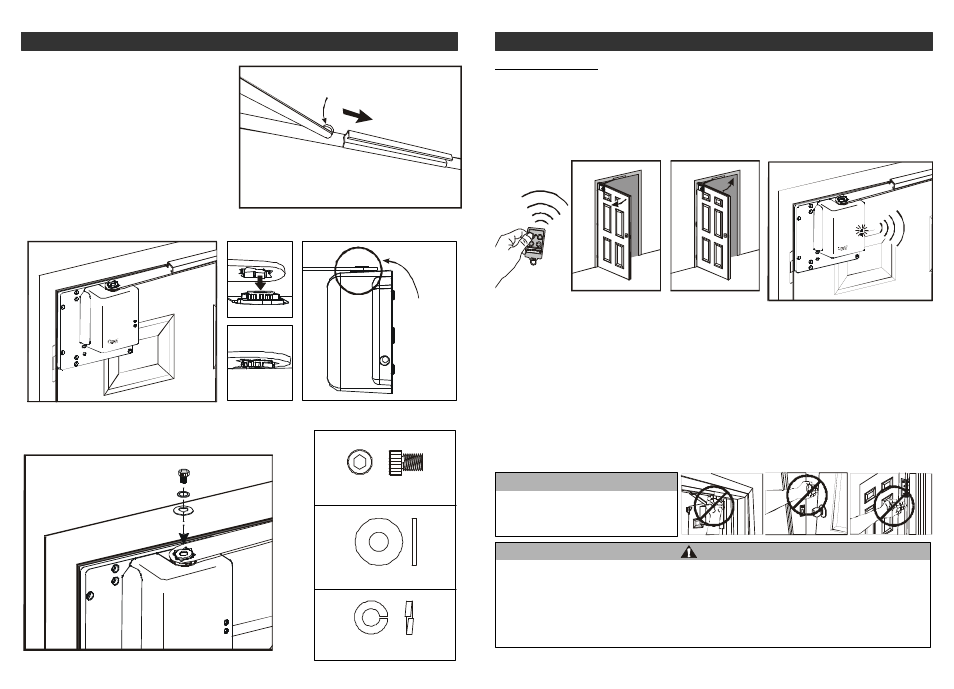

6. Attach the door arm assembly on the operator
6.1 The door should remain at the fully closed
position.
6.2 Slide one end of the arm assembly (the end with
the slider) into the slider bracket.
6.3 Place the other end of the arm assembly on top
of the operator motor shaft. You may notice the
arm assembly coupling is not fully seated into
the slots of the operator motor shaft. In order for
the arm assembly to seat fully into the slots of the
operator motor shaft, open the door slowly by
about 5 degrees from the fully closed position.
You should visually check if the arm assembly is
fully seated into all the slots.
Arm is seated
fully into the
shaft.
Slider
6.4 Tighten the arm assembly to the operator motor shaft by a
screw, spring washer, and a flat washer.
x1
x1
x1
Actual size
– 26 –
OPERATION
Remote Control Operation
The remote control can be used to open and close your door. The remote has been programmed at the factory to
the swing door opener so no further programming is necessary. There are 4 buttons on the remote, button 1 is
programmed so it can perform the door opening and closing operations.
When the door is opened, pressing remote button 1 will close the door.
When the door is closed, pressing the remote button 1 will open the door.
When the door opener is operating, the orange LED will flash and the buzzer will beep.
OPEN CLOSE
(For Model DM-100) The electromagnetic lock will be energized when the door is in the fully closed position. Once
the lock is energized, the door cannot be opened manually. If you do not want the door to be locked, you may
disconnect the cable from the electromagnetic lock to the door opener.
Reminder
·
If the door cannot be closed all the way due to friction, you may apply lubricant to the hinges.
· If weather stripping is too thick or hard, it may affect the operation of the door opener. Replace the weather
stripping with something thinner and softer so the door can close properly.
· Door stopper should be installed in order to limit the door opening to max.100 degrees.
If you would like to stop the door when it is either opening or closing, you can press the remote button 1 again, it will
stop the operator therefore stopping the door from opening / closing.
If the door operator does not respond to the remote control, program the remote control again, refer to page 28
"Learn remote controls" to program the remote control again.
NOTE
When the door reaches the near fully closed
position, the closing speed will decrease in
order to reduce the risk of injury.
WARNING
· Only activate door when it can be seen clearly, and there are no obstructions to door travel.
· Always keep door in sight until completely closed.
· Moving doors can cause serious injury or death. Stay out from moving doors.
· Do not remove the head cover from the door opener.
· Do not disassemble the door opener.
· The electrical power to the door opener MUST BE disconnected while making electrical connections.
· SAVE THESE INSTRUCTIONS.
Beep
Beep
