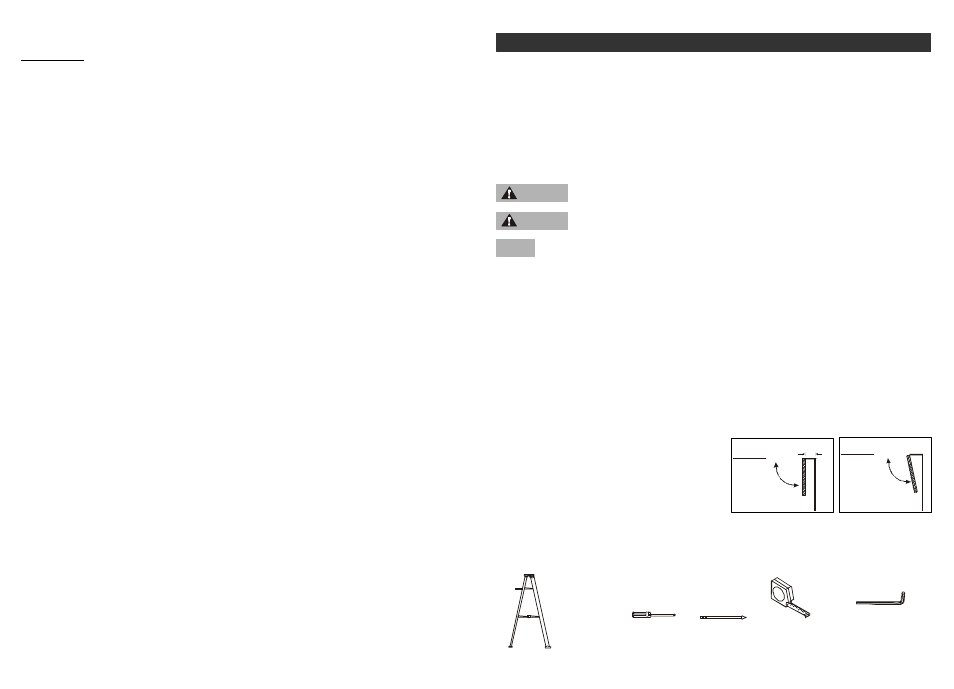

– 4 –
INTRODUCTION
Overview
Congratulations on your purchase of a Skylink Swing Door Opener. This swing door opener can automatically
open / close any swinging doors with a press of a remote. An electromagnetic lock can also be installed for
security and privacy purposes. During power failure, the door can still be opened or closed manually.
An obstacle detection feature is built-in to all swing door openers, when an obstacle is detected in the path of an
opening / closing door, the door opener will stop to avoid serious injury.
The user’s instructions will guide you through the whole setup procedure as well as all the programming instruc-
tions. Please read and follow all safety rules and operating instructions before first use of this product.
Safety Information
When you see this Warning symbol and word, that means severe injury can result from failure
to follow instructions.
When you see this Caution symbol and word, that means the property damage or injury can
result from failure to follow instructions.
This word is used to indicate the importance of the specified procedure(s). Follow them closely or
otherwise the unit may not function properly.
Before installation
Please ensure:
· The door is a solid wood door, or hollow-core wood, metal, or fiberglass door.
· The door is less than 90lbs (approx. 41kg)
· The door is less than 36” wide (approx. 0.91m)
· The clearance between the door (top edge) and door jamb is at least 1/16” (approx. 1.5mm). If the
clearance is less than 1/16", you may use a bench chisel to chop part of the door jamb where the slider
bracket is mounted, so the clearance of this portion is more than 1/16".
· An electrical outlet is within 15ft (approx. 4.5m) from the door opener. If there is no electrical outlet nearby,
you may use an AC extension cord.
· Spring hinge closer may affect the operation of the swing door opener. If possible, adjust the spring
hinge so that the torsion is released, or replace the spring hinge to a regular hinge.
· Door closer should not be installed.
· The door opens / closes smoothly. If the door doesn’t open smoothly, lubrication may be needed on the
door hinges.
· When the door is in the fully opened position,
ensure there is enough space to mount the door
opener. It requires at least 3-1/2" (Approx. 85mm)
between the back of the door to the wall.
· Door stopper should be installed in order to limit
the door opening to max.100 degrees.
· If weather stripping is too thick or hard, it may
affect the operation of the door opener. Replace
the weather stripping with something thinner and
softer so the door can close properly.
Tools Required
To install the swing door opener, you will need the following tools.
WARNING
CAUTION
NOTE
Stepladder Phillips screwdriver Pencil Tape Measure
Allen Key
Min. 3-1/2"
Door fully
open Max. 100º
– 35 –
FCC information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) This device must accept any interference received, including interference that may cause
undesired operation.
WARNING:
Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful inter-ference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment dose cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
