– 16 –

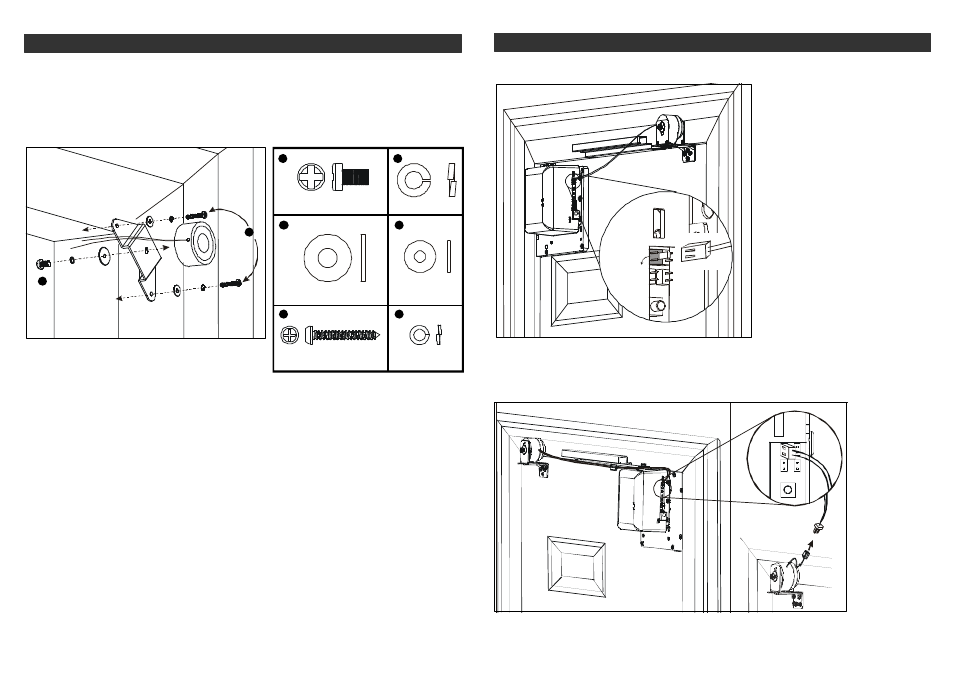

INSTALLATION - IN SWING INSTALLATION - IN SWING
If the wire is too long, you may use a cable
tie or tape to secure the wire on the door.
Terminal T1
– 23 –
INSTALLATION - OUT SWING
8.2 Secure the lock to the bracket with screw.
8.3 Close the door fully, mount the lock with the bracket to the door.
8.4 When securing the electromagnetic lock, position the wire towards the operator, which will be mounted on the
upper left side of the door for out-swing right door, or upper right side of the door for out-swing left door.
x1 x1
x1 x2
x2 x2
Actual size
1 1
1 2
2
2
1
2
For Inswing Left, connect the lock cable to the 2 most up left jumpers on the door opener. (DM-100 only)
